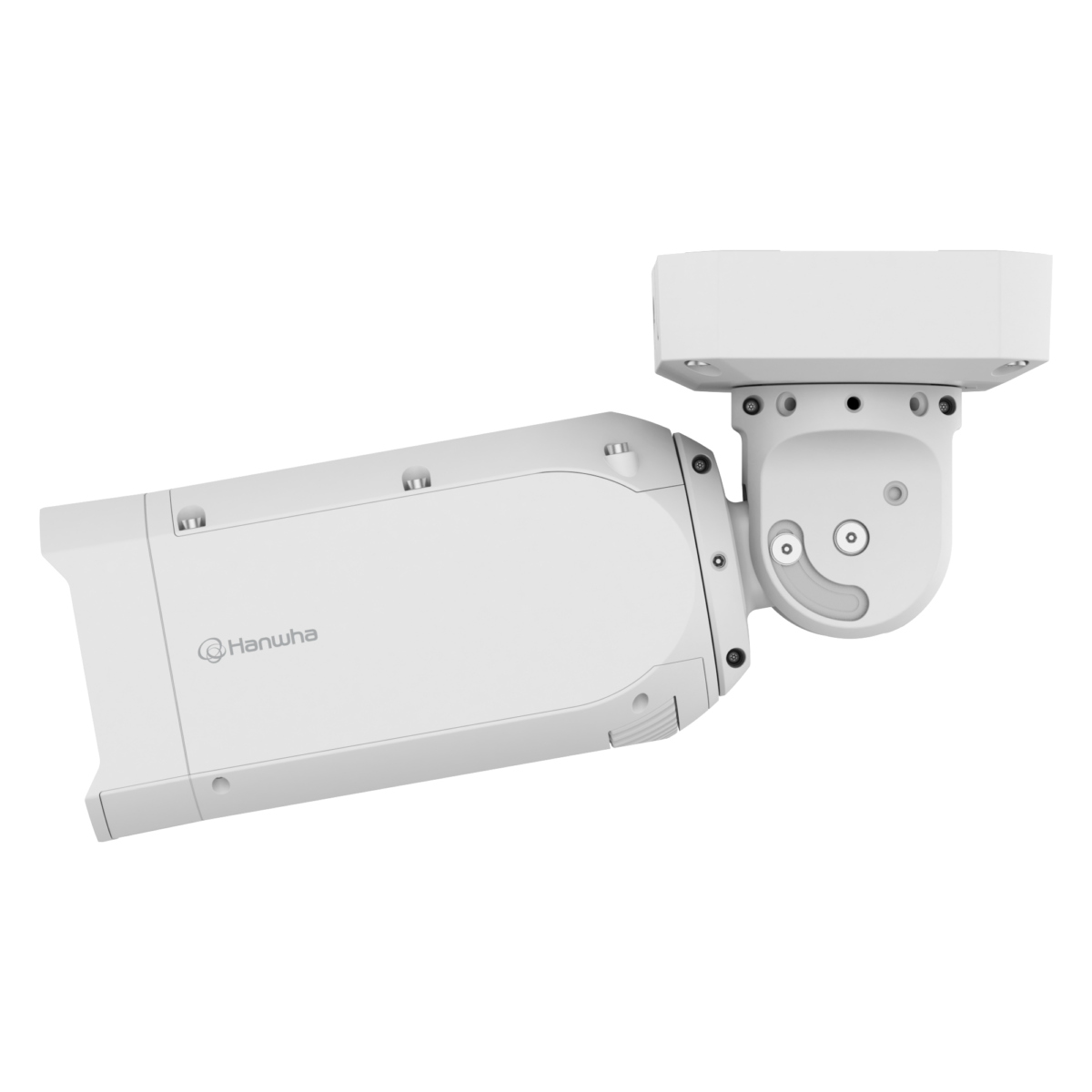

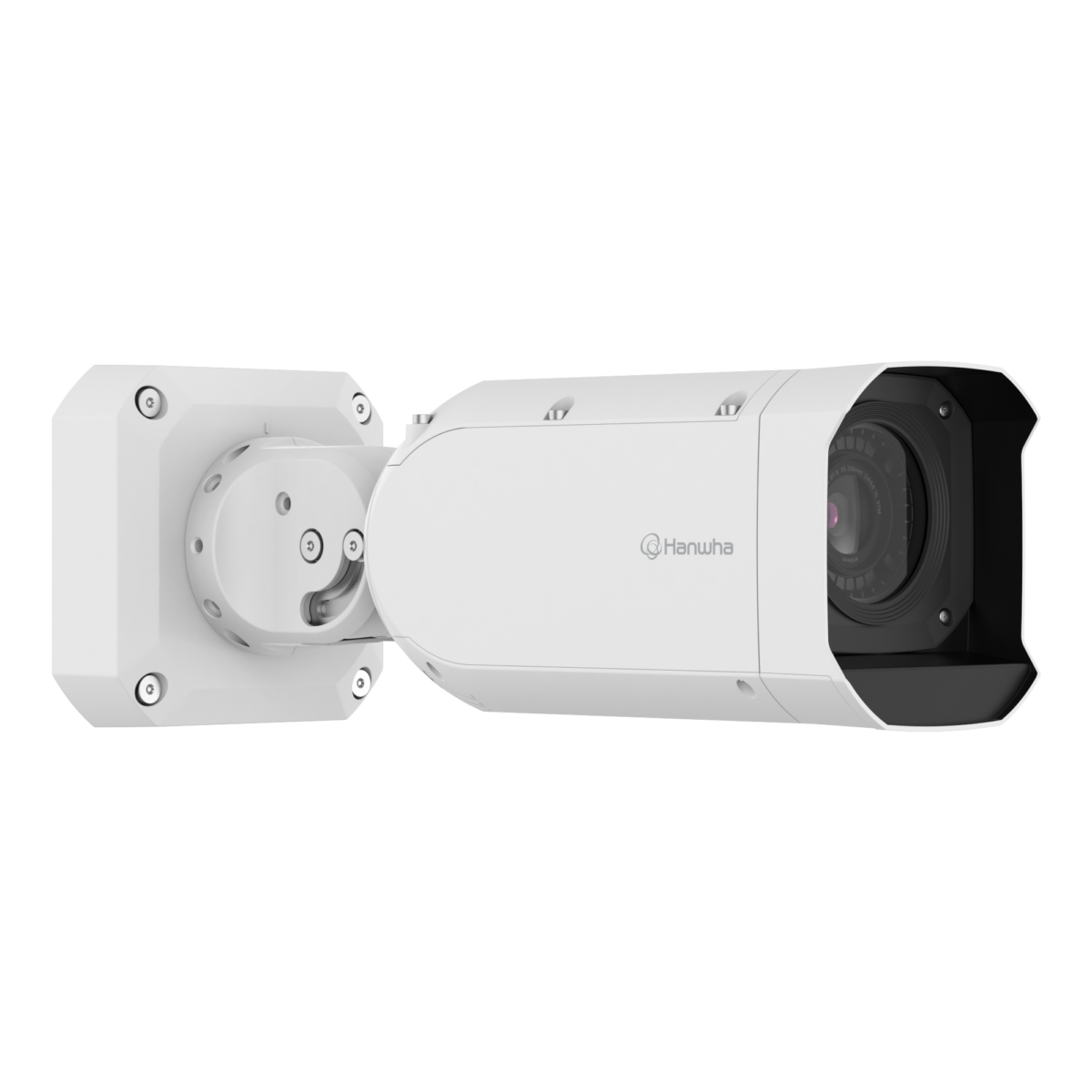

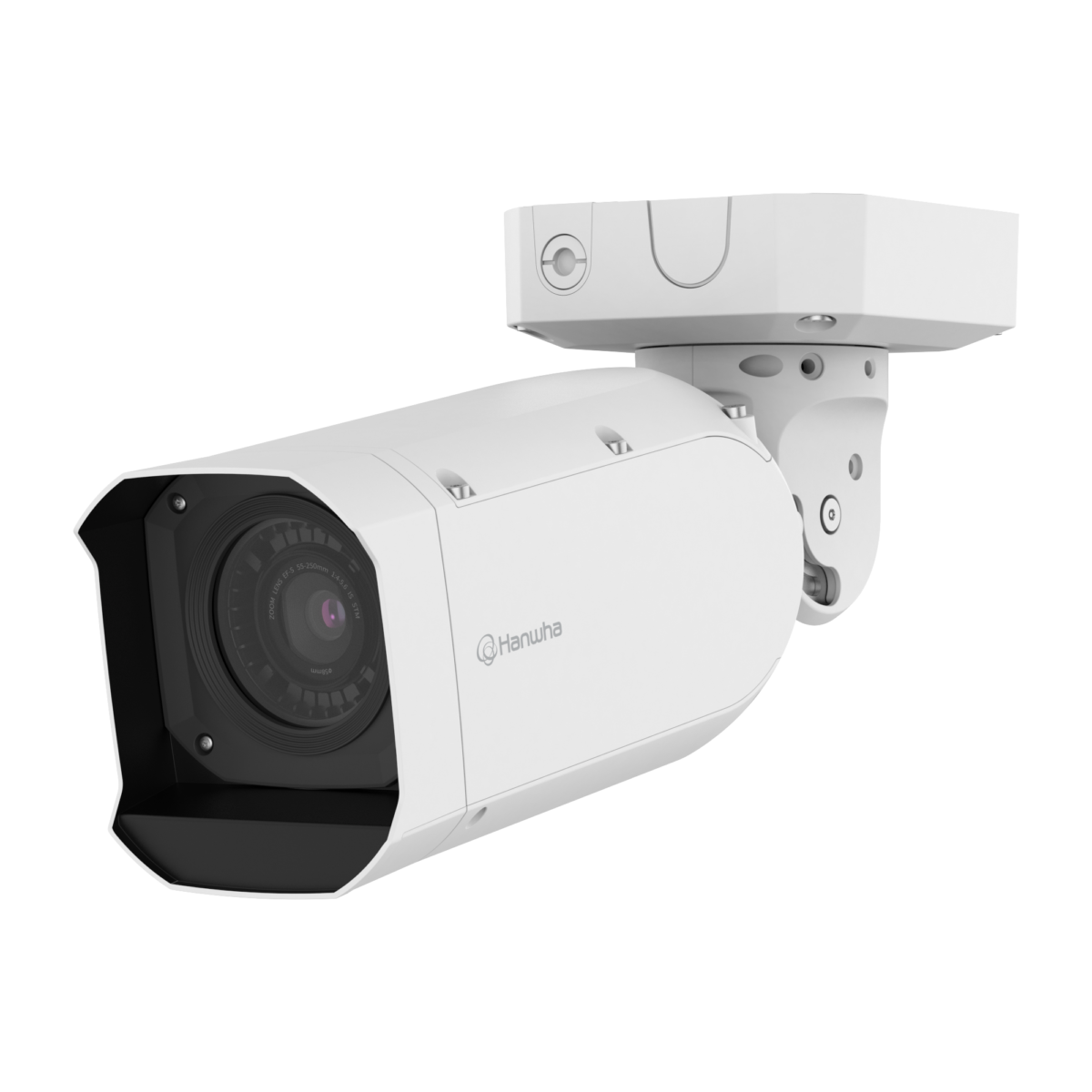

Hanwha - TNO-A26081 - 26MP AI Bullet Camera
Part number:
TNO-A26081
Price:

26MP AI Bullet Camera



Crystal-clear video coverage

Secure large areas and capture the smallest details with the new ultra-high resolution AI camera from Hanwha Vision. With stunning 26MP resolution at 30fps this camera is ideal for critical surveillance locations.



Precision for every application

Strengthen video security for a variety of use cases with the ultra-high resolution AI camera from Hanwha Vision.



Reduce false alarms with AI-based object detection

Set up virtual areas and lines to receive alerts when objects classified as people or vehicles enter, exit, intrude or loiter in designated locations.



Searchable object attributes

Enhance forensic search efficiency with AI-generated metadata on detected objects that can be easily found in your VMS.



Custom AI-based alerts

Trigger automated event actions and notifications when AI-detected objects of interest, such as people or vehicles, cross a virtual line or intrude/loiter in virtual areas.



Vertical-specific solutions

The ultra-high resolution AI camera includes licenses for Hanwha Vision AI packs to tailor your analytics to your industry.



Traffic AI Pack

Turn your cameras into sophisticated traffic management systems that provide data and alerts on traffic congestion, pedestrian presence, stopped vehicles, and more.



Factory & Safety AI Pack

Access automatic detection of forklifts, slip & fall incidents, fire and more to protect workers from potential hazards and accidents.



Optimized image quality with reduced bandwidth

Hanwha Vision cameras use sophisticated AI technology to offer better image quality in low light conditions while decreasing bandwidth and storage requirements.



Adjustable field-of-view

55~250mm varifocal lens provides users with the flexibility to capture wide areas for better situational awareness or focus on more distant subjects.



Superior imaging.
Day or night.

The high-sensitivity CMOS sensor captures crystal-clear images with excellent color reproduction in daytime conditions and low noise, high contrast images in low light situations making the ultra-high resolution camera ideal for 24/7 surveillance.



Features:

  • 26MP Network AI Bullet Camera
  • 28.3mm APS CMOS image sensor
  • Max. 30fps@26MP
  • 0.2lux@F4.0 (Color)
  • 55~250mm (4.54x) manual varifocal lens
  • H.265, H.264, MJPEG codec
  • WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
  • Installed Video Analytics based on AI [Object detection and classification (Person, Face, Vehicle, License plate), Attribute, BestShot] People counting, Vehicle counting
  • Queue management
  • Heatmap
  • Supported Video Analytics based on AI: Traffic Pack
  • Factory Pack (no license key required)
  • 2-way audio
  • Sound detection and classification
  • TPM2 with FIPS 140-3 level2
  • Secure boot
  • Verify firmware forgery
  • Modular structure for easy installation​
  • 2x micro SD card (512GB x2)
  • Operating temperature: -40°C~+50°C(-40°F ~ +122°F)
  • Power: HPoE (802.3bt type3, class6)/12VDC
  • Metal shielded RJ-45
  • SFP slot
  • IP66/IP67, IK10, NEMA4X
Video
Imaging DeviceDiagonal 28.3mm 1.8" CMOS
Resolution

6240x4160( WiseAI off 30fps, WiseAI on 20fps), 3840x2160, 2880x1920, 1920x1280, 1600x1200,

1440x960 , 1280x800, 1024x768, 1280x720, 720x480,  640x480

Max. Framerate

H.265/H.264: Max. 30fps

MJPEG: Max. 30fps(@26MP Max. 1fps)

Min. IlluminationColor : 0.2Lux(F4.0, 1/30sec) B/W : 0.02Lux(F4.0, 1/30sec)
Video OutUSB: Micro USB Type C, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)55 ~250mm(4.54x) manual varifocal
Max. Aperture RatioF4(Wide)~F5.6(Tele)
Angular Field of View

H: 24°(Wide)~5.4°(Tele)

V: 16°(Wide)~3.6°(Tele)

D: 29°(Wide)~6.5°(Tele)

Min. Object Distance0.85 m (2.8ft )
Focus ControlSimple focus
Lens TypeCanon EF-S 55~250mm F4-5.6 IS STM
Mount TypeCanon EF-S
Operational
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, SSDR
Digital Noise ReductionSSNRⅤ, WiseNRⅡ(Based on AI engine)
Motion Detection8 ea, 8point Polygonal zones
Privacy Masking

6 ea, Rectangular

-  Color: Gray/Black/White

Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (1/5~1/12,000sec) Prefer shutter control(Based on AI engine)
Video RotationFlip, Mirror, Hallway view(90°/270°)
Analytics

Classified object type : Person/Face/Vehicle/License plate   Attributes : Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type:car/bus/truck/motorcycle/bicycle and Color) Support Bestshot per object

Analytics events based on AI engine

-   Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Motion detection

Analytics events - Defocus detection, Tampering, Audio detection, Virtual area(Appear/Disappear)

*Some of the video analytics only works with people and vehicle detection

Alarm I/O2  configurable I/O ports
Alarm Events

When alarm trigger occurred

  • File upload(image/video clip): e-mail/FTP/SFTP
  • Notification: e-mail
  • Recording: SD/SDHC/SDXC or NAS recording at event triggers -  Alarm output
  • Handover: PTZ preset, send message by HTTP/HTTPS/TCP
  • Audio clip playback
  • MQTT: publication
Audio InSelectable(mic in/line in)
Audio OutLine out, Max.output level: 1Vrms
Network
EthernetMetal shielded RJ-45(10/100/1000 BASE-T), SFP slot(100/1000Mbps)
Video CompressionH.265/H.264: Main/High, MJPEG
Audio Compression

G.711 u-law /G.726 Selectable

G.726(ADPCM) 8KHz, G.711 8KHz

G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps

AAC-LC: 48Kbps at 16KHz

Smart CodecManual(5ea area), WiseStreamⅢ(Based on AI engine)
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
Streaming

Unicast(20 users) / Multicast

Multiple streaming(Up to 10 profiles)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP,

SFTP, SMTP, SMTPS ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT

Application Programming InterfaceONVIF Profile S/G/T/M SUNAPI(HTTP API)
Security
OS / Firmware ProtectEncrypted Firmware, Secure boot, Signed Firmware
User authenticationDigest Authenticaton, Prevent brute-force attack
Network authenticationIEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS (WebSocket Secure), SRTP
Access ControlIP-based access control, MAC-based access control
Data ProtectEncryption Credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate (Hanwha Techwin Root CA)
Secure StorageTPM(Trusted platform module), SDcard partition encrypt
Security CertificateTPM with FIPS 140-3 level 3
General
Edge StorageMicro SD/SDHC/SDXC 2slot 1TB
Memory8 GB RAM, 16GB EMMC
Environmental & Electrical
Operating Temperature / Humidity

-40 °C~+55°C (-40°F~+131°F) / 0~100% RH(condensing )

Humidity control /w Air vent

Storage Temperature / Humidity-50 °C~+60°C(-58°F~+140°F) / 0~95% RH(non-condensing )
Input VoltagePoE++(IEEE802.3bt type3, Class6, Injector not included), DC12V
Power ConsumptionPoE++ : Max 44.3W, Typical 24.9W 12 VDC : Max 35.4W, Typical 19.6W
Mechanical
Color / MaterialWhite / Aluminum, PC(Polycarbonate)
RAL CodeRAL9003
Product Dimensions / Weight193.5x193.5x532mm(7.62"x7.62 "x20.94"), 8100g(17.86lb )
Certifications & Standards
EMC

FCC 47 CFR 15 Subpart B Class A

ICES-3(A)/NMB-3(A)

CE/UKCA

-  EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN   61000-3-3

RCM AS/NZS CISPR 32 Class A

KS C 9832 Class A , KS C 9835

Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1IEC/EN 62471
Environment

IEC/EN 63000

IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10

NEMA 250 type 4X

DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 587.1m(1,926.3ft) / Tele: 2,646.4m(8,682.3ft)
Observe (63PPM/ 19PPF)Wide: 234.9m(770.5ft) / Tele: 1,058.6m(3,472.9ft)
Recognize (125PPM/ 38PPF)Wide: 117.4m(385.3ft) / Tele: 529.3m(1,736.5ft)
Identify (250PPM/ 76PPF)Wide: 58.7m(192.6ft) / Tele: 264.6m(868.2ft)
