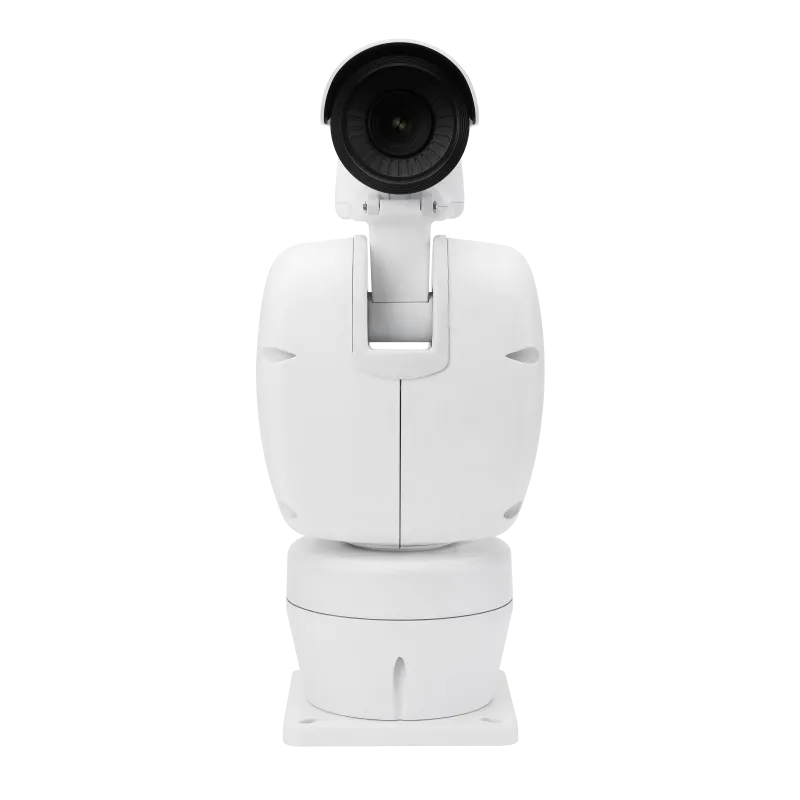

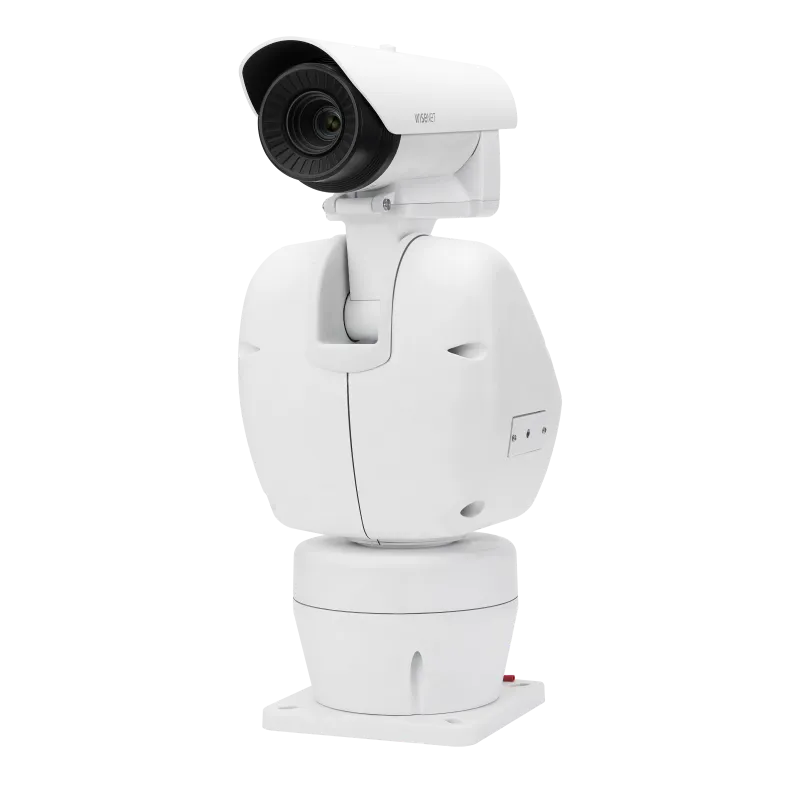

Wisenet T network outdoor thermal positioning camera (uncooled), 640x480 @ 30fps, 19mm fixed focal lens (32°), pan: 360° endless, Tilt: -90°~ 40°, triple codec H.265/H.264/MJPEG with Wisestream II, built-in SD card slot (1x256GB), advanced video analytics and sound classification, PTZ handover, open platform, DIS(Gyro), integrated back box, IP66, IK10, 24VAC, white color This product is subject to the Thermal agreement.
Features:
- High resolution thermal VGA (640 x 480) resolution
- Built-in 19mm fixed lens
- 360˚ endless panning
- 30fps@all resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
- 2-way bi-directional audio & Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature -40°F ~ +140°F
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
| VIDEO | |
| Imaging Device | Uncooled Micro bolometer |
| Pixel Size | 17µm |
| Effective Pixels | 640x480 |
| NETD | 50mK |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480, for installation |
| LENS |
| Focal Length (Zoom Ratio) | 19mm fixed |
| Maximum Aperture Ratio | F1.0 |
| Angular Field of View | H : 32˚/ V : 24.3˚/ D : 39.2˚ |
| Minimum Object Distance | 11m |
| Focus Control | Fixed |
| Mount Type | Board-in type |
| PAN / TILT / ROTATE |
| Pan Range | 360˚ Endless |
| Pan Speed | 0.025°~ 120°/sec |
| Tilt Range | -90˚ ~ 40˚ |
| Tilt Speed | 0.025°~ 40°/sec |
| Sequence | Preset (300ea), Group (6ea) |
| Preset Accuracy | 0.3˚ |
| Azimuth | Yes (E / W / S / N / NE / NW / SE / SW) |
| NETWORK |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High , Motion JPEG |
| Resolution | 640x480, 640x360, 320x240 |
| Maximum Framerate | H.265/H.264 : Maximum 30fps at all resolutions / Motion JPEG : Maximum 30fps |
| Smart Codec | Manual Mode (area-based : 5EA) |
| WiseStream II | Support |
| Video Quality Adjustment | H.264 / H.265 : Target bitrate level control / MJPEG : Target bitrate level control |
| Bitrate Control Method | H.264 / H.265 : CBR or VBR / MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Audio Compression Format | G.711 u-law /G.726 Selectable G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 8/16/32/48KHz |
| Audio Communication | Bi-directional (2-Way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 users at unicast mode |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot (up to 256 GB) - Motion Images recorded in the micro SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage) Local PC for instant recording |
| Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform |
| Webpage Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Japanese, Chinese, Korean |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 - Supported Browsers: Google Chrome 63, Microsoft Edge 41, Microsoft Internet Explorer 11, Mozilla Firefox 57 (Windows 64-bit only), Apple Safari 11 (Mac OS X only) |
Central Management Software | Wisenet WAVE, SmartViewer, SSM |
| OPERATIONAL | |
Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Ingress Protection | IP66, NEMA 4X |
| Vandal Resistance | IK10 |
| MECHANICAL | |
| Color / Material | White / Aluminum |
| Dimension (WxHxD) | 219×528×335mm (8.62"x20.79"x13.19") |
| Weight | 11.7 kg (25.79lb) |
