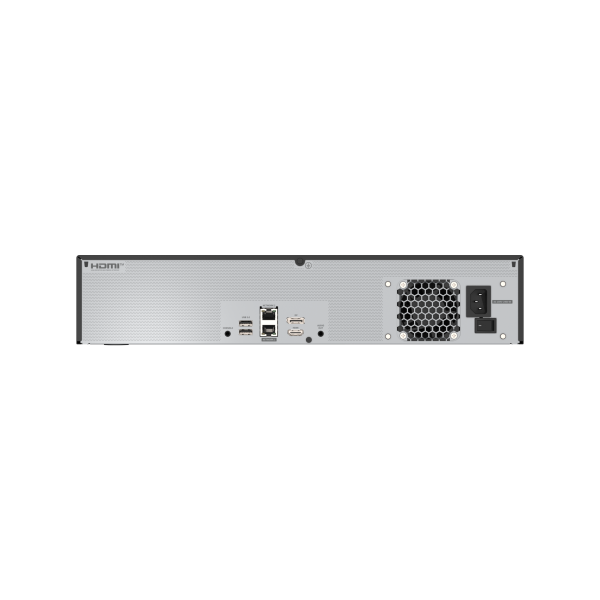

Hanwha - WRN-1632-6TB - 2U WAVE NVR (Intel based) with 4 Professional licenses, 6TB RAW
Part number:
WRN-1632-6TB
Price:
2U WAVE NVR (Intel based) with 4 Professional licenses, 6TB RAW, supports: 32 channels, Wisenet WAVE pre-installed, H.264/H.265/MJPEG, 4 fixed internal SATA HDDs (10TB max per HDD), Wisestream technology, HDMI/DP output, Dual GbE NICs
Features:
- Supported by Wave client, mobile and Cloud Sync
- Supports AI metadata
- 250 Mbps of recording throughput
- Supports up to 40TB internal storage
- HDMI/DP monitor outputs for configuration and basic monitoring
- Includes USB mouse and rack mount brackets
| Display | |
| Decoding | Local Display HDMI (1), DP (1) |
| Performance | |
| Operating System | Embedded Ubuntu 22.04 LTS |
| Record | Recording Bandwidth Max. 250Mbps |
| Storage | Supported HDD: Up to 10TB HDD Slot: SATA 4ea (Max. 40TB) |
| Interface | |
| Front | Indicator Power, Network, HDD1, HDD2, HDD3, HDD4 |
| HDMI | 1EA |
| DP | 1EA |
| Audio | Audio output |
| Ethernet | RJ-45 2ea (WAN, 1Gbps) |
| USB | Front USB 2.0(2), Rear USB 3.0(2) |
| Environmental | |
| CPU | Quad core |
| RAM | DDR4 8GB |
| OS HDD | eMMC 32GB |
| Operating Temperature | 0°C to +40°C (32℉to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | 80W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 440 x 89.8 x 428.4 mm |
| Weight | 5.47Kg |
