The WRT-P-3104MW server is a micro form factor Wisenet WAVE server designed to record up to 16 cameras. The server has a dedicated M.2 SSD drive for video storage and a separate M.2 SSD for the Windows 11 IoT Enterprise LTSC 2024 operating system to provide fast boot and load times.
This micro server offers unrivaled deployment flexibility, allowing for its small chassis to be deployed in any small business environment. An optional VESA mount allows the server to be inconspicuously mounted behind a monitor.
Each server cones with Wisenet WAVE VMS and includes 4 Professional licenses to ensure quick and easy deployment with minimum setup time.
Features:
SYSTEM | |
Video Management Software | Wisenet WAVE up to 64 channels |
Recording Bandwidth | Up to 470Mbps |
Included licenses | 4 x Wisenet WAVE Professional License |
OS Drive Bay | 1x 256GB M.2 SSD |
Data Drive Storage | 1x 1TB or 2TB M.2 SSD for Video Storage |
Network Interface | 1 x 1GbE RJ45 Ports |
Processor | 1 x Intel® Core™ i3 14th Generation |
Memory | 8GB DDR4 |
Operating System | Windows 11 IoT Enterprise LTSC 2024 |

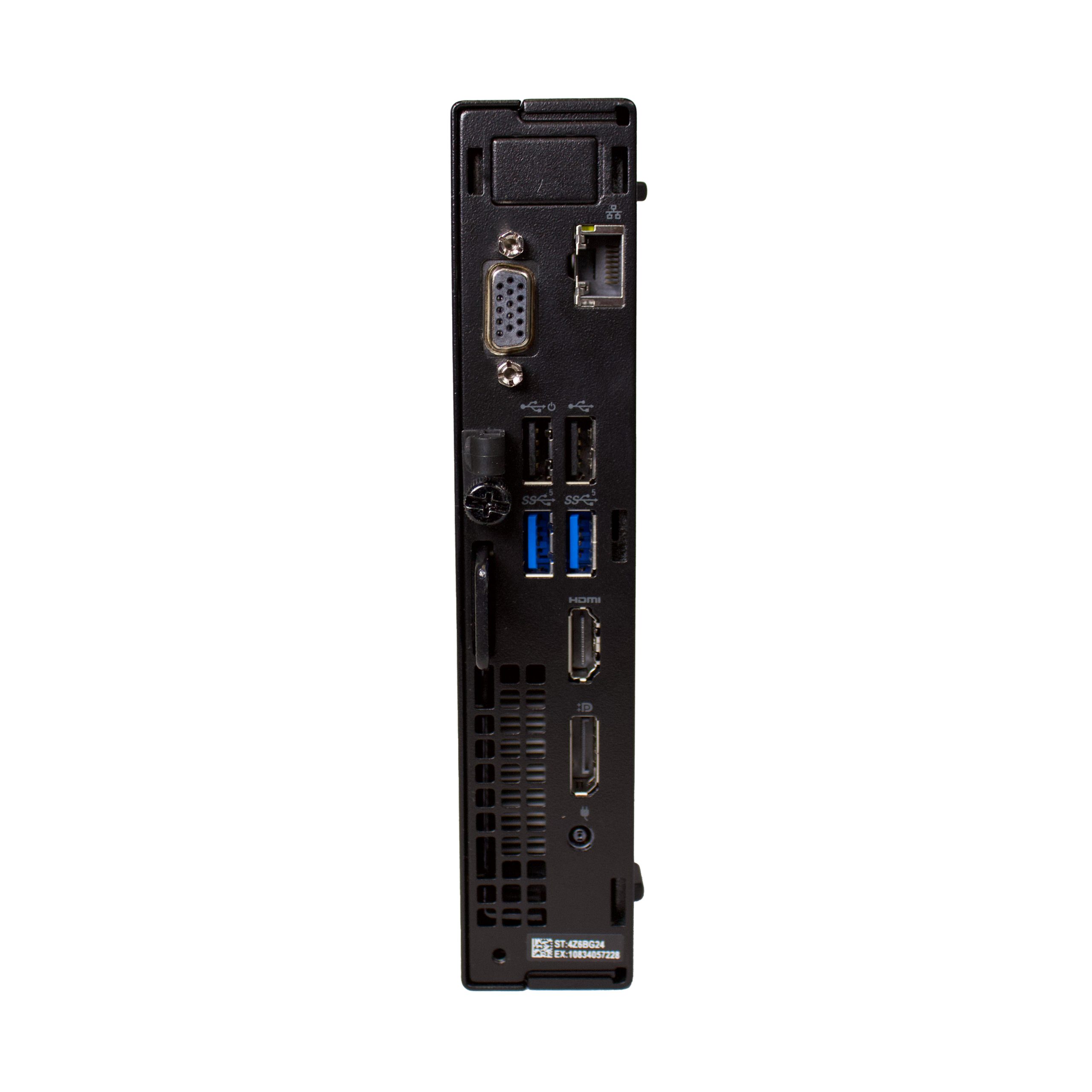

Video Outputs | 1x HDMI, 1x DP |
USB Ports | Rear: 2x USB 3.2 Gen 1, 2x USB 2.0; Front: 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-C |
Other Ports | 1x 3.5mm audio headset output/input |
Keyboard & Mouse | Included |
MECHANICAL / ELECTRICAL / ENVIRONMENTAL | ||
Mechanical | Form Factor | Micro form factor server |
Color / Material | Black / Metal & Plastic | |
Dimensions (WxDxH) | 1.4” x 7.0” x 7.2” (36mm x 178mm x 182mm) | |
Weight | 2.95 lbs (1.34 kg) | |
Electrical | Power Input | 100 ~ 240V AC |
Power Consumption | 65W | |
Environmental | Operating Temperature | 50°F to 95°F (10°C to 35°C) |
Storage Temperature | -40°F ~ 149°F (-40°C ~ 65°C ) | |
Operating Humidity | 20% to 80% relative humidity (non-condensing) | |
Certification | UL, cUL, CB, FCC, |
