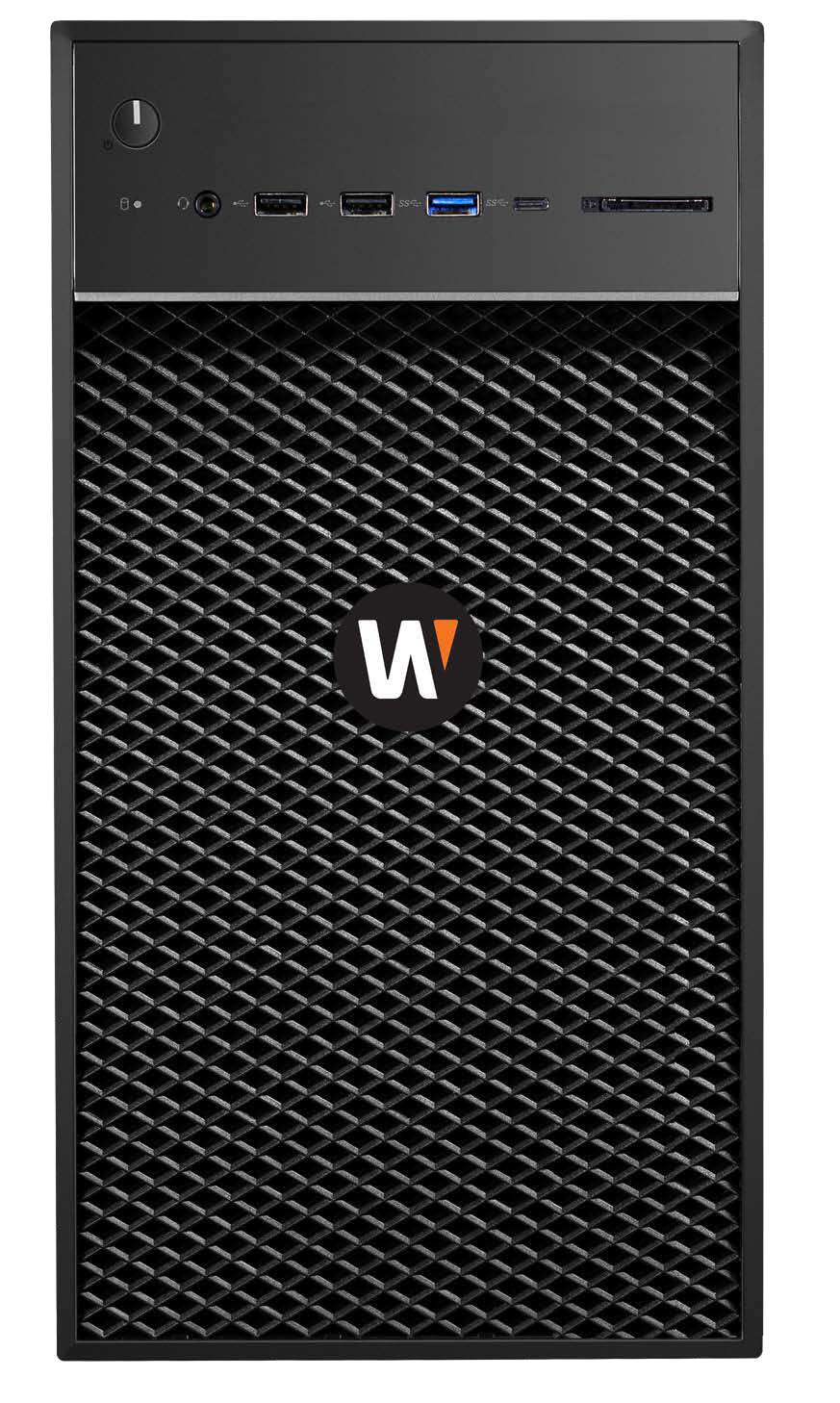

Hanwha - WRT-P-5202W-8TB - Dual-purpose Wisenet WAVE Network Video Recorder (8TB)
Part number:
WRT-P-5202W-8TB
Price:

The WRT-P-5202W series dual purpose Wisenet WAVE server and client is built into a compact mini-tower form factor running Windows 10 IoT Enterprise or Ubuntu Linux 20.04 LTS. This ready to deploy solution can manage up to 470 Mbps of recording throughput and up to 36TB of storage for a single site or as an addition to your existing Wisenet WAVE system.



Each is pre-configured with Wisenet WAVE VMS and preloaded with 4 Professional licenses to ensure quick and easy deployment with minimum setup time.



Features:

  • Preloaded and configured with Wisenet WAVE video management system
  • Includes (4) four Wisenet WAVE Professional licenses
  • 470 Mbps of recording throughput
  • Up to 36TB internal storage
  • Supports Wisenet and ONVIF conformant IP cameras
  • Dual DisplayPort monitor outputs
  • Dual GbE NICs
  • Includes USB mouse and keyboard
  • 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
  • Powered by the Microsoft Windows 10 IoT Enterprise LTSC Operating System
SYSTEM
Video Management Software     Wisenet WAVE
Recording BandwidthUp to 470 Mbps
Pre-loaded Licenses4 x Wisenet WAVE Professional license
OS Drive Bays1 x 256GB SSD (internally mounted)
Data Drive Bays3x 3.5" SATA HDDs
Data StorageUp to 36TB raw storage
Network Interface(2) 1GbE RJ45 Ports (1 on-board & 1 PCIe NIC)
Processor1 x Intel® Core® i5 12th Generation
Memory16GB DDR4
Operating SystemWindows 10 IoT Enterprise / Ubuntu Linux 20.04 LTS
Video Outputs2x DisplayPort with 1 x DisplayPort to HDMI adapter
USB PortsRear (4) USB 3.2, (2) USB 2.0; Front (2) USB 3.2, (2) USB 3.2 Type-C
Other Ports3.5mm audio output, PS2 Keyboard & Mouse, Serial
Keyboard & MouseIncluded
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
MechanicalForm Factor Tower
Color / MaterialBlack / Metal

Dimensions (HxWxD)

14.52" x 6.81" x 16.53" (369mm x 173mm x 420mm)
Weight24 lbs (10.8 kg)
ElectricalPower Supply550W 80 Plus Gold
Power Input100 ~ 240V AC
Power ConsumptionMaximum 550W

Environmental

Operating Temperature

41°F to 113°F (5°C to 45°C)

Storage Temperature

-40°F to 158°F (-40°C to 70°C)
Operating Humidity20% to 85% (non-condensing)
CertificationUL, cUL, CB, FCC, 80 Plus Gold
