Hanwha - WWT-P-7204ML - Micro form factor Wisenet WAVE Client Workstation for 2 monitor output, 16GB RAM, Ubuntu Linux 22.04
Part number:
WWT-P-7204ML
Price:

The WWT-P-7204M Series client workstation is a micro form factor, easy to deploy solution that can be used on- site or remotely to access your Wisenet WAVE video recorder. The workstation has a 256GB M.2 solid state drive for the Windows 11 IoT Enterprise LTSC 2024 or Ubuntu Linux 22.04 LTS operating systems to provide fast boot and load times.



This micro workstation offers unrivaled deployment flexibility, allowing for its small chassis to be deployed in any small business environment. An optional VESA mount allows the server to be inconspicuously mounted behind a monitor.



Features:

  • Preloaded and configured with Wisenet WAVE video management system client & tools
  • Includes USB mouse and keyboard
  • 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
  • Optional VESA mount
SYSTEM
Video Management Software Wisenet WAVE
OS Drive Bay 1 x 256GB M.2 SSD
Network Interface 1 x 1GbE RJ45 Ports
Processor 1 x Intel® Core™ i7 14th Generation
Memory 16GB DDR4
Operating System Windows 11 IoT Enterprise LTSC 2024 / Ubuntu Linux 22.04 LTS

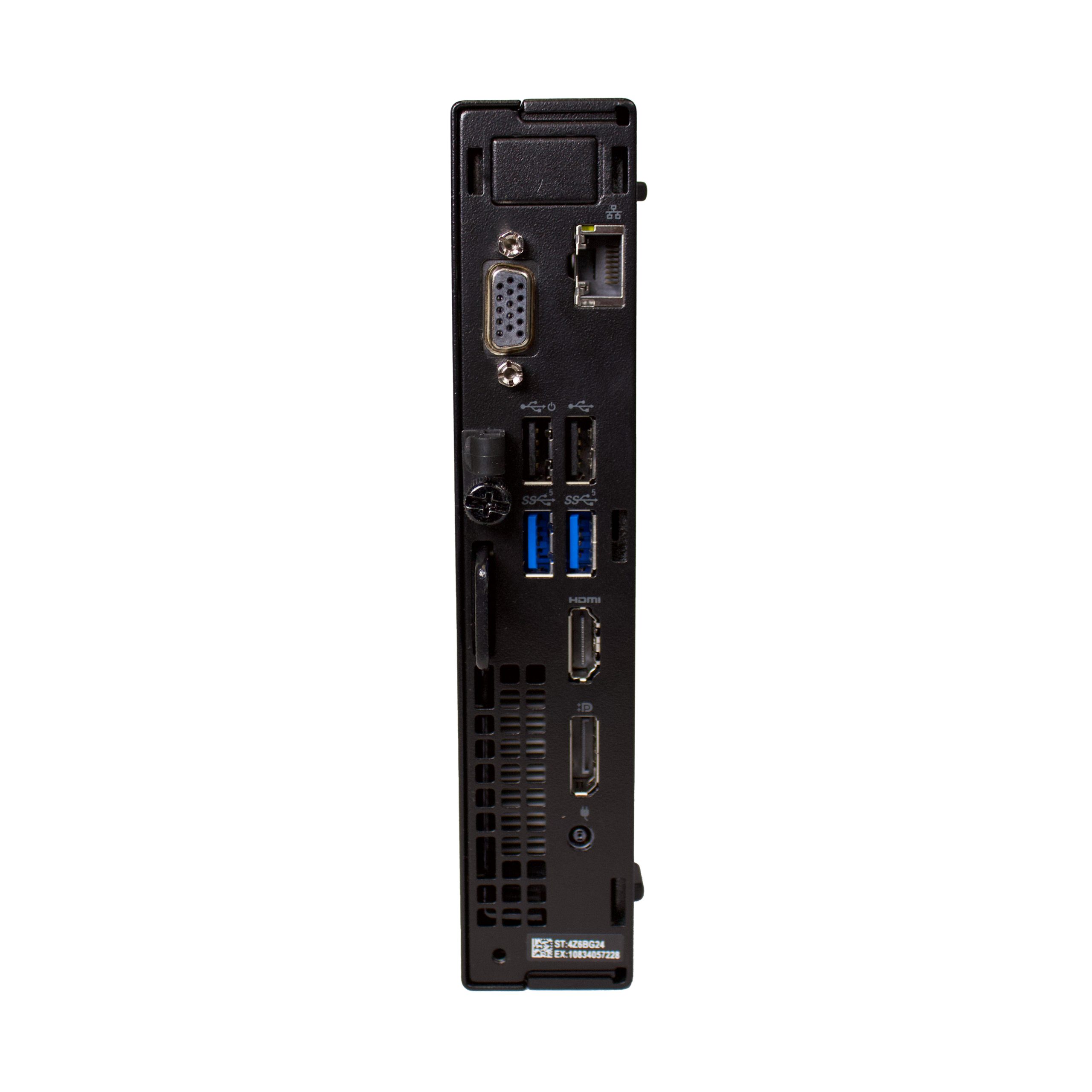

Video Outputs 1x HDMI, 1x DP, 1x VGA, 1x DisplayPort to HDMI adapter

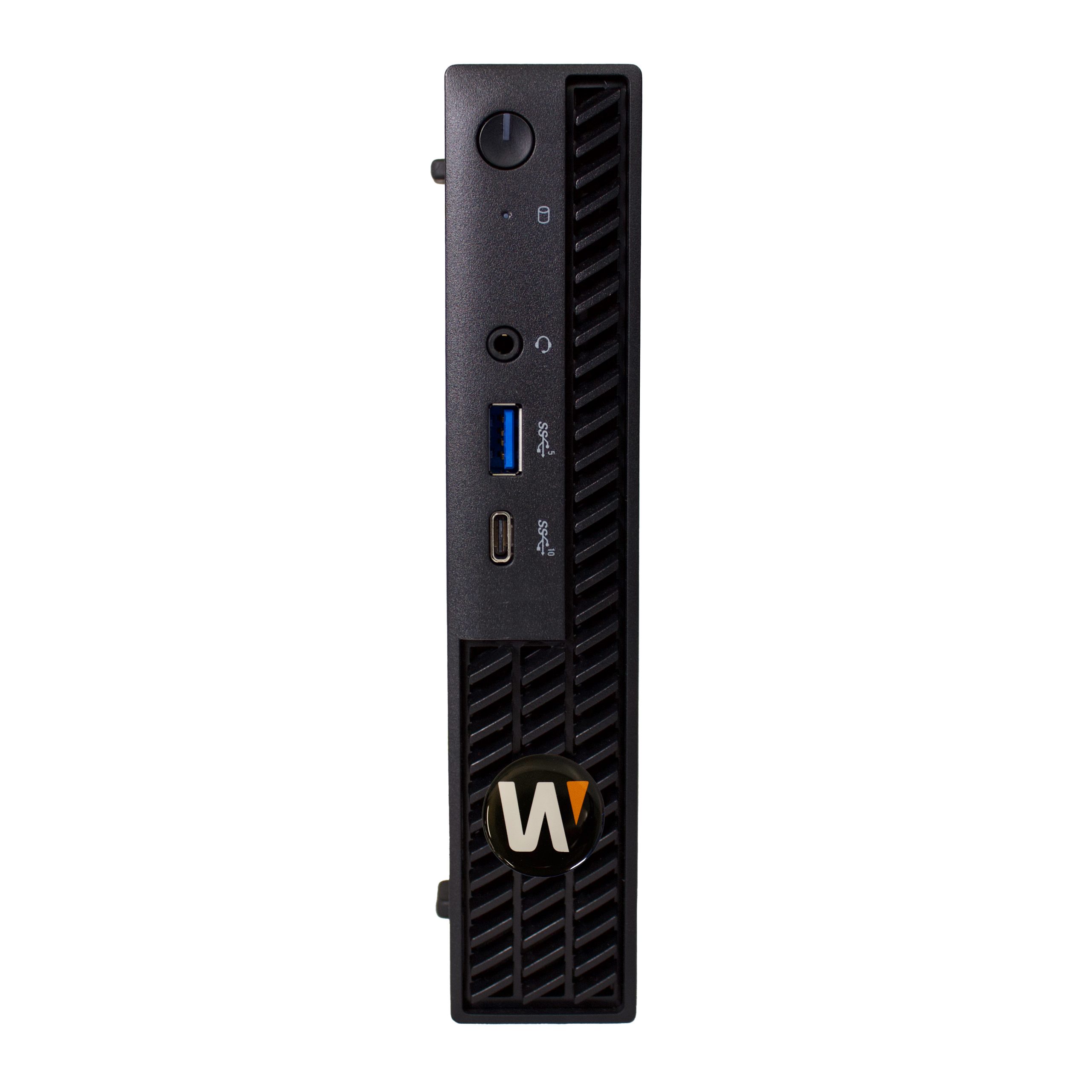

USB Ports Rear: 2x USB 3.2 Gen 1, 2x USB 2.0; Front: 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-C
Other Ports 1x 3.5mm audio headset output/input
Keyboard & Mouse Included
MECHANICAL / ELECTRICAL / ENVIRONMENTAL





Mechanical

Form Factor Micro form factor client
Color / Material Black / Metal & Plastic



Dimensions (WxDxH)

1.4” x 7.0” x 7.2” (36mm x 178mm x 182mm)
Weight 2.95 lbs (1.34 kg)
Electrical Power Input 100 ~ 240V AC

Power Consumption

90W



Environmental

Operating Temperature

50°F to 95°F (10°C to 35°C)

Storage Temperature

-40°F ~ 149°F (-40°C ~ 65°C )
Operating Humidity 20% to 80% relative humidity (non-condensing)
Certification UL, cUL, CB, FCC,
