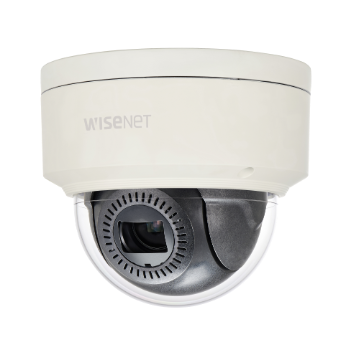

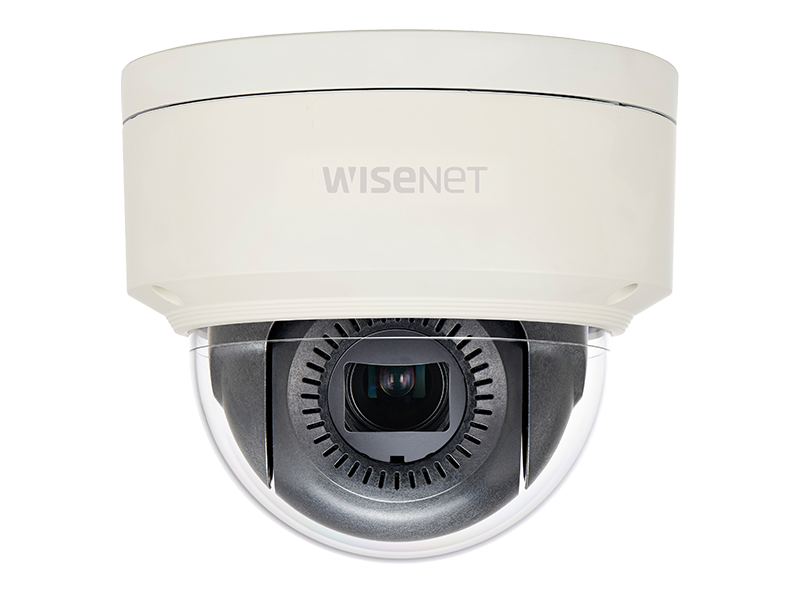

Wisenet X powered by Wisenet 5 network outdoor vandal dome camera, eXtraLUX features 1/2" sensor with F0.94 Lens, PTRZ, 2MP, Full HD(1080p) @60fps, motorized vari-focal lens 4.0x (4.1~16.4mm) (100°~26.2.9°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/24VAC/PoE, IP67, IK10, Nema 4X, -40°C ~ +55°C (-40°F ~ +131°F).
Features:
- Max 2MP @ 60fps
- Motorized vari-focal 4.1~ 16.4mm (FOV: 100°~26.2°)
- ½” CMOS sensor with F0.94 Lens (wide)
- PTRZ, remote adjustment to pan/tilt/zoom/rotation of the lens
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 150dB @30fps, 120dB @60fps
- Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
- Hallway view, sound classification
- Dual SD cards
- Gyro sensor for digital image stabilization
- IP66/67 NEMA 4X, IK10
- Power: PoE or 12VDC/24VAC
| Video | |
| Imaging Device | 1/2" 2MP CMOS |
| Min. Illumination | Color: 0.004Lux(F0.94, 1/30sec) BW: 0.0004Lux(F0.94, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens |
| Focal Length (Zoom Ratio) | 4.1~16.4mm(4x) motorized varifocal |
| Max. Aperture Ratio | F0.94(Wide)~F2.4(Tele) |
| Angular Field of View | H: 100.0°(Wide)~26.2°(Tele) / V: 54°(Wide)~14.8°(Tele) / D: 116.0°(Wide)~30.0°(Tele) |
| Min. Object Distance | 0.7m(2.30ft) |
| Focus Control | Simple Remote Control Focus via network(motorized V/F) |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200cycles) |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming (Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP(Unicast) |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T Wisenet open platform |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C |
| Storage Temperature / Humidity |
| Certification | IP67, IP66, NEMA4X, IK10 |
| Mechanical |
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø160x140.0mm(6.3"x5.51"), 1.40kg(3.09 lb) |
