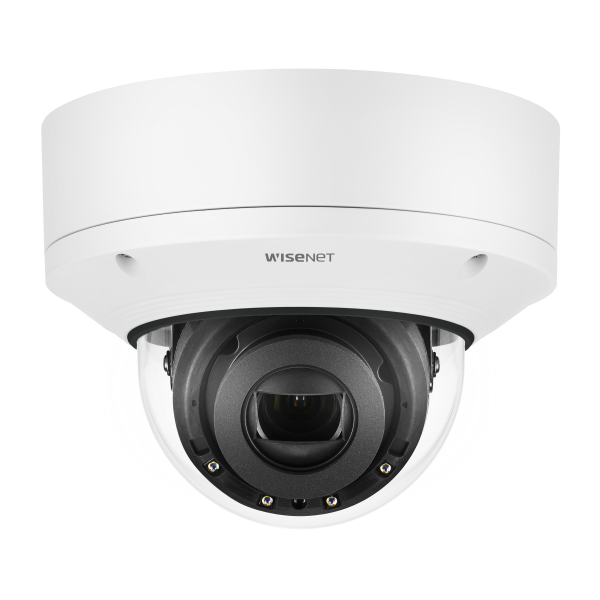

The Wisenet X series PLUS powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°). Features a builtin PoE Extender feature. PoE+ power input and PoE output up to 80 meters. 164 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
Features:
- 5 megapixel resolution
- 2.4x (3.9~9.4mm) motorized varifocal lens
- 164 foot IR viewable range for low light/no light monitoring
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover, Audio event playback
- Dual SD/SDHC/SDXC memory slots (Max. 512GB)
- Hallway view, WiseStream II support, IP67/IP66/IP6K9K, IK10+, NEMA 4X
- LDC support (Lens Distortion Correction)
- PoE+ In / PoE Out,, Bi-directional audio support
- White camera body

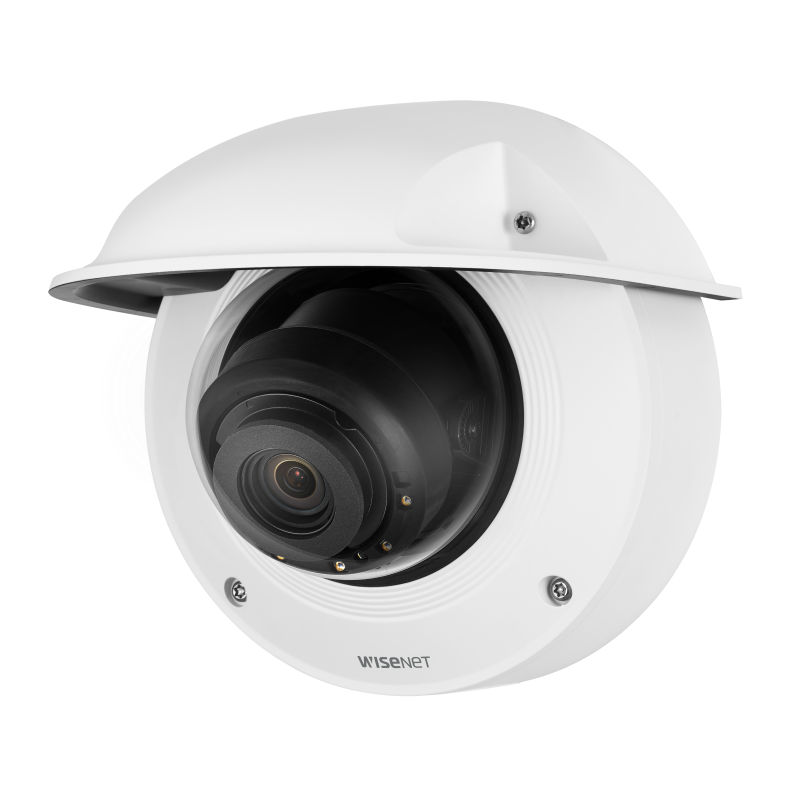

- Weathercap included
| Video | |
| Imaging Device | 1/1.8" 6M CMOS |
| Effective Pixels | 2,616(H) x 1,976(V) |
| Minimum Illumination | Color: 0.07Lux(F1.3, 1/30sec) BW: 0Lux(IR LED) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480 for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens |
| Focal Length (Zoom Ratio) | 3.9~9.4mm(2.4x) motorized varifoca |
| Maximum Aperture Ratio | F1.3 |
| Angular Field of View | H: 92.1˚(Wide)~38.7˚(Tele), V: 67.2˚(Wide)~29.0˚(Tele), D: 119.9˚(Wide)~48.6˚(Tele) |
| Minimum Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens/Mount Type | DC auto iris, P-iris |
| Operational |
| IR Viewable Length | 50m(164.04ft) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRV |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
| Audio In | Selectable(microphone in/line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Maximum output level: 1Vrms |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Maximum 30fps MJPEG: Maximum 30fps |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Edge Storage | Micro SD/SDHC/SDXC 2 slots, total maximum capacity 512GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Web Viewer | Supported OS: Windows 8.1, 10, Mac OS X 10.13 Recommended Browser: Google Chrome Supported Browser: MS Internet Explorer 11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental |
| Operating Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH * Start up should be done at above -35°C |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66/IP67/IP6K9K, IK10+, NEMA4X |
| Electrical Mechanical |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø180x125mm(7.09x4.92"), 1.75kg(3.86 lb) |
| DORI |
| Detect (25PPM/ 8PPF) | Wide: 49.4m(162.07ft) / Tele: 146m(479.00ft) |
| Observe (63PPM/ 19PPF) | Wide: 19.7m(64.63ft) / Tele: 58m(190.29ft) |
| Recognize (125PPM/ 38PPF) | Wide: 9.9m(32.48ft) / Tele: 29m(95.14ft) |
| Identify (250PPM/ 76PPF) | Wide: 4.9m(16.08.22ft) / Tele: 15m(49.21ft) |
