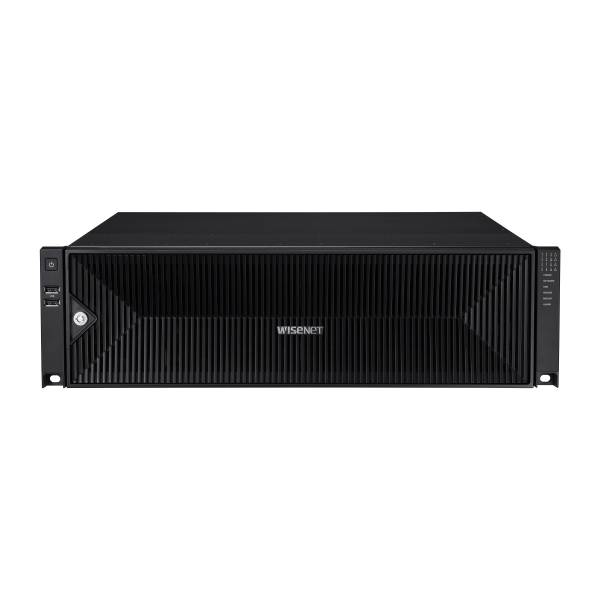

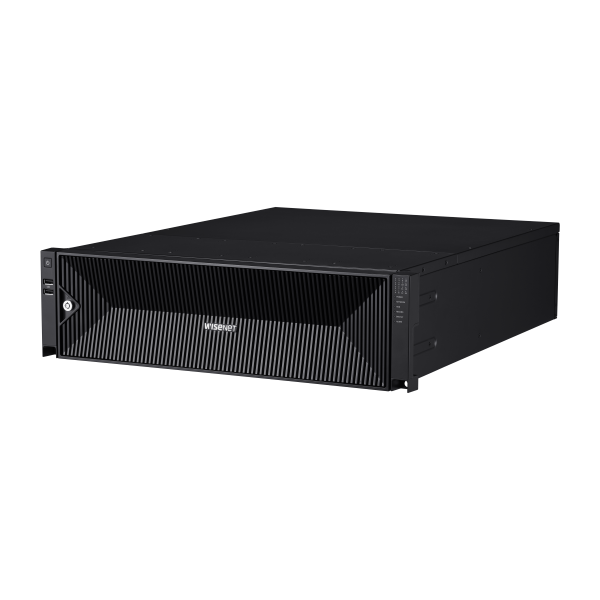

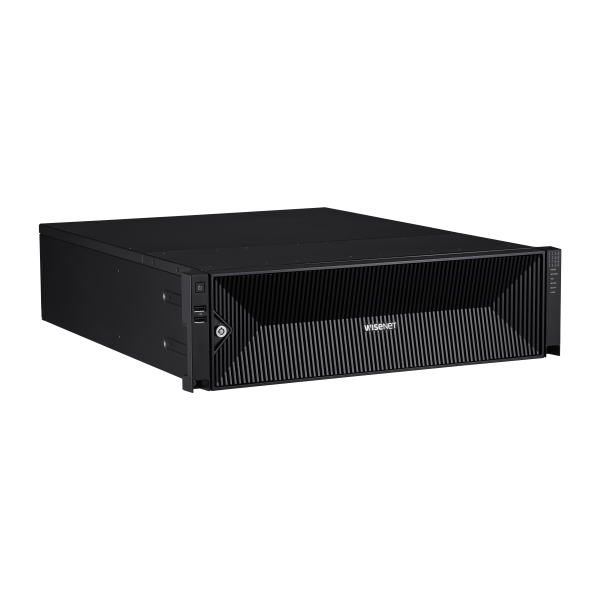

Hanwha - XRN-6410DB4-56TB - 64-Channel 32MP NVR with 56TB HDD
Part number:
XRN-6410DB4-56TB
Price:

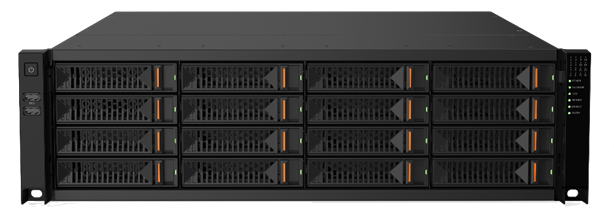

8K NVR (Intel based), 64CH, 56TB RAW, H.265/H.264/MJPEG, ARB (Automatic Recovery Backup) & Failover (N+1), 400Mbps recording/ up to 64Mbps playback throughput (RAID Mode), Dual stream recording, 16 Hot Swap HDD bays, iSCSI, redundant power, 2x HDMI dual display, Alarm I/O, 2-way audio, ONVIF, maximum camera resolution of 32MP recording/display and fisheye dewarping on WEB and CMS, Support RAID 5/6 (8TB * 7 RAID 5/6 Ready). Field configuration and setup required (recording storage - RAID 5: 48TB or RAID 6: 40TB). HDD Hot Swapping is available when RAID Mode is configure.
Features:
- Up to 64 channels, Supports up to 32 megapixel camera resolution
- 400Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 16 internal HDDs (160TB)
- Support RAID 5/6
- ARB & failover(N+1), dynamic event, AI metadata search support
| Display | ||
|---|---|---|
| Network camera | ||
| Inputs | Max. 64CH | |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
|
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) | |
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Distributed mode : Up to 400 Mbps Normal mode : Up to 150 Mbps {RAID mode} Normal : Up to 400 Mbps Degrade/ Rebuild : Up to 320 Mbps |
|
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown |
|
| Search & Play | ||
| Playback Bandwidth | RAID Mode : Max. 64Mbps(64CH simultaneously) Non-RAID Mode : Max. 32Mbps |
|
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 112CH(Local 64CH, Remote 16CH per user) | |
| Fisheye Dewarping | Support (Local 1CH), CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 16ea(Max. 160TB, Non-RAID mode) | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Array Size : 8 HDDs x 2 Array) | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | ||
| GUI | 64 CH(network) | |
| Web | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | ||
| Supported OS | Windows 10, macOS 10.13 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
|
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer, SPC-2000 | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | ||
| Indicator | HDD, Alarm, Power, Record, Backup, Network, RAID | |
| Storage | OK | |
| Reset | Power button | |
| HDD Key Lock | OK | |
| HDMI | 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz |
|
| Audio | Out 1EA (3.5mm Audio Jack) | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Power inlet | AC 2EA | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Dual SMPS) | |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440.0 x 132.0 x 571.1mm | |
| Weight | Approx. 14.1Kg(31.1 lb, HDD not included) | |
| Intelligent Analysis | ||
| AI Search | ||
| Object Attribute | Compatible for Wisenet AI Camera | |
