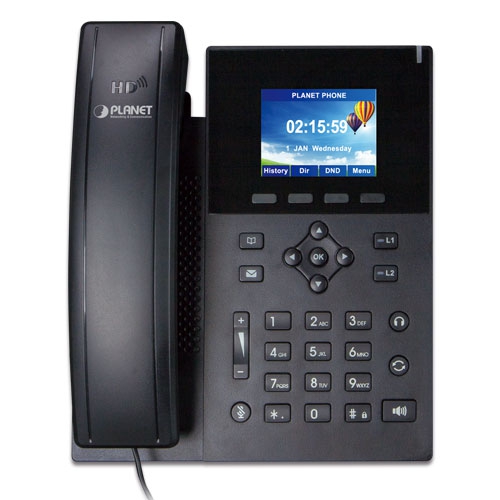

Planet - VIP-1260PT - High Definition Color POE Gigabit IP Phone
Part number:
VIP-1260PT
Price:
High Definition Color POE Gigabit IP Phone: (2.8-inch Color LCD, Opus & G.722 HD Voice, 6 SIP Lines, Dual Gigabit LAN, 802.3at/af POE, Multi-Language, 3-way Conferencing, Caller ID, DND, TLS, PoE, QoS, VPN, VLAN, STUN, IPv6, Auto Provision, TR069)
Features:
- Intuitive Design Brings Quality Communication
- Multi-language IP Phone with Color Display
- Compliant with SIP 2.0
- Affordable for All Businesses
- High-quality G.722 HD and Opus Audio Codes
- Enhanced, Full-Featured SIP IP Phone
- Enterprise IP Telephony Deployment of VIP-1260PT
Highlights
- IETE SIP compliant with Transport Layer Security
- Wideband G.722 HD and Opus audio
- 2.8-inch 320 x 240 color LCD monitor
- 6 identities/accounts with 2-line color LED key
- Dual Gigabit and IEEE 802.3af/at PoE compliant
- Multi-language support via the web UI and LCD
- IPv6, VPN, VLAN, QoS, TR069 and auto-provisioning
Advantageous Applications
- Supports SIP 2.0 (RFC3261) over UDP/TCP/TLS
- Inband, SIP info, RFC 2833 DTMF relay
- Soft keys and function keys programmable
- Echo cancellation: Supports G.168, and a maximum filter length of 96ms in hands-free mode
- Supports voice gain setting, voice activity detection (VAD) and comfort noise generation (CNG)
- Full duplex hands-free speakerphone
- Hands-free headset ringing choice
- Voice codec setting for each SIP line
SIP Applications
- Call forward and transfer (blind/attended)
- Call holding and waiting
- 3-way conferencing
- Paging and intercom
- Call park, call pickup and join call
- Redial and click to dial
- Secondary dialing automatically
- Incoming calls, outgoing calls and missing calls (Each supports 100 records.)
- SMS and speed dial
- Phonebook up to 1000 records
Call Control Features
- Flexible dial map, hotline and empty calling no. for rejected service
- Black list for rejected authenticated calls
- White list and call limit
- Do not disturb (DND)
- Caller ID display
- Dial without registration
Network Features
- IPv4/IPv6
- Static /PPPoE/DHCP client
- 802.1 VLAN (voice VLAN/data VLAN)
- VPN (L2TP) and openVPN
- Quality of Service
Maintenance and Management
- Integrated web server provides web-based administration and configuration
- Telephone keypad configuration via display menu/navigation
- Automated provisioning and upgrade via HTTPS, HTTP, TFTP
- User authentication for configuration pages
- SNTP time synchronization
- TR069
| Hardware | |
| Lines (Direct Numbers) | 6 SIP Lines |
| Display | LCD x 1: 2.8 inch (320 x 240) color-screen LCD |
| Feature Keys | Keypad: 31 keys, including 4 Soft-keys 6 Function keys 5 Navigation keys 12 Standard Phone Digits keys 3 Volume Control keys, Up/Down/Mute (Microphone) 1 Hands-free key |
| Network Interfaces | RJ45 10/100/1000 Mbps Ethernet jacket x 2: Network x 1 (802.3af PoE Class 2 enabled) PC x 1 (Bridged Network) |
| Connectors | HD hands-free speaker (0 ~ 7KHz) x 1 HD hands-free microphone (0 ~ 7KHz) x 1 HD handset (RJ9) x 1 |
| Power Requirements | IEEE 802.3af 5V (Optional External Power Supply) Power Consumption: Idle – ~ 1.7W, Peak – ~5.7W |
| Weight | 700g |
| Dimensions (W x D x H) | 180 x 210 x 80 mm |
| Protocols and Standard | |
| Protocols | SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 LLDP PPPoE 802.1x L2TP (basic unencryption) OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR069 AES128 & AES256 |
| Networking | |
| Networking | Physical: 10/100/1000Mbps Ethernet, dual bridged port for PC bypass IP Model: IPv4/VIPv6/VIPv4&VIPv6 IP Configuration: Static, DHCP, PPPoE Network Access Control: 802.1x VPN: L2TP (basic unencryption), OpenVPN VLAN QoS RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
| Deployment & Maintenance | Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069 Web management portal Web-based packet dump Configuration Export, Import Phonebook Import, Export Firmware Upgrade Syslog |
| Features | |
| Call Features | Call out, answer, reject Mute, Unmute (microphone) Call Hold, Resume Call Waiting Intercom Caller ID Display Speed Dial Anonymous Call (Hide Caller ID) Call Forwarding (Always/Busy/No Answer) Call Transfer (Attended/Unattended) Call Parking, Pick-up (depending on server) Redial Do-Not-Disturb (per line, per phone) Auto-Answering (per line) Voice Message (on server) Local 3-way Conference Hot Line Hot-Desking |
| Phone Features | Intelligent phonebook (up to 1000 entries in total) Remote phonebook (XML/LDAP, 1000 entries) Call log (100 entries in total, in/out/missed) Black/White List Call Filtering Screen saver Voice Message Waiting Indication (VMWI) Programmable DSS/Soft keys Network Time Synchronization Voice Recording with IP PBX Action URL / Active URI Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Japanese, Russian, Italian, Turkish, German, Dutch, Spanish, Hebrew, Polish, French, etc. |
| Audio Features | HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response) HAC handset Wideband ADC/DAC 16KHz sampling Narrowband codec: G.711a/u, G.726-32K, G.729AB, iLBC Wideband codec: G.722, Opus Full-duplex acoustic echo canceller (AEC) Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR) Packet loss concealment (PLC) Dynamic adaptive jitter buffer up to 300ms DTMF: In-band, out-of-band – DTMF-relay (RFC2833), SIP info |
| Environment | |
| Operating Temperature | 0 ~ 45 degrees C |
| Operating Humidity | 10 ~ 95% (non-condensing) |
| Emission | CE, FCC, RoHS |
