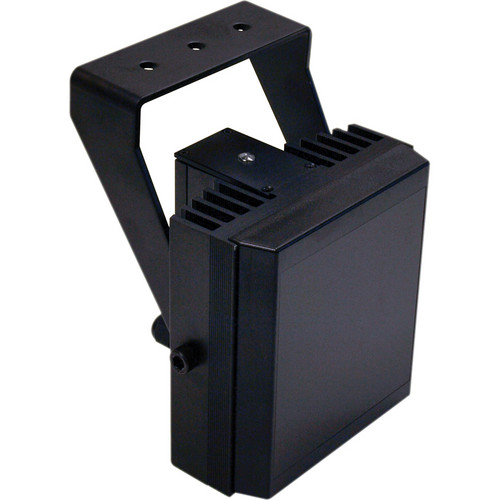

The Iluminar IR312-A120-PoE Medium-Range IR Illuminator is designed to provide dedicated lighting for IP cameras via PoE (Power over Ethernet)-enabled network infrastructure. This IP67-rated IR illuminator is resistant to ingress of dust and water, and thus ideal for outdoor applications. It is also vandal resistant. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140˚F (-50 to 60˚C).
Features:
- Medium range IR illuminator
- SMT LED technology
- Distances up to 312’ (95m)
- Angles 10o, 30o, 60o, 100 o & 120o
- 850nm or 940nm Wavelengths
- Low power consumption (24W)
- Long life
- 5 year warranty
- IP67 weatherproof rating
- Built-in photocell IR on/off
- Telemetry input for remote switching
- PoE+ (IEEE802.3at compliant) power
| General | |
| Electronics | High efficiency surface mount high power LED’s with advanced current limited integral control circuitry |
| Number of SMT LED’s | 8 |
| Construction | Robust high quality aluminum extrusion |
| Front window | Polycarbonate high transmittance protective (vandal-proof) IR filter |
| Finish | Black anodized |
| Power Cable | IP67 rated RJ45 Cat5e |
| Pressure Equalization Vent | Prevents thermal expansion & pressure cycling |
| Photocell | Adjustment via pot |
| Illumination | Adjustable via pot |
| Operating Temperature | -58o to 140oF (-50o to 60o C) |
| Weight | 2.2lbs (1Kg) |
| Mount | Black powder coated stainless steel wall mount. Adjustable via M6 Allen key (included) |
| Dimensions | 4.33” x 4.33” x 3.15” (110 x 110 x 80mm) |
| Electrical | |
| Power over Ethernet (PoE) IEEE802.3at compliant | |
| Consumption | 24W |
| Wavelength | |
| Standard (A) | 850nm (semi-covert) Faint red glow visible on the illuminator only (no visible light) |
| Optional (C) | 940nm (covert) No visible glow from illuminator – ideal for transportation or high security applications |
| Certifications | |
| IP | IP67 in accordance with EN60529:1992 |
| EMC | EN61000, FCC part 15.107 15.108 Class B |
| WEEE | Waste Electrical & Electronic Equipment European directive 202/96/EC |
| RoHS | Restriction of Hazardous Substances European directive 202/95/EC |
