Industrial Wi-Fi 6 802.11ax 1800Mbps Dual Band Wireless VPN Gateway with 5-Port 10/100/1000T (2.4GHz and 5GHz Dual Band concurrent, 2 DI/DO, 1 RS485, Dual DC 9~54V, -40~75 degrees C, SD-WAN automatically establishes a secure mesh VPN, Dual-WAN Failover and Load Balancing, High Availability, SSL VPN and robust hybrid VPN(IPSec/GRE/PPTP/L2TP), SPI Firewall, DoS Attack Prevention, Cyber Security, IPv6, SNMP, AP Controller, Captive Portal, RADIUS, Modus TCP, supports PLANET Easy-DDNS, CloudViewer app and MQTT)

Powerful Wi-Fi 6 Industrial VPN Security Solution

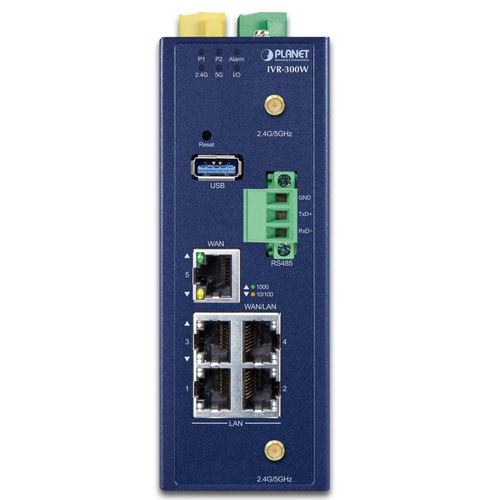

PLANET has launched the IVR-300W 802.11ax Wi-Fi VPN Security Gateway for demanding applications. It features five Ethernet ports (4 LANs and 1 WAN), IEEE 11ax Wi-Fi capability, serial port (RS485), and DI and DO interfaces. Incorporating SD-WAN function, it can greatly increase WAN optimization for multiple WAN links to be managed. Furthermore, its Dual-WAN Failover and Outbound Load Balance features can improve the network efficiency while the web-based interface provides friendly and user experience.

It’s ideal for the harsh environment as it can operate stably at temperatures from -40 to 75 degrees C. Its compact IP30 metal case allows either DIN-rail or wall mounting for efficient use of cabinet space.

Wireless 11ax Brings Excellent Data Link Speed

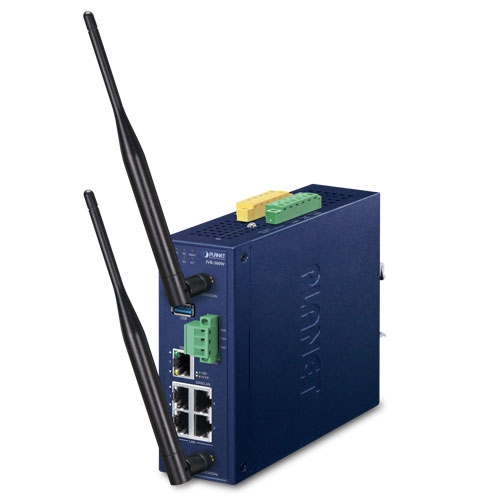

The IVR-300W is designed with high power amplifier and 2 highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. Equipped with the next-generation Wi-Fi 6 (802.11ax) wireless network standard, the total bandwidth reaches 1800Mbps, and the 2-stream transmission technology improves the transmission efficiency of multiple devices, making AR/VR/IoT applications smoother. The IEEE 802.11ax also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.

Ideal VPN Security Gateway Solution for Factories and Transportations

The IVR-300W provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the IVR-300W makes the connection secure, more flexible, and more capable.

Centralized Remote Control of Managed APs

The IVR-300W provides centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, wireless profiles for different purposes can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

For example, to configure multiple smart APs of the same model, the IVR-300W allows clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

Wi-Fi Deployments and Authentication with Simplified Management

The IVR-300W also provides a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The IVR-300W can offer a secure Wi-Fi network with easy installation for your business.

Excellent Ability in Threat Defense

The IVR-300W has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the IVR-300W is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the IVR-300W offers an easy-to-use, platform independent management and configuration facility. The IVR-300W supports SNMP and it can be managed via any management software based on the standard SNMP protocol.

Cost-effective Solution for RS485 to Ethernet Application

The IVR-300W provides a feature that can convert the Serial RS485 communication to IP networking. Ethernet signal allows two types of segments to connect easily, efficiently and inexpensively. The solution helps users and SIs save expenses as there is no need to replace the existing serial equipment and software system.

Convenient and Reliable Redundant Power System

To facilitate transportation and industrial-level applications, the IVR-300W provides an integrated power solution with a wide range of voltages (9~54V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 9~54V DC power supply inputs for high availability applications.

Ideal VPN Security Gateway

PLANET IVR-300W can work as a VPN security gateway in an industrial application for a company that has a factory and many different divisions. With IPSec/GRE/PPTP/L2TP/SSL VPN solutions, the IVR-300W installed at the headquarters provides branches, vendors, and mobile workers with secure data communication no matter how long the distance would be.

The IVR-300W connects dual WANs with up to two different ISPs. It creates a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.
