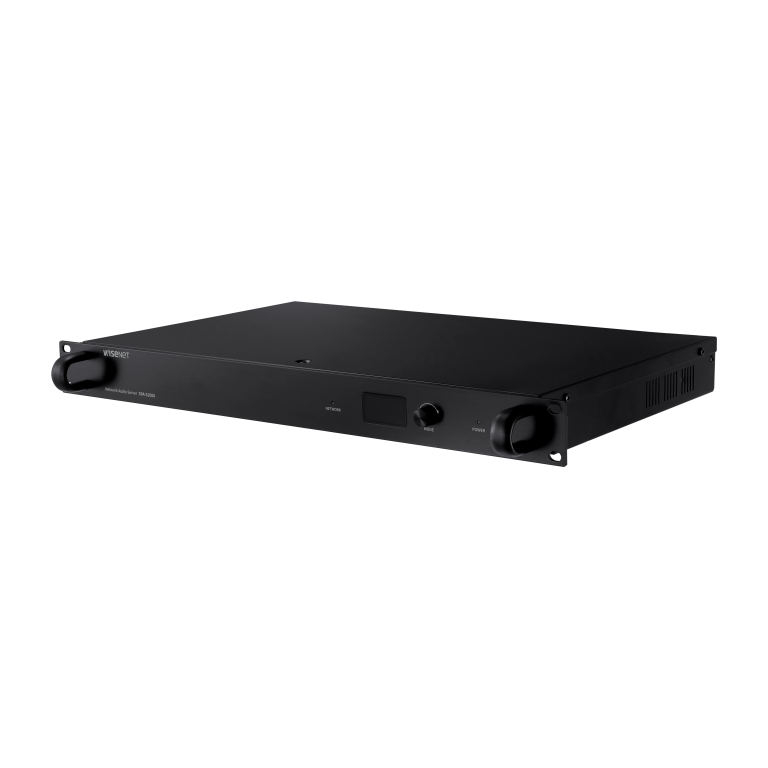

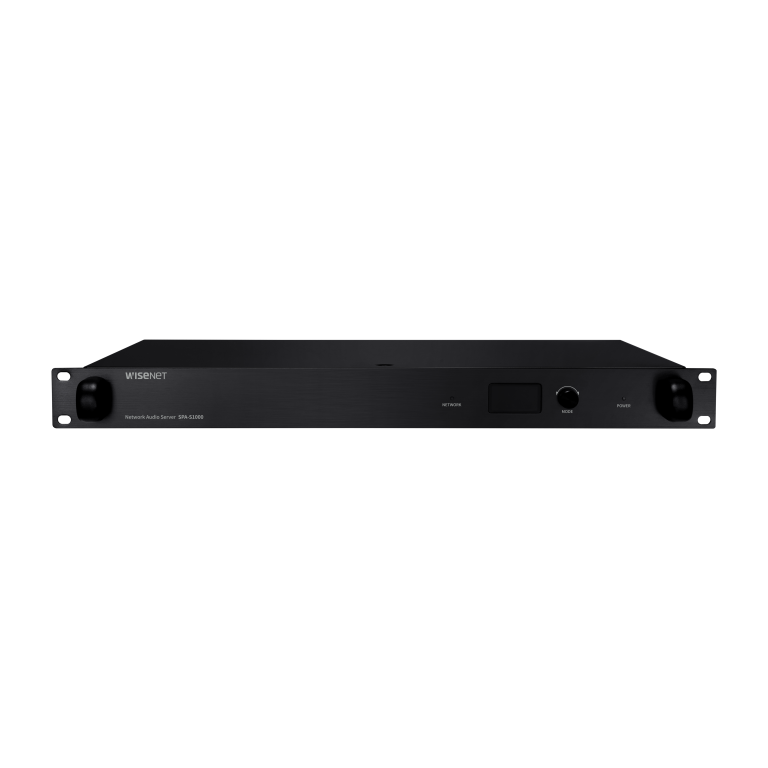

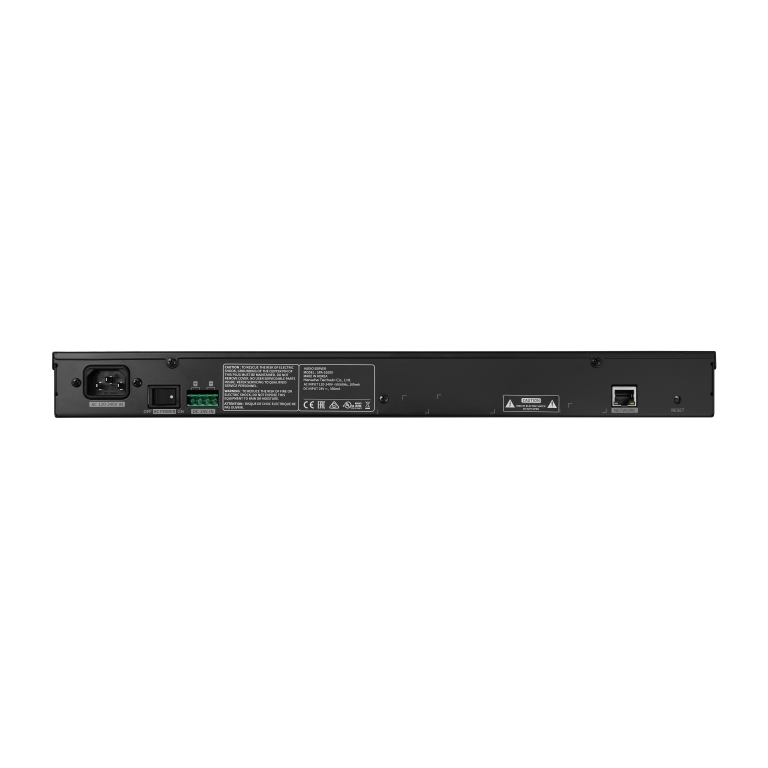

Hanwha - SPA-S1000 - IP Audio Server
Part number:
SPA-S1000
Price:
The SPA-1000 IP Audio Server allows for system expansion for large systems with up to 512 IP audio devices, including speakers, microphones, and audio modules. The dual power inputs provide enhanced system reliability when combined with a battery backup system. The unit conveniently mounts in a rack for a clean installation. The SPA-S1000 system offers a wide range of features, including:
Features:
- Operates as a dedicated controller, allowing all speakers to operate with the desired functions
- System Expansion: Up to 512 speakers
- Supported Protocol: IPv4, HTTP, SUNAPI, ONVIF, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP
- TTS: English(US, UK), German, French, Spanish, Russian
- Status indicator LCD screen with mode selection dial allows for easy system monitoring
- Support for multiple audio codecs, including G.711, G.722, and MP3
- Advanced audio mixing and signal processing capabilities
- Scheduled and event-based audio playback
- Background Music (BGM) & Text-to-Speech (TTS) audio playback
- Note: SPA-S1000 IP Audio Server is only needed for large installations greater than 256 speakers. Smaller installations can function with any IP Audio Speaker/Module as a controller for the system.
| Product | |
| Type | IP Audio Server |
| Network | |
| Ethernet | 10/100 Base-T |
| General | |
| Operating Temperature | -10 ~ +40℃ (+14°F ~ +104°F) |
| Operating Humidity | 10~85% RH (Non-Condensing) |
| Weight | 3.02Kg |
| Size | 482(W)×44(H)×280(D)mm |
| Color | Black |
| Certificate | EMC : KS C 9832/9835, EN 55032/55035, FCC Part 15 Subpart B, ICES-003 Safety : KC 62368-1, EN 62368-1, UL 62368-1, CAN/CSA C22.2 No.2 62368-1 |
| Power | |
| PoE | AC 120-240V, 50/60Hz, 10W, DC 24V, 350mA |
| Network Protocol | |
| Security | Password protection : admin,setup,user,guest (sha-2, Digest authentication, User access log) Digest authentication, User access log |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
| System Integration | |
| API (Application Programming Interface) | SUNAPI |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) Up to 512 Zone Control (Multicast) Up to 20 Zone Control (Unicast) Up to 255 Groups |
| Functional Monitoring | Connection verification, Built-in system logging |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
File
Drawings
0.2mb
File
Release Notes
0.9mb
