Compact Size for More Practicability and Convenience

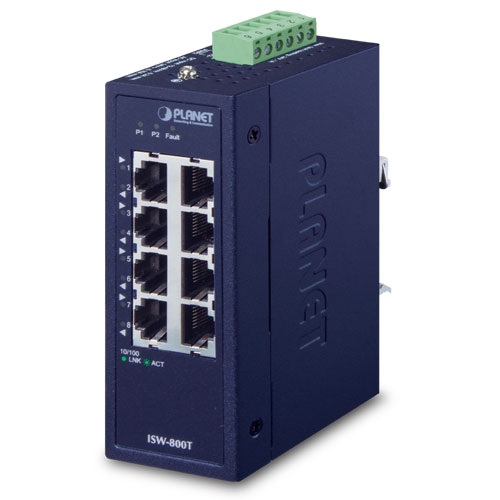

PLANET’s ISW-800T Industrial 8-Port 10/100TX compact Ethernet switch is suitable for industrial use, features 8 10/100Mbps auto-negotiation ports, IP30-rated compact case and a wide-ranging redundant power system (12~48V DC or 24V AC). The ISW-800T is able to operate in harsh environments with operating temperatures ranging from -40 to 75°C.
With the rise of the IIoT (Industrial Internet of Things), the ISW-800T includes a ‘Plug and Play’ feature that is designed for easy industrial network deployment. It is also stable and reliable when it comes to a fast data and power transmission.
Low Power Consumption for Green Networking
The ISW-800T provides link-on cable length power saving and link-down power saving methods. These features allow the ISW-800T to consume very low amounts of power in full loading operation mode, which helps conserve energy and maintains high performance.
With ‘Auto Power Saving’ and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the ISW-800T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it’s less active.
Dual Power Input for High Availability Network System
The ISW-800T features a strong dual power input system with a wide-ranging voltage (12V~48V DC or 24V AC) that is incorporated into a customer’s automation network to enhance system reliability and uptime.
Robust Protection
The ISW-800T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
High Switch Performance
The ISW-800T offers a high-performance switch architecture. With the 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps and a 1K MAC address table, the ISW-800T can perform wire-speed packets transfer without the risk of packet loss. The flow control function enables the ISW-800T to provide fast and reliable data transfer.
Plug and Play
All of the RJ45 copper interfaces in the ISW-800T support 10/100Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
The ISW-800T Industrial 8-Port 10/100TX Compact Ethernet Switch, suitable for industrial use, features 8 10/100Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (12~48V DC or 24V AC).
Features:
- Ports: 8 10/100TX
- Type of Switch:Unmanaged
- Switch Fabric: 1.6Gbps / non-blocking
- Max. Power Consumption: 1.1W/3.77BTU (power on w/0 any connection), 2.5W/8.57BTU (full loading)
- Throughput: 1.19Mpps 64Bytes
- Operating Temperature: -40 to 75°C
- TAA Compliant
| Hardware Specifications | |
| Copper Ports | 8 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 1.6Gbps (non-blocking) |
| Throughput (packet per second) | 1.19Mpps@ 64 bytes |
| Address Table | 1K entries, automatic source address learning and aging |
| Shared Data Buffer | 448K bits |
| Flow Control | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN rail kit and wall-mount kit |

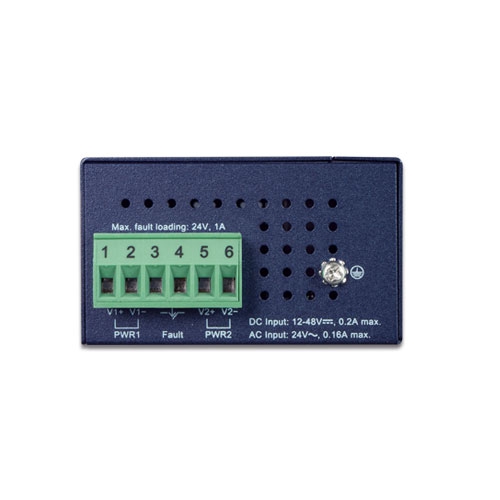

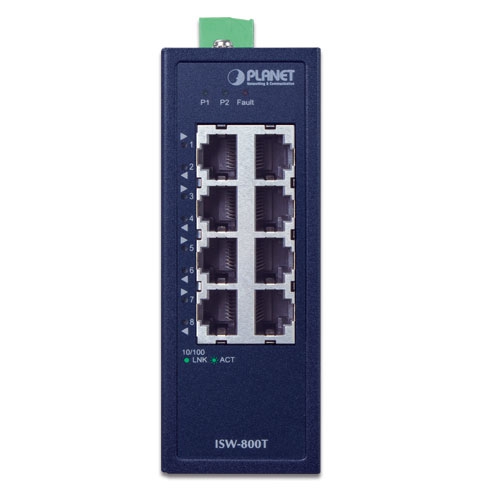

| Connector | Removable 6-pin terminal block for power input |
| Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 | |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| LED Indicator | System: |
| Power 1 (Green) | |
| Power 2 (Green) | |
| Fault Alarm ( Red ) | |
| Per 10/100TX RJ45 Ports: | |
| 10/100 LNK/ACT (Green) | |
| Dimensions (W x D x H) | 70 x 104 x 30 mm |
| Weight | 300g |
| Power Requirements | Dual 12~48V DC, 24V AC |
| Power Consumption | Max. 1.1 watts/3.77BTU (Power on without any connection) |
| Max. 2.5 watts/8.57BTU (Ethernet full loading) | |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) |
| IEC60068-2-27 (shock) | |
| IEC60068-2-6 (vibration) | |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/100BASE-FX | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1X Port Authentication Network Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
