Industrial Fast Ethernet Switch

Compact Design and Efficiency

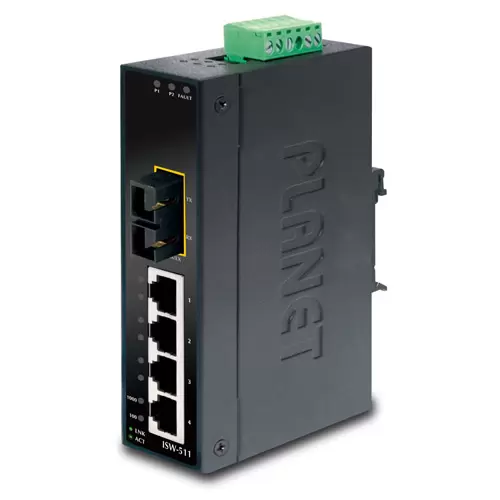

The ISW-511S15 from Planet Technology is a compact unit that features a durable strong case to protect against tough industrial environments. The unit features 4 10/100Base-TX Auto-negotiation ports and 1 100Base-FX single-mode SC interface that allows for a transmission distance up to 15km. Both units operate efficiently in industries that experience tough environments. In addition, the metal casing allows for efficient DIN and rail mounting.

Efficient Operation

The ISW-511S15 showcases immunity against electrical surges and interference that are experienced in industrial plants or traffic locations. Since the unit can operate in temperatures ranging from -10 to 60 degree C, the ISW-511 can be placed in virtually any environment. The ISW-511S15 features an integrated power supply that includes 12 to 48V DC voltage for operation globally.

Superior Switch Performance

The ISW-511S15 showcases 4 10/100Base-TX Ethernet ports and 1 100Base-FX optic-fiber SC interface. The unit features high performance switch architecture that showcases non-blocking switch fabric and wire-speed throughput up to 1Gbps. The unit’s 2K MAC Address table provides wire-speed packets transfer performance and does not experience packet loss. The Flow Control function permits the ISW-511S15 to provide efficient data transfer.

The unit’s RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation to ensure quality speed detection through RJ-45 Category 3, 4 or 5 cables. The standard Auto-MDI/MDI-X support has the ability to detect the type of connection to Ethernet devices without additional cabling. The ISW-511S15 is a compact unit that features a durable strong case to protect against tough industrial environments.

Features:

• Ports: 4 10/100TX + 1 100FX (SM, SC, 15km)
• Type of Switch: Unmanaged
• Switch Fabric: 1Gbps
• Power Consumption: 9.1W / 31 BTU
• Throughput: 0.74Mpps @ 64 bytes
• Operating Temperature: -10 to 60°C
• TAA Compliant
