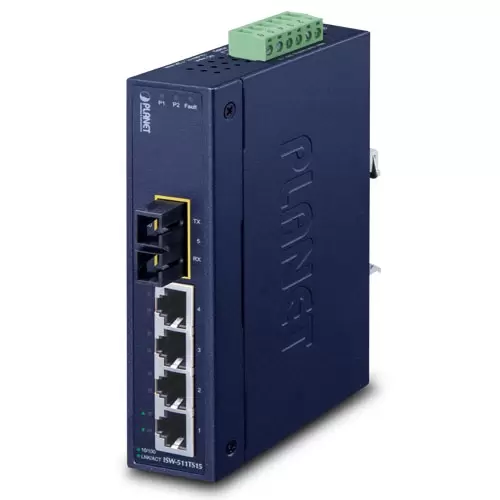

High-Performing Industrial Switch
The ISW-511TS15 is a 4-Port 10/100Base-TX with 1-Port 100Base-FX Industrial Ethernet Switch. Designed specifically for wide-temperature environments, the ISW-511TS15 offers wide-operating temperatures ranging from -40 up to 75°C. The ISW-511T / ISW-511TS15 provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of industrial environments.The ISW-511T and ISW-511TS1 are ideal for transportation, manufacturing, security and surveillance network deployments.
Versatile Distances
The ISW-511T and ISW-511TS15 units feature four 10/100Base-TX auto-negotiation ports and one 100Base-FX port. The ISW-511T is equipped with a 100Base-FX multi-mode SC interface to reach transmission distances of up to 2km and the ISW-511TS15 is equipped with a 100Base-FX single-mode SC interface to reach transmission distances of up to 15km. .

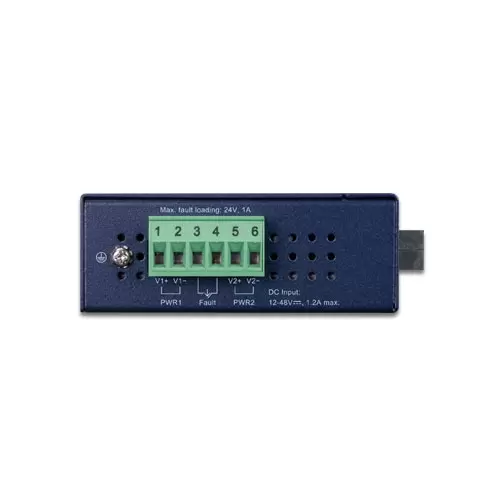

Flexible Power Supply Inputs
The unit offers dual-redundant, reversible polarity (12V DC to 48V DC) power supply inputs to support applications requiring dual or backup power inputs.The ISW-511T and ISW-511TS15 also offers slim for factor that allows either DIN rail or panel mounting.
Wire-Speed Performance
The ISW-511T and ISW-511TS15 are equipped with four 10/100Mbps ports with MDI / MDIX and one 100Base-FX fiber-optic SC interface. With 1 GPS non-blocking switch fabric and a 2K MAC address table, the ISW-511T and ISW-511TS15 can reliably deliver packets at wire-speeds. The unit is ideal for industrial environments. The ISW-511TS15 allows for worldwide operation, offering even more efficiency and stability.
Features:
- Ports: 4 10/100TX + 1 100FX (SM, SC, 15km)
- Type of Switch: Unmanaged
- Switch Fabric: 1Gbps
- Power Consumption: 13.7W / 46 BTU
- Throughput: 0.74Mpps @ 64 bytes
- Operating Temperature: -40 to 75°C
- TAA Compliant
| Hardware Specifications | |
| Copper | Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-XCable 10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.) |
| Optical | Port
Frequency Launch Power Receive Sensitivity Max. Input Power |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 436g |
| Power Requirements | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption / Dissipation | 13.7 watts / 46 BTU |
| Installation | DIN rail kit and wall mount ear |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1Gbps |
| Throughput (Packet Per Second) | 0.74Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex flow control |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity Operating | Operating: 5~90% Storage: 5~90% (Non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
