Industrial Ethernet Switch
New slim type with more practicability and convenience

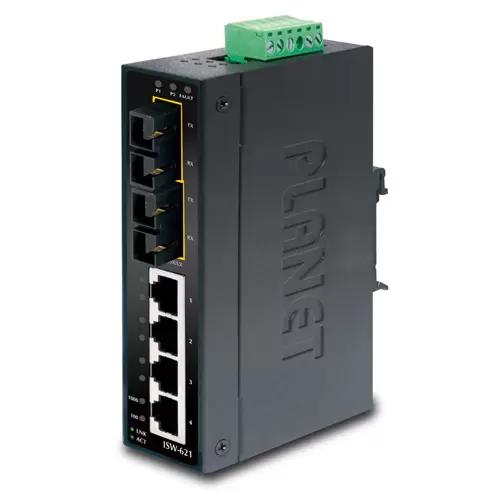

The ISW-621S15 is an advanced industrial hardened Ethernet Switch with new slim type, IP-30 metal case. Each of them is equipped with 4 10/100Base-TX auto-negotiation ports. The ISW-621S15 has 2 100Base-FX single-mode SC interfaces for transmission distance up to 15km and operates reliably in Heavy Industrial demanding environments. Meanwhile, the compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space.
Stable operating performance under difficult environments
The ISW-621 / ISW-621S15 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -10 to 60°C, the ISW-621/ISW-621S15 can be placed in almost any difficult environment. The ISW-621/ISW-621S15 also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.
Robust Switch performance
The ISW-621/ISW-621S15 each provides 4 10/100Base-TX Ethernet ports and 2 100Base-FX optic-fiber SC interfaces, and boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps. With 2K MAC address table, they offer wire-speed packets transfer performance without risk of packet loss. The flow control function allows the ISW-621/ISW-621S15 to have fast and reliable data transfer.
All of the RJ-45 copper interfaces in the ISW-621/ISW-621S15 support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. The ISW-621S15 from Planet Technology features efficient operation in various environments.
Features:
- Ports: 4 10/100TX + 2 100FX (SM, SC, 15km)
- Type of Switch: Unmanaged
- Switch Fabric: 1.2Gbps
- Power Consumption: 11.6W /40 BTU
- Throughput: 0.89Mpps @ 64 bytes
- Operating Temperature: -10 to 60°C
- TAA Compliant
| Hardware Specifications | |
| Copper | Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI/MDI-XCable 10Base-T : 2-pair UTP Cat. 3, 4, 5cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5cable (100meters, max.) |
| Optical | Port
Mode Distance Frequency Launch Power Receive Sensitivity Max. Input Power |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 442g |
| Power Requirements | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption / Dissipation | Max. 11.6 watts / 40BTU |
| Installation | DIN rail kit / wall mount ear |
| Alarm | Provides one relay output for power fail Alarm relay current carry ability: 1A @ DC 24V |
| Switch Specification | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.2Gbps |
| Throughput (Packet Per Second) | 0.89Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex flow control |
| Temperature | Operating: -10~60 degrees C Storage: -40~85 degrees C |
| Humidity Operating | Operating: 5~90%, Storage: 5~90% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Safety | UL, cUL |
| Stability Testing | IEC60068-2-32(Free fall), IEC60068-2-27(Shock), IEC60068-2-6(Vibration) |
