4-Port Industrial Ethernet Switch

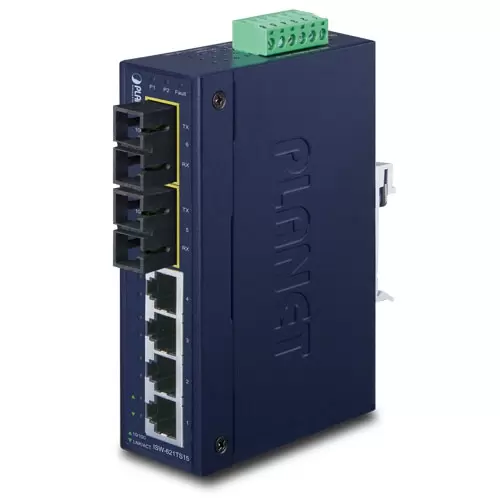

The ISW-621TS15 is an innovative 4 port + 2 port 100FX Port Single-mode Industrial Ethernet Switch – 15km that operates efficiently in temperatures ranging from-40~75°C. The ISW-621TS15 from Planet Technology is ideal for operation around the world. The unit is ideal for deployment in environments that experience shifting temperatures.
Versatile and Dependable

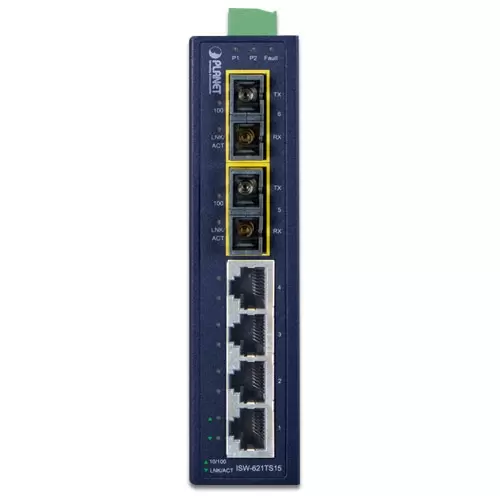

The ISW-621TS15 features four 10/100Base-TX Auto-Negotiation ports and two 100Base-FX ports. The ISW-621TS15 unit support 100Base-FX single-mode SC interfaces for a transmission distance up to 15km. The unit’s two 100Base-FX ports allow for versatility without limitation. This ensures that the unit is a perfect choice for deployment in either short or long distances.
Simple Installation
The ISW-621TS15 includes a unique compact case that allows for DIN rail or wall mounting to allow users to better utilize their space. The unit includes an integrated power supply that features a variety of voltages that allow for operation all over the world. The unit showcases dual-redundant reverse polarity 12V DC to 48V DC power supply inputs.
The ISW-621TS15 is an innovative 4 port + 2 port 100FX Port Single-mode Industrial Ethernet Switch – 15km that operates efficiently in temperatures ranging from-40~75°C.
Features:
- Ports: 4 10/100TX + 2 100FX (SM, SC, 15km)
- Type of Switch: Unmanaged
- Switch Fabric: 1.2Gbps
- Power Consumption: Max. 16W/ 54 BTU
- Throughput: 0.89Mpps / 64 bytes
- Operating Temperature: -40 to 75°C
- TAA Compliant
| Hardware Specifications | |
| Copper Interface | Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-XCable 10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.) |
| Optical Interface | Port
Mode Distance Wavelength Launch Power Receive Sensitivity Max. Input Power |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 442g |

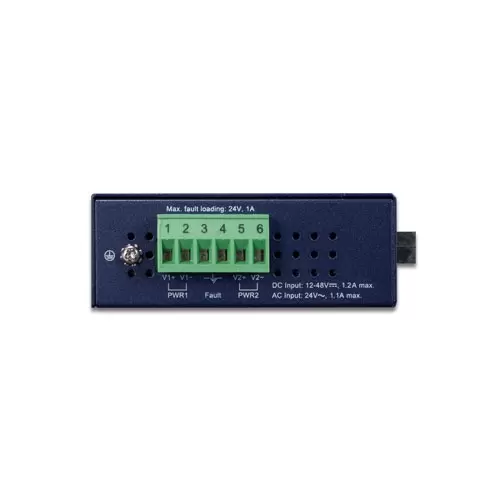

| Power Requirements | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption / Dissipation | Max. 16 watts / 54 BTU |
| Installation | DIN rail kit and wall mount ear |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.2Gbps |
| Throughput (Packet Per Second) | 0.89Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex Flow Control |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Operating Humidity | Operating: 5~90% Storage: 5~90% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
