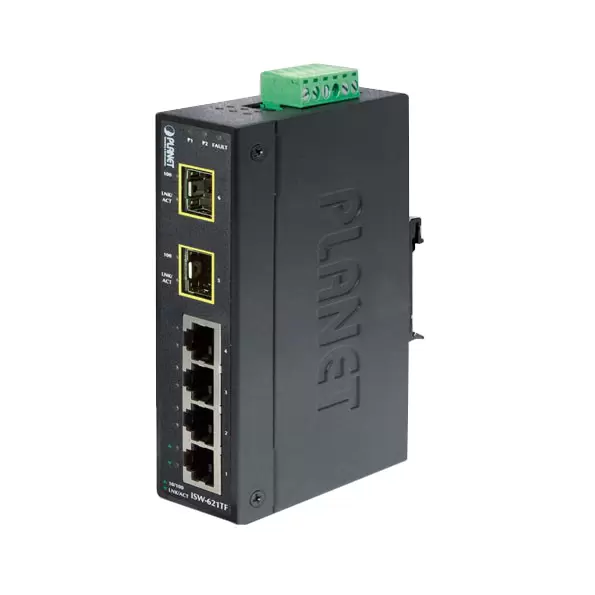

Industrial Ethernet Switch
Efficient User Friendly Switch
The ISW-621T features stable operation is various temperatures ranging from -40 up to 75°C. The ISW-621T is ideal for worldwide operation, especially for network deployment in areas that experience shifting temperatures and tough conditions. The unit operates with efficiency in areas that experience electrical surges or interference that are typical for industries.
Versatile Extension Solution
The ISW-621T features four quality 10/100Base-TX Auto-Negotiation ports and two 100Base-FX ports. The ISW-621T provides the 100Base-FX multi-mode SC interfaces for a transmission distance up to 2km. The two 100Base-FX ports on the unit offer even more flexibility for range extension without restrictions. This unit is ideal for either long distance or short distance deployment.
Simple Installation and Power Usage
The ISW-621T features a compact case that permits DIN rail or panel mounting to save space. It showcases an integrated power supply that includes a range of voltages for global operation. It provides dual-redundant, reverse polarity 12V DC to 48V DC power supply inputs for applications that require backup power or double the power. The ISW-621T features stable operation is various temperatures ranging from -40 up to 75°C.
Features:
- Ports: 4 10/100TX + 2 100FX (MM, SC, 2km)
- Type of Switch: Unmanaged
- Switch Fabric: 1.2Gbps
- Power Consumption: Max. 16W / 54 BTU
- Throughput: 0.89Mpps @ 64 bytes
- Operating Temperature: -40 to 75°C
- TAA Compliant
| Hardware Specifications | |
| Copper Interface | Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-XCable 10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.) |
| Optical Interface | Port
Mode Distance Wavelength Launch Power Receive Sensitivity Max. Input Power |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 442g |
| Power Requirements | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption / Dissipation | Max. 16 watts / 54 BTU |
| Installation | DIN rail kit and wall mount ear |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.2Gbps |
| Throughput (Packet Per Second) | 0.89Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex Flow Control |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Operating Humidity | Operating: 5~90% Storage: 5~90% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
