Industrial-Grade Fast Ethernet Switch

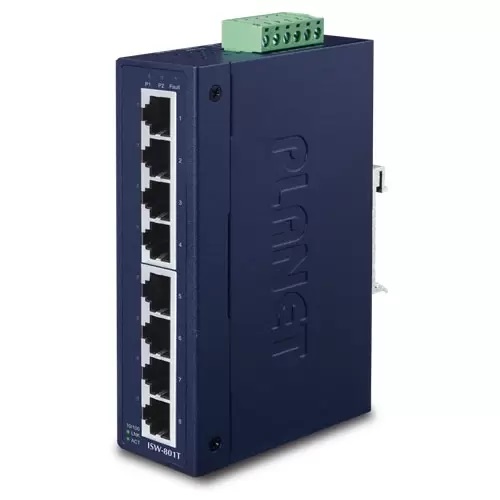

The ISW-801T is an industrial grade, 8-Port 10/100Mbps Industrial Faster Ethernet Switch designed to withstand the steep environmental conditions typical of industrial environments. The ISW-801T features a slim, compact IP-30 encasement that allows DIN rail or wall mounting. The Wide-Operating Temperature model operates in temperatures ranging between -40 to 75°C. The ISW-801T features a flexible power supply source that supports various voltages ranging between (12 to 48 V DC) to support to applications that need dual or backup power inputs.
Stable Operation
The ISW-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of plant floors or curb side traffic control cabinets. With the ability to operate in temperatures ranging from -40 to 75° C, the ISW-801T can be placed in almost any difficult environment. The ISW-801T is a power supply source that supports a wide range of voltages (12 to 48V DC) to support applications requiring dual or backup power inputs.
Robust Switch Performance
The ISW-801T offers a high-performing switch architecture. With 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps and the 2K MAC Address table, the ISW-801T can transfer packets at wire-speeds. The flow control function enables the ISW-801T to regulate data transfer. All RJ-45 copper interfaces in the ISW-801T support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard auto-MDI / MDI-X support can detect type of connection required regardless if special straight or crossover cables are used.
The ISW-801T a quality fast ethernet switch that includes a high quality IP-30 slim case.
Features:
- Ports: 8 10/100TX
- Type of Switch: Unmanaged
- Switch Fabric: 1.6Gbps
- Power Consumption: 11.6W / 39 BTU
- Throughput: 1.19Mpps
- Operating Temperature: -40 to 75°C
- TAA Compliant
| Hardware Specifications | |
| 10/100BASE-TX Auto MDI/MDIX Ports | 8 |

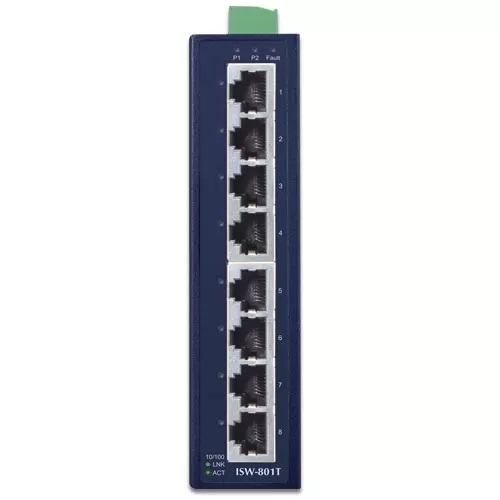

| LED Indicators | 3 x LED for System and Power |
| – Green: DC Power 1 | |
| – Green: DC Power 2 | |
| – Green: Power Fault1x LED for each Copper Port | |
| – Green: 10/100 LNK/ACT | |
| Enclosure | IP30-rated metal case |
| Dimensions (W x D x H) | 135 x 87 x 32 mm |
| Weight | 428g |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Power Requirements | 12 to 48V DC, redundant power input with polarity reverse protection, 24V AC power support |
| Power Consumption/Dissipation | 2.1 watts/7.1BTU |
| Installation | DIN rail kit and wall-mount ear |
| Alarm | Provides one relay output for power failure |
| Alarm relay current carry ability: 3A @ DC 30V | |

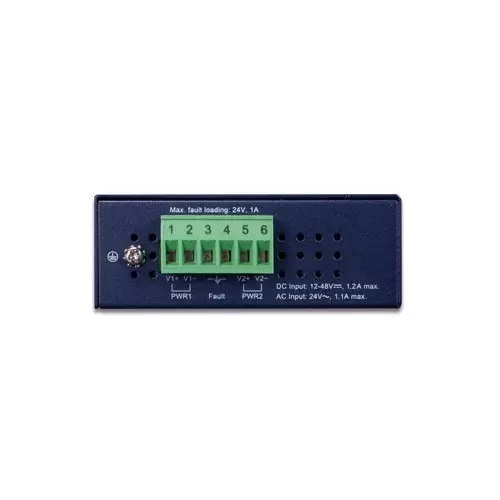

| Connector | Removable 6-pin terminal block |
| Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 | |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 1K |
| Buffer Memory | Embedded 448K bits packet buffer |
| Flow Control | Back pressure for half duplex, |
| IEEE 802.3x pause frame for full duplex | |
| Switch Fabric | 1.6Gbps |
| Throughput (packet per second) | 1.19Mpps |
| Network Cables | 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters |
| 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters | |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3x Full Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet | |
| Temperature | Operating: -40~75 degrees C |
| Storage: -40~75 degrees C | |
| Humidity | Operating: 5% to 95%, Storage: 5% to 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) |
| IEC60068-2-27 (shock-proof) | |
| IEC60068-2-6 (vibration-proof) | |
