Planet - IFT-805AT - IP30 Slim Type Industrial Fast Ethernet Media Converter SFP (-40 to 75 degree C)
Part number:
IFT-805AT
Price:
100FX Media Converter
The IFT-805AT media converter is ideal for industries and has the ability to lengthen the range of connection through fiber optic wire. Depending on the SFP module, the length can be simply extended up to 20km.
In addition, the unit works effectively in any environment with changing temperatures. The IFT-805AT is immune to temperature changes or electric interference and surges. This innovative media converter operates efficiently in temperatures ranging -40 to 75°C.
| Hardware Specifications | |

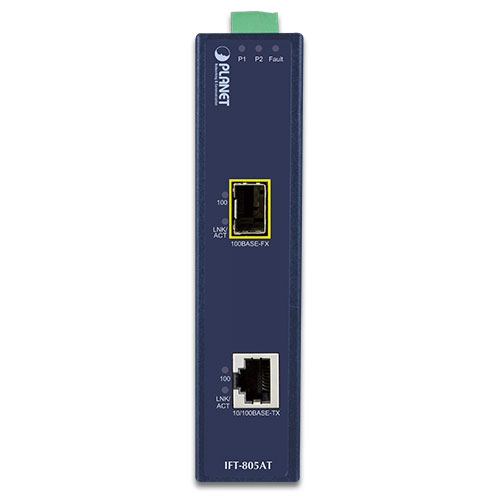

| 10/100Base-TX Port | 1 RJ-45 auto-MDI / MDI-X port |
| 100Base-FX Port | IFT-802T: 1 SC interface IFT-802TS15: 1 SC interface IFT-805AT: 1 SFP slot |
| Fiber Port Type | IFT-802T: SC / multi-mode IFT-802TS15: SC / single-mode IFT-805AT: Vary on module |
| Cable Distance | IFT-802T: 2km IFT-802TS15: 15km IFT-805AT: Vary on module |
| Optical Frequency | IFT-802T: 1310nm IFT-802TS15: 1310nm IFT-805AT: Vary on module |
| Launch Power (dBm) | Max IFT-802T: -14 IFT-802TS15: 0Min IFT-802T: -20 IFT-802TS15: -20Vary on module IFT-805AT |
| Receive Sensitivity (dBm) | IFT-802T: -32 IFT-802TS15: -32 IFT-805AT: Vary on module |
| Maximum Input Power (dBm) | IFT-802T: -14 IFT-802TS15: 0 IFT-805AT: Vary on module |
| Dimensions (W x D x H) | 135 x 85 x 32 mm |
| Weight | 430g |
| Installation | DIN rail kit and wall mount ear |
| Maximum Frame Size | 1522bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP-30 slim type metal case |
| LED Indicator | System: Power 1 (Green) Power 2 (Green) Fault (Green) 1 x copper port: 10/100 (Green) LNK/ACT (Green) 1 x 100FX port: 100 (Green) LNK/ACT (Green) |

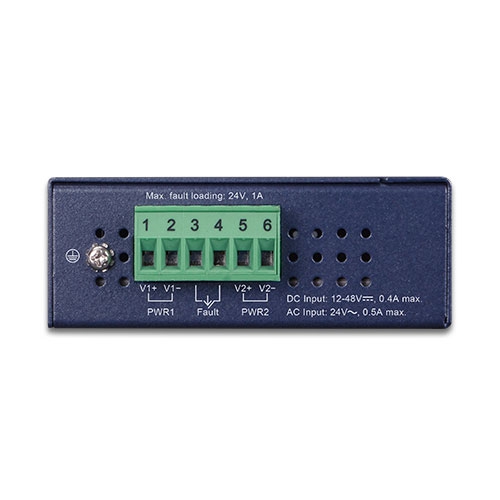

| Power Input | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption | 3 watts/ 10BTU (maximum) |
| Protection | ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
| Speed | Twisted-pair: 10/20Mbps for half / full-duplex 100/200Mbps for half / full duplex Fiber-optic: 200Mbps for full-duplex |
| Network cables | 10/100Base-TX: 2-pair UTP Cat. 3, 4, 5 (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 100Base-FX: IFT-802T: Multi-mode optical fiber 62.5/125μm / 50/125μm (2km) IFT-802TS15: Single-mode optical fiber 9/125μm (15km) IFT-805AT: SFP slot (depending on SFP module) |
| Standards Conformance | |
| Emissions | FCC Class A, CE Class A |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX IEEE 802.3x flow control and back pressure |
| Stability Testing | IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Operating Humidity | 5~90% non-condensing |
| Storage Temperature | -40~85 degrees C |
| Storage Humidity | 5~90% non-condensing |
