Industrial Fast Ethernet Switch
The ISW-800T-M12 from Planet Technology is crafted to offer quality protection with four quality features:
- IP67 metal strong case for industries
- M12 Ethernet connector
- Waterproof and dustproof features
- Wide temperature range support
Industrial Casing and Superior Ethernet Connector Interface

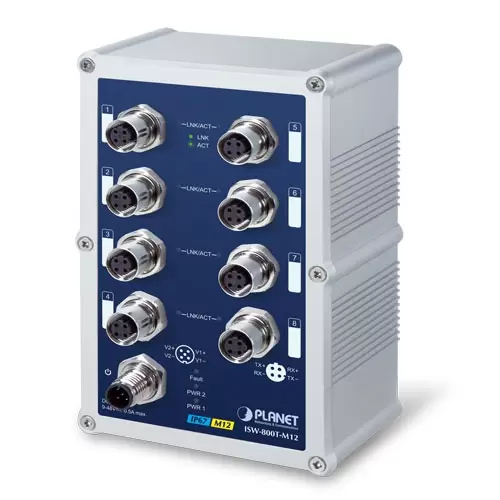

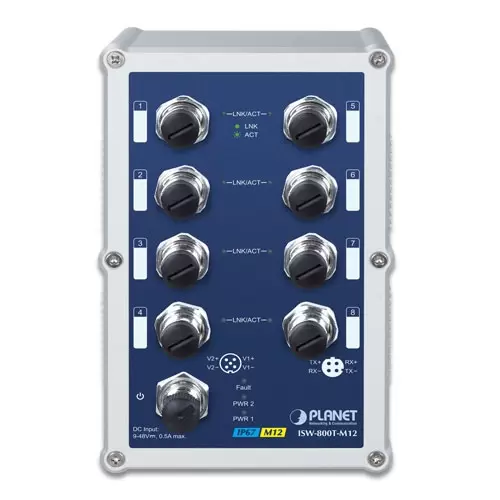

The ISW-800T-M12 is a 8-Port 10/100Mbps M12 industrial fast Ethernet switch from Planet Technology that showcases a durable metal casing. The unit offers resistance to harsh industrial conditions and allows for efficient wall mounting and installation. The ISW-800T-M12 features 8 ports that are 10/100Base-TX auto-negotiation ports with M12 connector interfaces. The M12 connectors offer efficient connectivity and provides quality Ethernet operation under tough conditions.
Stability in Harsh Environments
Since the unit operates efficiently in temperature ranges from -40 to 75°C, the unit is ideal for use worldwide and can be placed in almost any location. The ISW-800T-M12 features an integrated power supply source that features a range of voltages from 12 to 48V DC for applications that require additional or backup power.
Superior Switch Operation
The ISW-800T-M12 features a 2K MAC Address table and wire-speed packets transfer that does not risk packet loss. The unit’s high data throughput makes it a great choice for locations with Fast Ethernet. Since the ISW-800T-M12 features a 1.6Gbps internal switching fabric and auto negotiation support in each port, the unit has the ability to take on large data amounts.
The unit’s flow control function allows for efficient and quick data transfer. The M12 RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation to ensure speed detection that is efficient through RJ-45 Category 3, 4, 5, 5e, 6 cables. Auto-MDI/MDI-X support has the ability to determine connection type to Ethernet devices without additional cabling.
The ISW-800T-M12 is a 8-Port 10/100Mbps M12 industrial fast Ethernet switch from Planet Technology that showcases a durable metal casing.
Features:
- Ports: 8 10/100TX (M12)
- Type of Switch: Unmanaged
- Switch Fabric: 1.6Gbps
- Power Consumption: 4 Watts / 13 BTU
- Throughput: 1.19Mpps @ 64 bytes
- Operating Temperature: -40 to 75°C
- TAA Compliant
| Hardware Specifications | |
| 10/100Base-TX Ports | 8 x M12, 4-pin D-coded female connector |
| Power Connector | 1 x M12, 5-pin A-Coded male connector |
| Enclosure | IP67 aluminum |
| Dimensions (W x D x H) | 163 x 103 x 53 mm |
| Weight | 976g |
| Power Requirements | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption / Dissipation | 4 watts / 13 BTU |
| Installation | DIN rail kit and wall mount ear |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| LED Indicators | Power LED: Power 1 / Power 2 / FAULT (Green) 10/100Base-TX Port (Port-1 to Port-8): LNK/ACT (Green) |
| Network Cables | 10Base-T: 2-Pair UTP Cat.3,4,5 up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat.5, 5e, 6 up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, max.) |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.6Gbps |
| Throughput (packet per second) | 1.19Mpps@64Bytes |
| Maximum Transmit Unit | 1536 bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x full-duplex flow control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
| Standard Accessories | |
| Packet Contents | 1 x M12 4-pin D-coded male connector to RJ-45 Ethernet cable, 1.2m 1 x M12 5-pin A-coded female connector power cable, 1.2m 1 x wall-mount kit 1 x DIN-rail kit (attached to M12 switch as default) 1 x user manual |
