Cost-Optimized Managed PoE+ Switch for Small and Medium Businesses

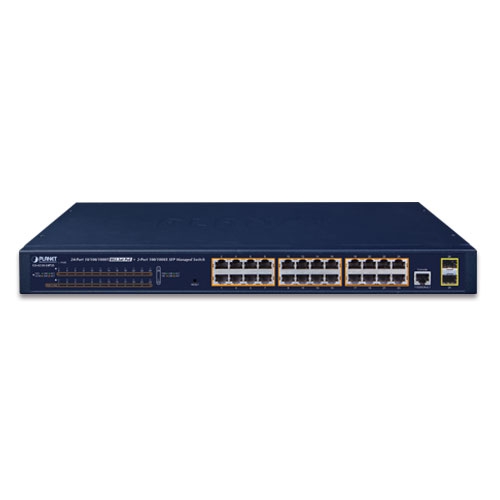

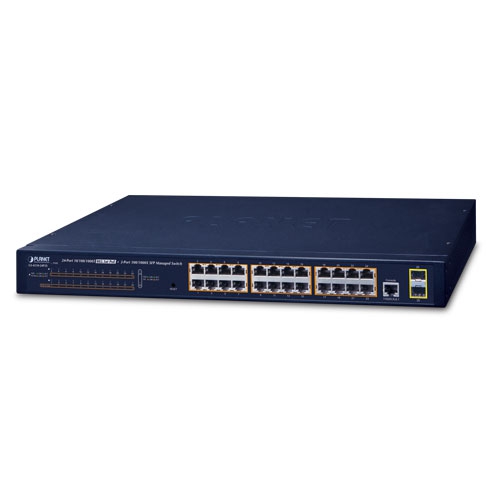

PLANET’s GS-4210-24P2S is an ideal Gigabit PoE Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. The model complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price. The GS-4210-24P2S is equipped with 24 10/100/1000Base-T Gigabit Ethernet ports and 2 100/1000Base-X SFP interfaces with inner power system. Its 24 Gigabit Ethernet ports integrated with 802.3at PoE+ injector function on all ports. It offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.

IEEE 802.3at/af Compliant Power Source Switch

The PoE in-line power following the IEEE 802.3at/af standard makes the GS-4210-24P2S able to deliver Gigabit speed data and up to 30 watts of power per port to 24 PoE compliant powered devices (PDs) with a combined power output budget of up to 300 watts. The GS-4210-24P2S provides more flexibility in power requirement for all kinds of PDs with affordable installation costs.

Robust Layer 2 Features

The GS-4210-24P2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Spanning Tree protocol (STP), Rapid Spanning Tree protocol (RSTP) and Multiple Spanning Tree protocol (MSTP), IGMP Querier and IGMP Snooping. Via aggregation of supporting ports, the GS-4210-24P2S allows the operation of a high-speed trunk to combine with multiple ports such as a 32Gbps fat pipe and supports fail-over as well. The Link Layer Discovery Protocol (LLDP) feature is also included and used to discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control

The GS-4210-24P2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast / multicast / unicast storm control, per port bandwidth control, 802.1p / CoS / IP DSCP QoS priority and remarking. It guarantees the best performance at VoIP and video stream transmission, and empowers the enterprises to take full advantages of the limited network resources.

Enhanced and Secure Management

For efficient management, the GS-4210-24P2S is equipped with console, Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the GS-4210-24P2S offers an easy-to-use, platform-independent management and configuration facility. By supporting standard Simple Network Management Protocol (SNMP), the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet and the console port. Moreover, the GS-4210-24P2S offers secure remote management by supporting HTTPS and SNMPv3 connections which encrypt the packet content at each session.

Powerful Security

PLANET’s GS-4210-24P2S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. The Port Security allows limiting the number of users on a given port. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before.

Flexible Extension Solution

The two mini-GBIC slots built in the GS-4210-24P2S are compatible with the 100Base-FX / 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitor center in long distance. The distance can be extended from 550 meters to 2km (multi-mode fiber) up to above 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

• Complies with IEEE 802.3at / af Power over Ethernet
• 300-watt PoE budget / Remote PoE Power Control
• IEEE 802.1Q tag-based VLAN / STP / RSTP / MSTP
• Static Trunk / LACP / QoS / Bandwidth control / Multicast IGMP snooping
• 802.1x RADIUS and TACACS authentication / L2~L4 ACL
• Console / Telnet / HTTP / HTTPs / SNMP Management interface

IPv4, 24-Port Managed 802.3at POE+ Gigabit Ethernet Switch + 2-Port 100/1000X SFP (300W PoE Budget, 250m Extend mode, supports ERPS Ring, MQTT and cybersecurity features), The GS-4210-24P2S is a 24 managed Switch with PoE capabilities.

Features:

• Ports: 24 10/100/1000TX + 2 100/1000X SFP + 1 console port
• Type: Managed
• PoE Ports: 24
• Standards: 802.3at/af
• Total PoE Budget: 300W
• Power Consumption: Max.330W/1122BTU
• Throughput: 38.6Mpps 64Bytes
• Operating Temperature: 0 to 50°C
• TAA Compliant
