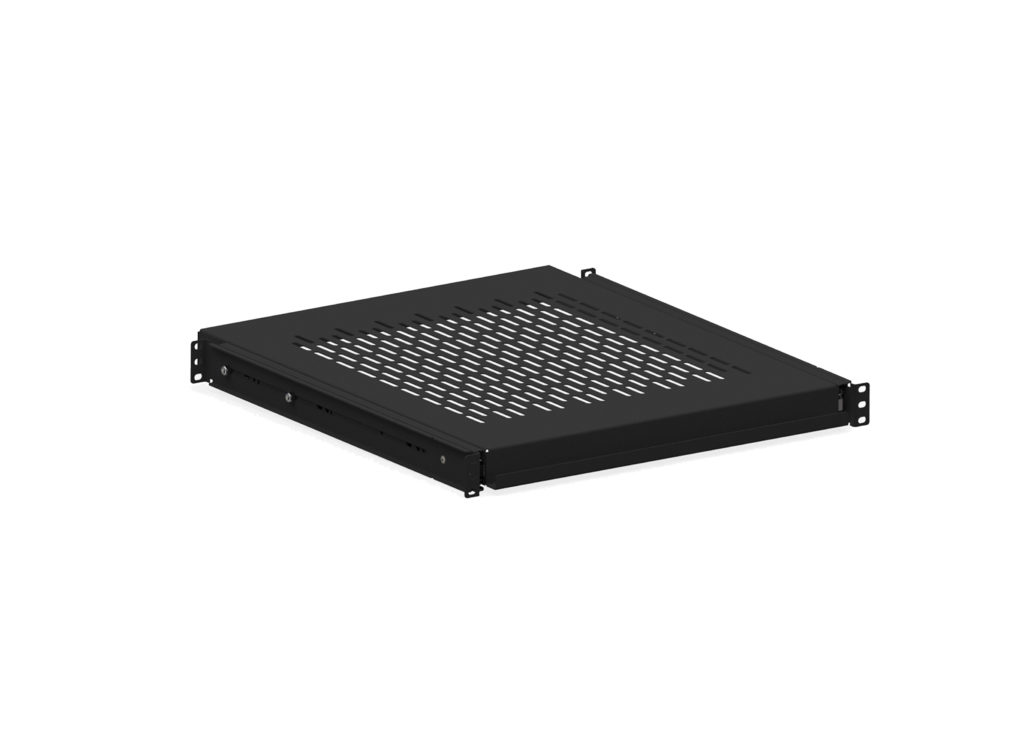

Kendall Howard manufactures and stocks two models of our sliding rack shelves (solid and vented), each holding up to a 100 lbs. Our sliding rack shelves are perfect for servers, keyboards, KVMs, switches, or any other component that you want the ability to slide out, either for convenience or to access the back of the equipment.
The sliding shelf can be mounted in 4-post racks and cabinets with various depths. The 4-point mounting style can adjust from 19″ to 28″ deep to suit your particular network racking solution.
The shelf extends a full 18″ out of the rack making it easy to assemble the back of mission control components and maintain your network equipment.

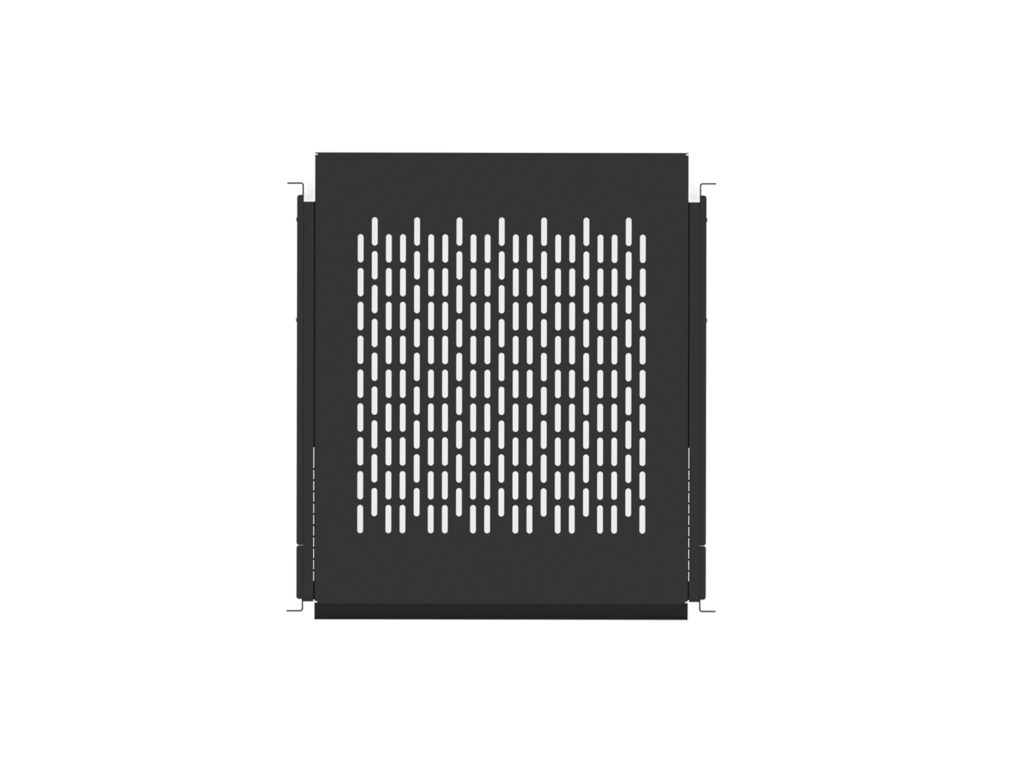

The venting pattern allows for maximum air flow.
The mounting ears will mount in any 19″ EIA compliant rack with a minimum mounting depth of 19″ and a maximum mounting depth of 28″. It has a built-in lip to make sliding them in and out easy. Due to their innovative design, the 20″ solid sliding rack shelf can be used as a 1U drawer.
All Kendall Howard rack shelves are made in the USA and are backed by our Limited Lifetime Warranty.
Features:
- Four mounting holes per U space
- 20" depth
- 100 lb. weight capacity
- Mounting depth adjusts from 19" to 28"
- 17.72" maximum slide extension
- Rounded corners
- 19" EIA compliant
- Easy to install
- Made in the USA
- Limited Lifetime Warranty
| Part Number | 1922-3-400-01 |
| Width | 19" |
| Depth | Adjustable 19" - 28" |
| Height | 1.72" |
| Weight | 14.00 lbs. |
| Shipping Dimensions | 23" L x 24" W x 6" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447002195 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
