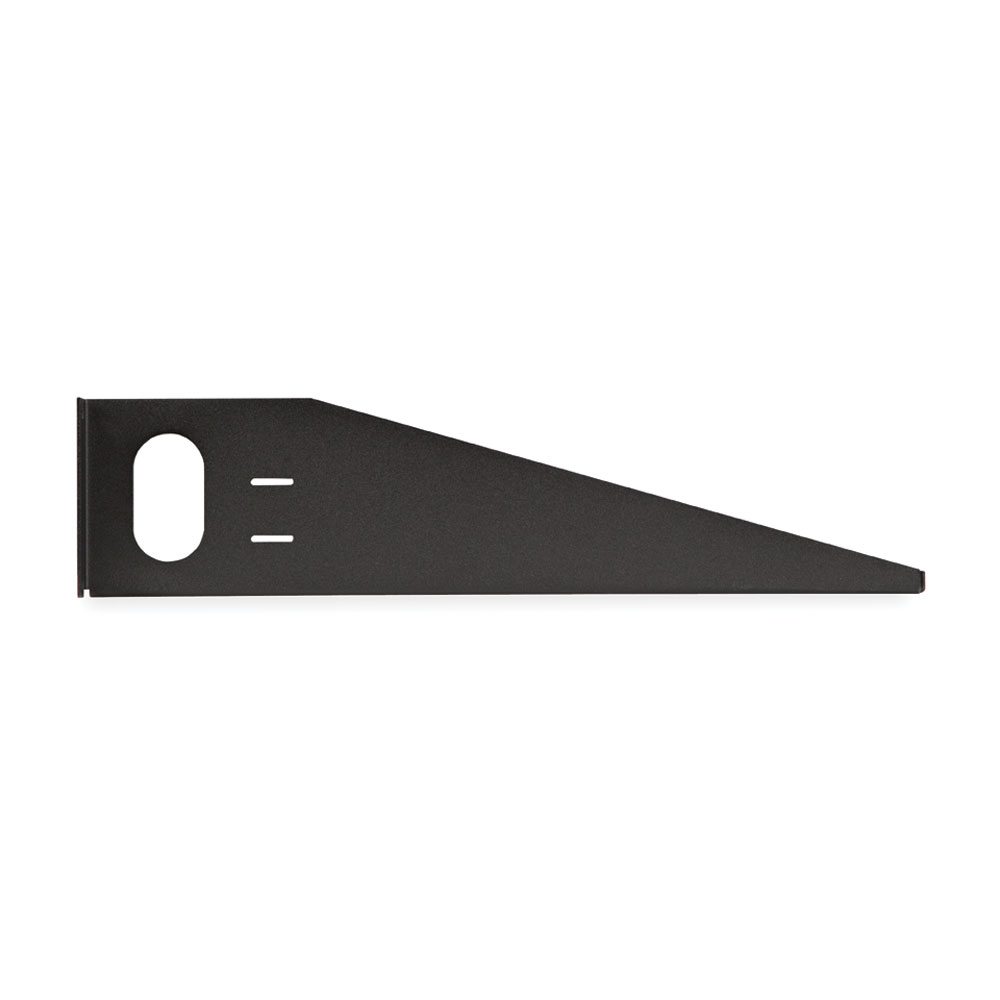

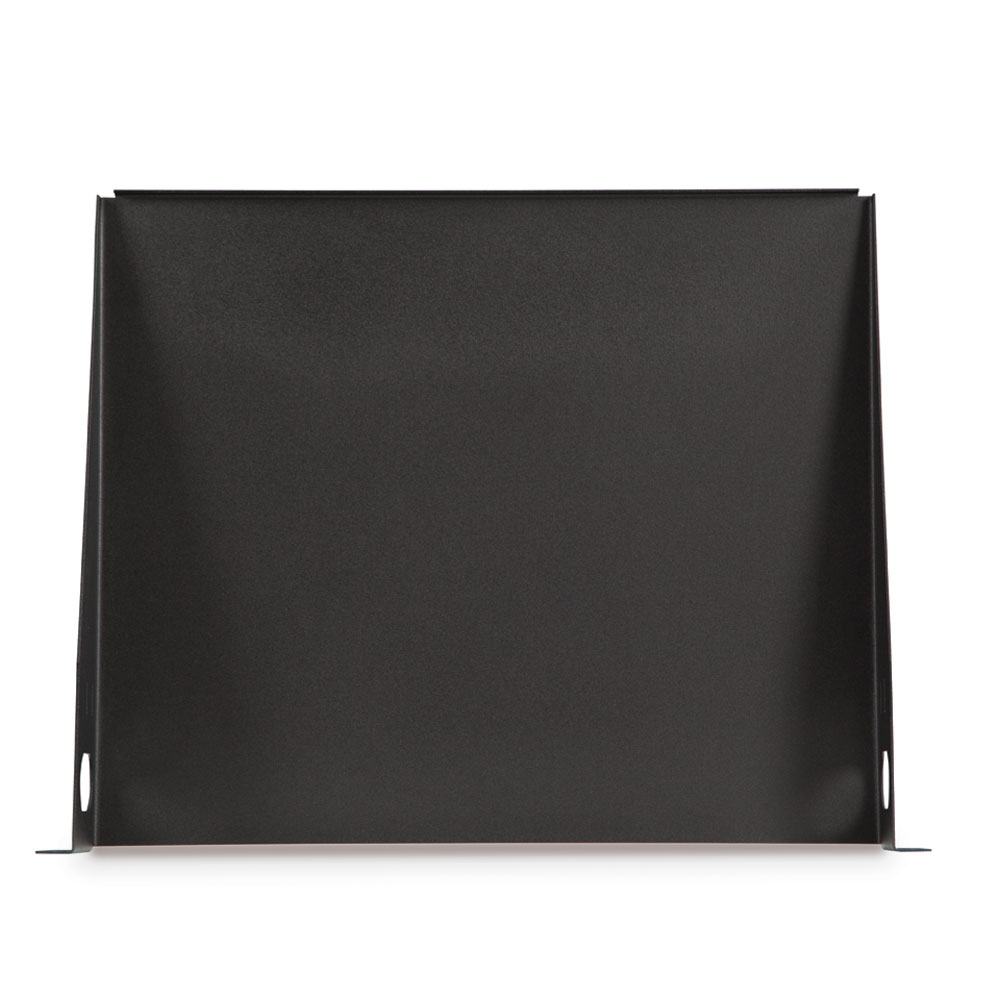

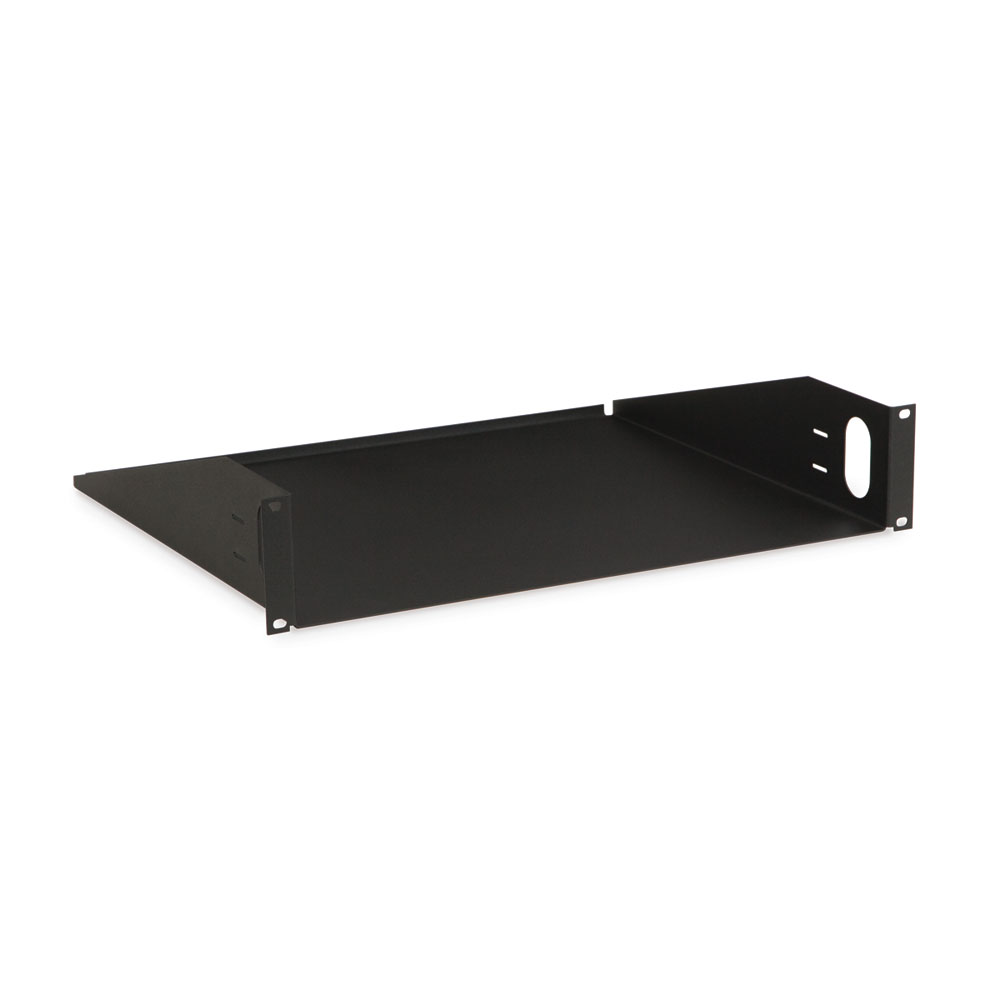

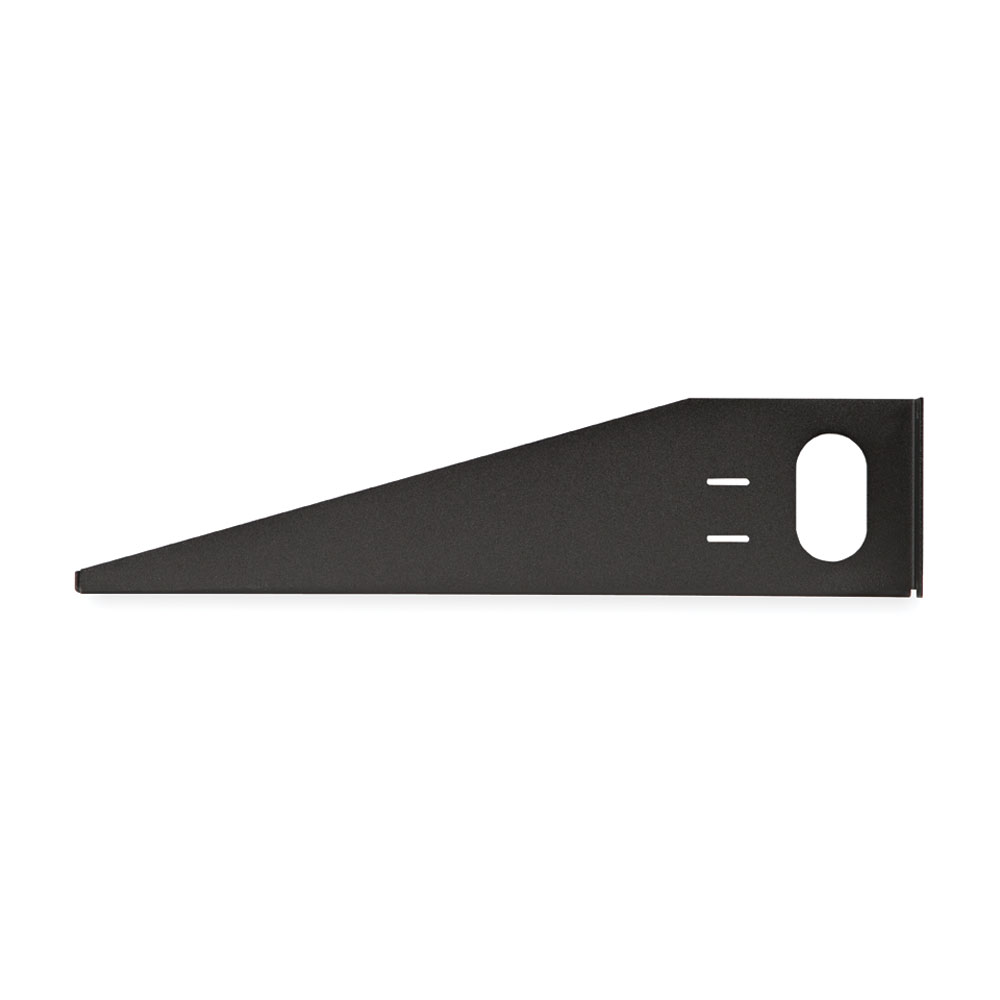

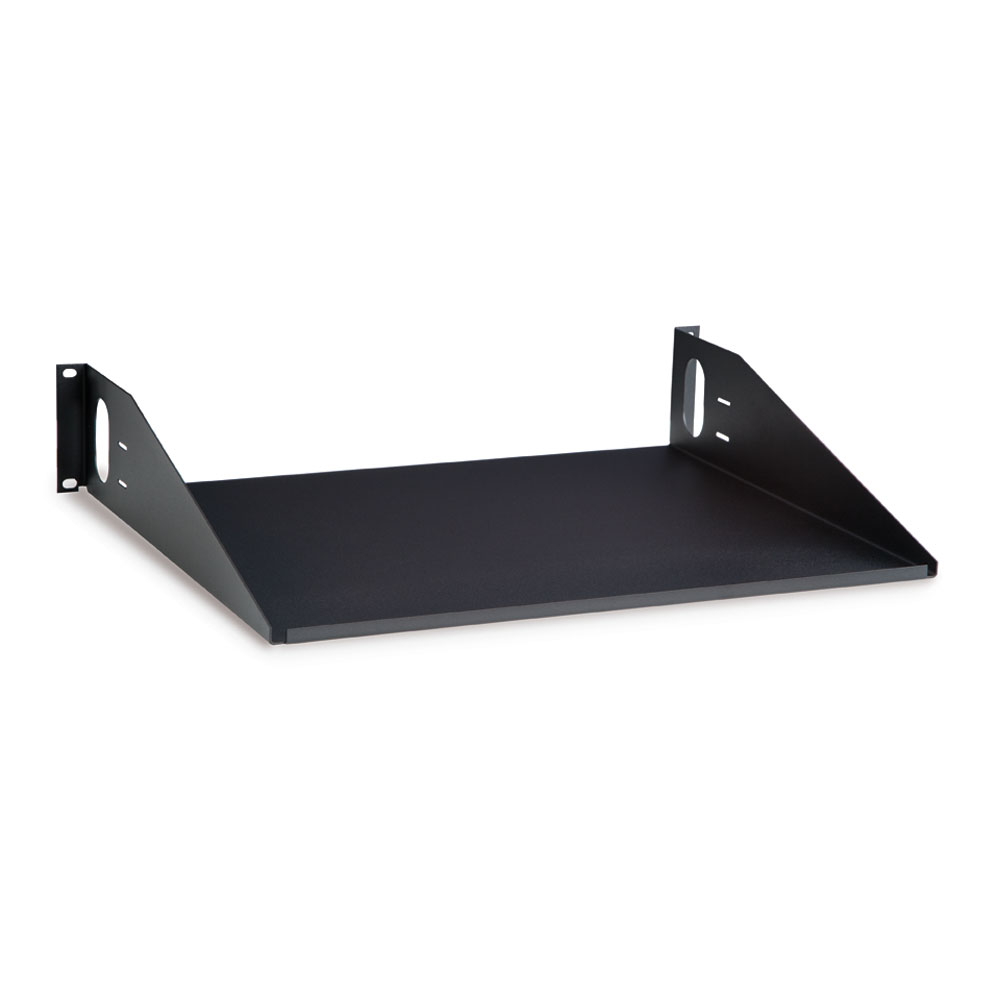

Kendall Howard - 3000-1-003-02 - Value Line 2U 14.75" Shelf
Part number:
3000-1-003-02
Price:
Kendall Howard offers a diverse line of rackmount component shelves, including the LINIER® Economy 2U 14.75" Component Rack. This rack is one of our value line shelves and was designed to accommodate any standard 19" rack. The dependable LINIER® Economy 2U 14.75" Rack Shelf is capable of holding up to five times its weight.
Two-Point Mounting:
Cantilever or two-point rack shelf is perfect for use in two-post racks, wall mount racks, and cabinets.
Easy to Install:
Each U space features four mounting holes. These mounting holes can be mounted with rack screws (and cage nuts if needed) to easily install in tapped or cage nut style mounting rails.
Rounded Corners:
Rounded corners reduce the risk of damage to your devices, cabling, and/or hands.
Features:
- Low cost light duty shelf
- 25 lb. weight capacity
- 14.75" deep
- 19" EIA compliant
- Made in the USA
- 5-Year Limited Warranty
| Part Number | 3000-1-003-02 |
| Width | 19" |
| Depth | 14.75" |
| Height | 3.47" |
| Weight | 5.85 lbs. |
| Shipping Dimensions | 21" L x 18" W x 5" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000948 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | FedEx Ground |
