Kendall Howard - 5200-3-411-00 - LAN Station 15” x 6” Louvered Panel
Part number:
5200-3-411-00
Price:

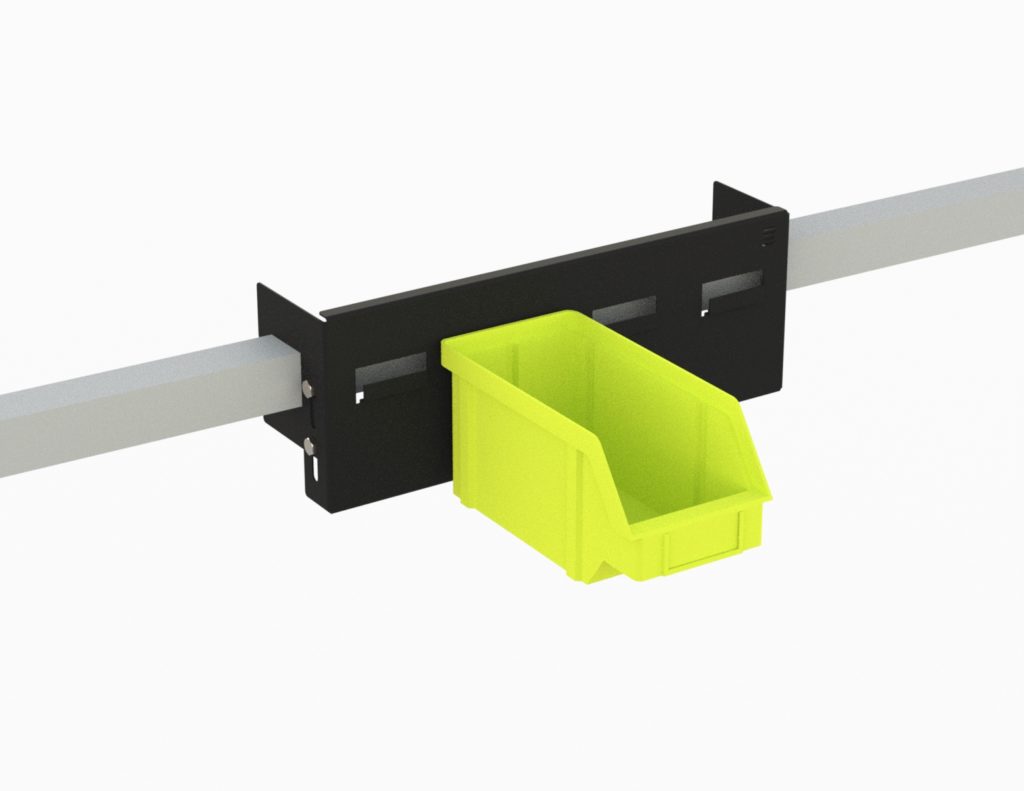

Keep small parts easily accessible with the Kendall Howard Single Rail Bin Mount.  Fits up to four 4” wide bins.  Compatible with most bin shapes and sizes.  Install is a breeze with the unique clamping mounts, just set it on the accessory bar (sold separate), slide up the bottom bracket and tighten the included hardware.  Bins and bin accessories sold separate.



Easy to install.

This bin mount can be installed within minutes due to the hanging top bracket design and simple clamping system.



Features:



  • Weight limit 20 lbs
  • Compatible with all stacking bins
  • Made in USA
  • Bin Mount accessories sold separate
  •  Mounts to Performance® and Performance Plus® Accessory bars. Requires separate purchase of one accessory bar.
  • Durable powder cost finish

Specifications

Part Number5200-3-411-00
Width15"
Depth4"
Height6"
Weight6lbs
Shipping Dimensions19"L x 6"W x 5"H
Material(s)CRS (Cold Rolled Steel)
ColorTextured Black Powder Coated Finish
UPC879447006094
WarrantyLimited Lifetime
Shipping MethodFedEx Ground

What's in the Box

ItemQuantity
Louvered Panel1
Left Mounting Bracket1
Right Mounting Bracket1
¼-20 Hex head screws8
