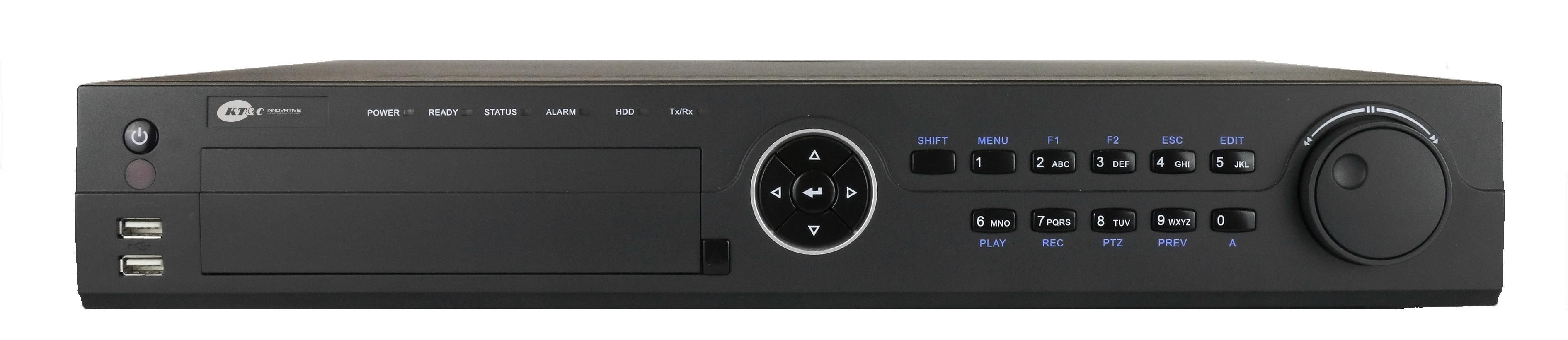

The KNR-p16Px16/6TB from KT&C is a 16 channel NVR with 16 plug and play ports, 6TB.

Features:

• Connect up to 16 IP cameras in any combination with no special licenses required
  - ‘Hands Free’ Plug-and-Play cameras on the 16 built-in PoE ports
  - Onvif or other supported IP cameras - Power cameras with up to 30W each (802.3at PoE) from a total of 200W built in PoE power
• Stream an aggregate bandwidth to the NVR of up to 80Mb/s from all connected cameras
  - Select camera resolutions up to 5MP
  - Set lower resolution/rate/image quality to meet application/installation requirements
• Local HDMI/VGA monitor displays at up to 1920x1080 and/or connect traditional analog/CVBS
  - Display different cameras/layouts on each monitor or duplicate display on HDMI & VGA outputs
  - Continue to view live HD video while reviewing playback on a separate HD monitor
  - Route event full screen pop-up to any monitor for simultaneous live, playback and aux/call views
  - Employ digital zoom in both live view and playback for expanded view of fine details
• Record based on schedule, motion, event/alarm, combinations, VCA or none
• Optional arming schedule for action/notifications and alarms (e.g. ignore on-camera motion from specific cameras during normal business hours)
• View, record and play main stream for detail, or sub-stream to conserve bandwidth and CPU resources
• Easy to use on-screen menus include digital zoom and instant playback of recent video
  - Operate using full front panel controls, wheel mouse or optional IR remote
• Quickly locate and review event video
  - Search by date/time, or preview images by pointing along a color coded timeline of record type
