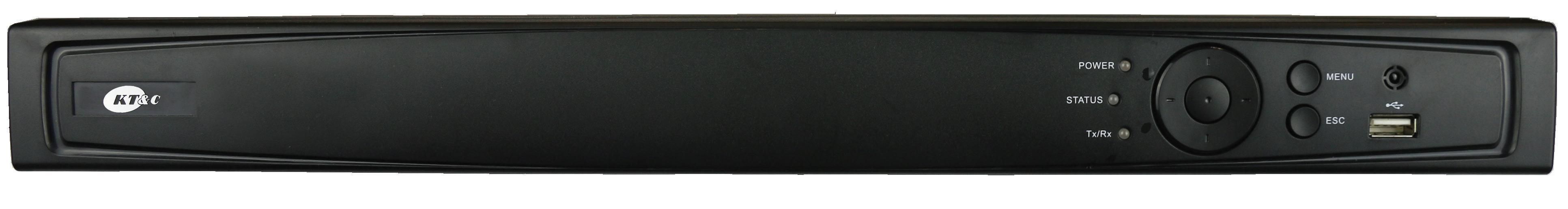

The KNR-p4Px4/8TB from KT&C is a 4 channel NVR with 4 plug and play ports, 8TB.
Features:
- Connect up to 4 IP cameras in any combination with no special licenses required
- ‘Hands Free’ Plug-and-Play cameras on the 4 built-in PoE ports
- Onvif or other supported IP cameras
- Power cameras with up to 15W each (802.3af PoE) from a total of 50W built in PoE power - Stream an aggregate bandwidth to the NVR of up to 20Mb/s from all connected cameras
- Select camera resolutions up to 5MP
- Set lower resolution/rate/image quality to meet application/installation requirements - Local HDMI/VGA monitor displays at up to 1920x1080
- Employ digital zoom in both live view and playback for expanded view of fine details
- Record based on schedule, motion, event/alarm or combinations
- Easy to use on-screen menus include digital zoom and instant playback of recent video
- Operate using front panel controls, wheel mouse or included IR remote - Quickly locate and review event video
- Search by date/time, or preview images by pointing along a color coded timeline of record type
- Play based on results of extensive event/alarm log search
- Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list instances of motion in that area for review by the operator - Optional arming schedule for action/notifications and alarms (e.g. ignore on-camera motion from specific cameras during normal business hours)
- View, record and play main stream for detail, or sub-stream to conserve bandwidth and CPU resources
- Easy to use on-screen controls including zoom and instant playback of recent video
- System automatically conserves resources by selecting sub-stream during multiple camera viewing
- User selectable viewing optimization for image detail of fluency of motion
- Choose up to 8Tb of internal HDD storage (optional mirroring), or record to external NAS/SAN
- Back up recorded video to any network connected NAS or FTP
- Easy remote access: view NVR over Internet without programming router: built-in uPnP router NAT/port mapping forwards ports automatically (*Router must support/permit uPnP function)
- Your choice of IE, Chrome, Firefox or Safari browsers to view live or playback video, or to manage NVR
- Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
- View multiple live/playback video streams on Android/iOS apps, or get HD viewing from tablet specific app
- Free Windows and MAC CMS Client for up to 64 live/16 playback views, manage and back up multiple sites
- Two way audio support (compatible camera required) from NVR, web screens and CMS
- Rack mountable 1U chassis (optional rack ears: KA-ORM1)
|
Streaming Video Inputs & Recording |
|
|
Maximum Number of IP Cameras |
4 |
|
Number of built in PnP/PoE Switch Ports |
4 |
|
Supported Live View/ Record Resolutions |
5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
|
Sub-stream |
Supported for recording, playback and live viewing |
|
Audio streaming |
Supported from audio capable cameras |
|
Maximum FPS rate per camera |
30FPS Main stream; 30FPS Sub-stream |
|
(Live and Record) |
Up to 120FPS total for 4 cameras |
|
Maximum Record Streaming Video Input Bandwidth (all cameras combined) |
20 Mb/s |
|
Recording Compression |
Depends on IP Camera; typically H.264 for main stream, MJPEG for sub-stream |
|
Recording Modes |
Continuous, Motion, Alarm, Motion+Alarm, Motion, Alarm, VCA, None |
|
Motion & VCA Detection |
Camera Side, configurable from NVR for KNC-p3 Omni IP Series Cameras |
|
Schedule Period |
Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays |
|
Pre- and Post- Event Recording |
Pre-record 0~30 seconds; post record 5s~10 minutes |
|
Built in network switch port speed |
10/100 Mb/s each port |
|
KT&C Omni-IP 'hands free Plug and Play' Cameras Fully Supported |
KNC-p3BR4IR, KNC-p3BR6IR, KNC-p3BR12IR, KNC-p3DR4IR, KNC-p3DR3IR,KNC-p3DR6IR, KNC-p3DR12IR, KNC-p3BR4XIR, KNC-p3BR6XIR, KNC-p3BR12XIR, KNC-p3TR4XIR, KNC-p3TR3XIR, KNC-p3TR6XIR, KNC-p3LR4IR, KNC-p3LR3IR, KNC-p3LR6IR, KNC-p3BR28V12IR, KNC-p3DR28V12IR |
|
Third Party Cameras Supported (requires traditional configuration and setup) |
Onvif; Acti, Arecont, Axis, Bosch, Brickcom, Canon, Hikvision, Hunt, Panasonic, Pelco, Sam- sung, Sanyo, Sony, Vivotek, Zavio |
|
Local Live Presentation of Streaming Video/Audio |
|
|
Local Display Main Monitor Outputs HDMI |
HDMI 60Hz: 1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768 |
|
Local Display Main Monitor Outputs VGA |
VGA 60Hz: 1920×1080P, 1600×1200, 1280×1024, 1280×720, 1024×768 |
|
Camera Display Layouts |
1, 2x2 |
|
Automatic Stream Selection |
Single camera view and 720p 2x2 at main stream resolution; Automatic switching to sub- stream resolution in other multi-view displays to conserve CPU capacity and maintain parity between per-camera screen area and image size |
|
Audio Output (requires audio equipped cameras) |
1-ch Line Level, RCA (Linear, 600Ω) |
|
Playback of Recorded Video/Audio |
|
|
Supported Playback Resolutions |
5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
|
Local Display Playback Maximum Video Bandwidth (all cameras combined) |
~8Mb/s nominal |
|
Nominal Local Playback Capability |
4 channels 720p; 2 channels 1080p; 1 channel 5Mpix (actual playback depends on decoding load which varies based on settings for recorded video bandwidth restrictions, resolution, image quality, FPS rate, compression efficiency, and complexity of pixel change in the scene) |
|
Playback search modes |
Time/Date; Event (Alarm, Motion, VCA); Manual Tags; Smart Search for motion events from recorded video |
|
Playback Controls |
Play; Pause; Forward/Reverse; speed control for single~1/8~4X; Slide bar with overview of record type and snapshot display from slider position |
|
Digital Zoom During Playback |
Supported on Local Displays and CMS |
|
Local Hard Drives and Other Storage |
|
|
Number of Internal Hard Drives |
Up to 2 SATA HDD; up to 6TB each for 12TB maximum |
|
Mirror Recording |
Can clone pairs of disks |
|
S.M.A.R.T |
With extensive statistics, alarms, on demand tests and reporting |
|
Record to |
HDD, NAS or SAN |
|
Archive to |
USB |
|
Local Plug and Play Camera Network Support |
|
|
Integral PoE Switch |
4 ports 10/100 Mb/s |
|
Camera Network Security |
Camera network is isolated from LAN/WAN port |
|
PoE Type |
802.3af 15W max per port |
