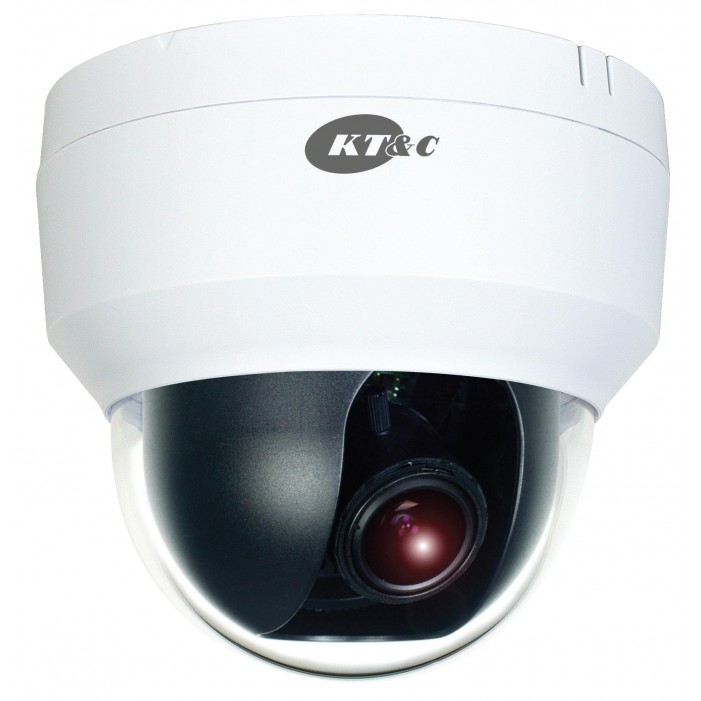

The KPC-DI28V12NW from KT&C is a 960H indoor dome camera. The 750TVL output allows for amazing image quality and the electronic day/night operation allows for 24/7 use. The KPC-DI28V12NW comes with a 2.8-12mm vari-focal lens.
Features:
- Superlative resolution of over 750 horizontal TV lines for amazing image quality
- 960H CCD with sensor sensitivity of .001 lux in low light without DSS boost
- Full motion color or digital day/night during low ambient light without ghosting
- Simple and easy to use OSD setup menu:
- Digital Wide Dynamic Range for proper contrast in challenging bright or unbalanced scene lighting conditions
- Anti Color Roll for proper white balance independent of fluorescent or other types of illumination
- Optional Back Light Compensation (BLC) and Highlight Compensation (HLC)
- Adjustable 2D-Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- 2.8-12mm 2 Megapixel Aspheric Vari-focal DC iris lens to capture the desired field of view
- Dual voltage (12VDC / 24VAC) with low current draw
- Service Video output for convenient installation, and ease of service
- 3-Axis gimbal for convenient wall or ceiling mounting with integral liner to inhibit observation of camera direction
- Included easy-mount twist-on plate (attach to surface; camera locks to plate); or, mount camera directly to surface
- White housing
|
Imaging Device |
1/3" 960H High Sensitivity CCD |
|
Video Format |
NTSC |
|
Picture Elements |
NTSC: 1020(H)x508(V) |
|
Effective Picture Elements |
NTSC: 976(H) x 494(V) |
|
Horizontal Resolution |
More than 750 TVL |
|
Sensitivity |
.001 lux native from sensor – no ghosting With lens: .2 lux |
|
S/N Ratio |
Over 50dB (AGC off) |
|
Video Output |
BNC 1.0V p-p 75Ω; video test point inside dome, cable supplied |
|
Gamma Correction |
0.45 |
|
Lens Type |
2 Megapixel Aspheric Varifocal DC Iris 2.8~12mm F=1.6 |
|
Lens Positioning |
3-axis flexible positioning for wall or ceiling mounting |
|
Back Light Compensation |
OFF/BLC/HLC Selectable |
|
Auto Gain Control |
Off/Low/Middle/High |
|
Electronic Shutter |
Auto; or 1/60, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/5000, 1/10000, 1/100000 |
|
White Balance |
ATW/AWB/AWC->SET/Anti-Color Roll/Manual |
|
Sync. Mode |
Internal (plus Anti Color Roll White Balance option above) |
|
Day & Night |
Electronic D/N control; Choose Auto or B/W |
|
OSD Menu |
Multiple functions using 3-axis joystick |
|
OSD Languages |
English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French |
|
2D-DNR |
On/Off (level adjustable) |
|
Digital Wide Dynamic Range |
On/Off (Level Adjustable) |
|
Mirror |
Off/On |
|
Motion Detection |
Off/On for 4 selectable zones (On screen indication) |
|
Privacy Mask |
Off/On for 8 selectable zones |
|
Lens Shading Correction |
Off/On with adjustable level and center |
|
Other OSD Functions |
Camera Title with position and Font Color; Image Contrast/Sharpness; CRT/LCD display optimization; Negative Image; DPC(Dead Pixel Compensation) |
|
Power Source |
12VDC/24VAC automatic |
|
Power Consumption |
12VDC:170mA max. / 24VAC:2.2W max. |
|
Operating Temperature |
5°F~140°F ; -15°C~60°C |
|
Environmental |
Indoor; up to 80%RH (non-condensing) |
|
Mechanical |
Three axis positioning; plastic housing with snap on cover; clear bubble for maxi- mum light transmission, with integral liner to inhibit observation of camera direction; choice of black body (B suffix) and white body (W suffix) |
|
Mounting Options |
Included easy-mount twist-on plate (attach to surface; housing base locks to plate); or, mount camera directly to surface if desired. Optional rough-in box adapter (KA-ICMP1) with integral twist-on fits 1 or 2 gang boxes or 4” octagonal boxes |
|
Dimensions |
4.21” (107mm) diameter, 3.82” (97.1mm) high With box adapter 5.91” (150mm) diameter x 4.18” (106.1mm) high |
|
Weight |
7.41 oz./ 0.46 lb / 210 g |
|
Mounting Options |
KA-ICMP1: Junction Box Plate |
|
Certifications |
CE / FCC / RoHS |
