Perfect Managed PoE+ Switch with L2+/L4 Switching and Security

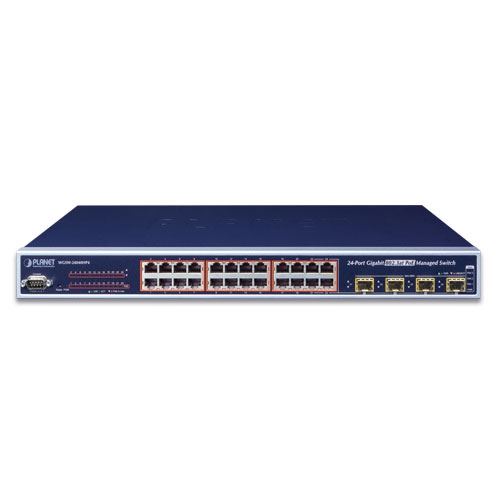

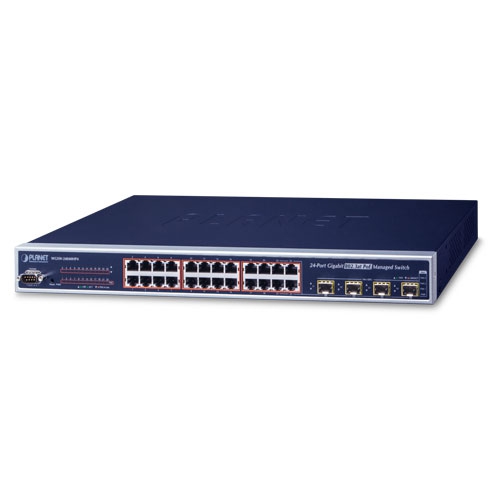

PLANET WGSW-24040HP4 Layer 2 Managed Gigabit Switch supports both IPv4 and IPv6 protocols and Layer 3 static routing, and provides 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 4 100/1000BASE-X SFP+ fiber slots. Each of the 24 Gigabit ports provides 36 watts of power, with a total power budget of up to 440 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

Network with Cybersecurity Helps Minimize Security Risks

The WGSW-24040HP4 comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks, it supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer’s critical equipment in a business network, the cybersecurity feature of the WGSW-24040HP4 protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.

Built-in Unique PoE Functions for Surveillance Management

As a managed PoE Switch for surveillance network, the WGSW-24040HP4 features the following intelligent PoE management functions:

• PoE Schedule
• PD Alive Check
• Scheduled Power Recycling
• SMTP/SNMP Trap Event Alert

PoE Schedule for Energy Saving

Besides being used for IP surveillance, the WGSW-24040HP4 is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the WGSW-24040HP4 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.

Intelligent Powered Device Alive Check

The WGSW-24040HP4 can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the WGSW-24040HP4 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.

Scheduled Power Recycling

The WGSW-24040HP4 allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.

SMTP/SNMP Trap Event Alert

Though most NVR or camera management software offers SMTP email alert function, the WGSW-24040HP4 further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.

Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature  ONVIF Support  which is specifically designed for cooperating with video IP surveillances. From the WGSW-24040HP4 GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and remotely monitor what is going on in the production line. Moreover, you can get real-time surveillance’s information and online/offline status, and can have PoE reboot control from GUI.

Solution for IPv6 Networking

With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the WGSW-24040HP4 is the best choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network.

IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the WGSW-24040HP4 not only provides ultra high transmission performance and excellent layer 2 technologies, but also offers IPv4/IPv6 VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

Robust Layer 2 Features

The WGSW-24040HP4 can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-5220-8P2T2S allows the operation of a high-speed trunk combining multiple ports. Supporting 12 trunk groups, it enables a maximum of up to 4 ports per trunk and supports connection fail-over as well.

Powerful Security

The WGSW-24040HP4 offers comprehensive layer 2 to layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Enhanced Security and Traffic Control

The WGSW-24040HP4 also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.

User-friendly Secure Management

For efficient management, the WGSW-24040HP4 is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, the WGSW-24040HP4 offers an easy-to-use, platform independent management and configuration facility. The WGSW-24040HP4 supports SNMP and it can be managed via any management software based on the standard SNMP v1 and v2 protocols. For reducing product learning time, the WGSW-24040HP4 offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the WGSW-24040HP4 offers remote secure management by supporting SSH, TLS and SNMPv3 connection which can encrypt the packet content at each session.

Flexible and Extendable Solution

The 4 mini-GBIC SFP slots built in the WGSW-24040HP4 support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. Now the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and up to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism

The WGSW-24040HP4 supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Features:

• Ports: 24 10/100/1000TX Shared 4 10/100/1000X TP/SFP
• Type: Managed
• PoE Ports: 24 PoE Ports
• Standards: 802.3at/af
• Total PoE Budget: 440W
• Power Consumption: 482W
• Throughput: 35.7Mpps/64Bytes
• Operating Temperature: 0 to 50°C
• TAA Compliant
