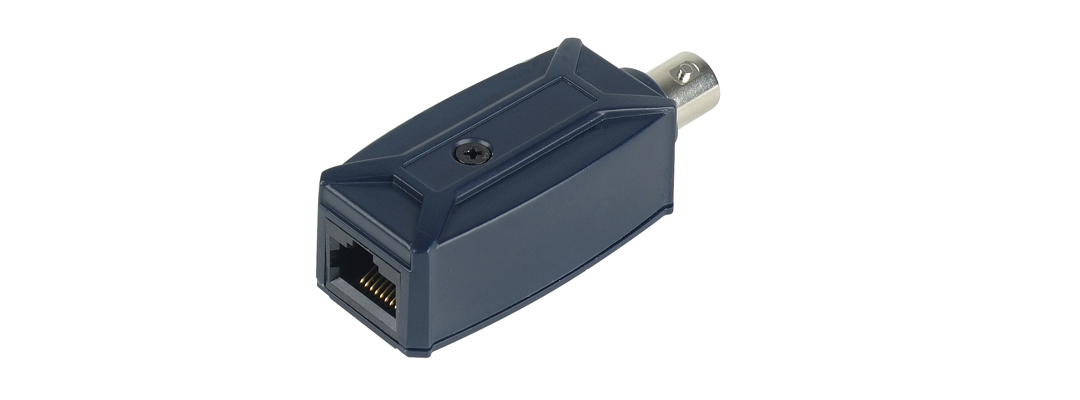

Lilin - PMH-IP01 - IP Cabling Transmission
Part number:
PMH-IP01
Price:
2 qty IP Over Coaxial Video Baluns, use with Converter Hub PMH-IP01H
Features:
- Send IP camera signal over existing coaxial cable.
- Passive, no power required.
- Exceeds 802.3 10BaseT specifications, isolating the receiver from the transmitted signal.
- Transmission up to 200 meters (Max).
| Model | PMH-IP01 |
| Network input | RJ45 × 1 |
| Link connector | BNC × 1 (1 Vp-p,75 Ohm) |
| Impedance | 50Ω to Dual 100Ω or 75Ω to Dual 100Ω or 93Ω to Dual 100Ω |
| Crosstalk | > 30 dB |
| Cable | Coax cable (RG59) max. 200m |
| Dimensions | 64x25x20.7mm |
| Weight | 25g |
