Hanwha - HNW-SS-800 - Line level ceiling mounted microphone. Omni-Directional pickup with 12’ radius/24’ diameter. 12Vdc power required @20mA. 30Hz-15kHz. 2.2kΩ Output Impedance, 60dB SNR, 3 1/8”D x 1’H
Part number:
HNW-SS-800
Price:

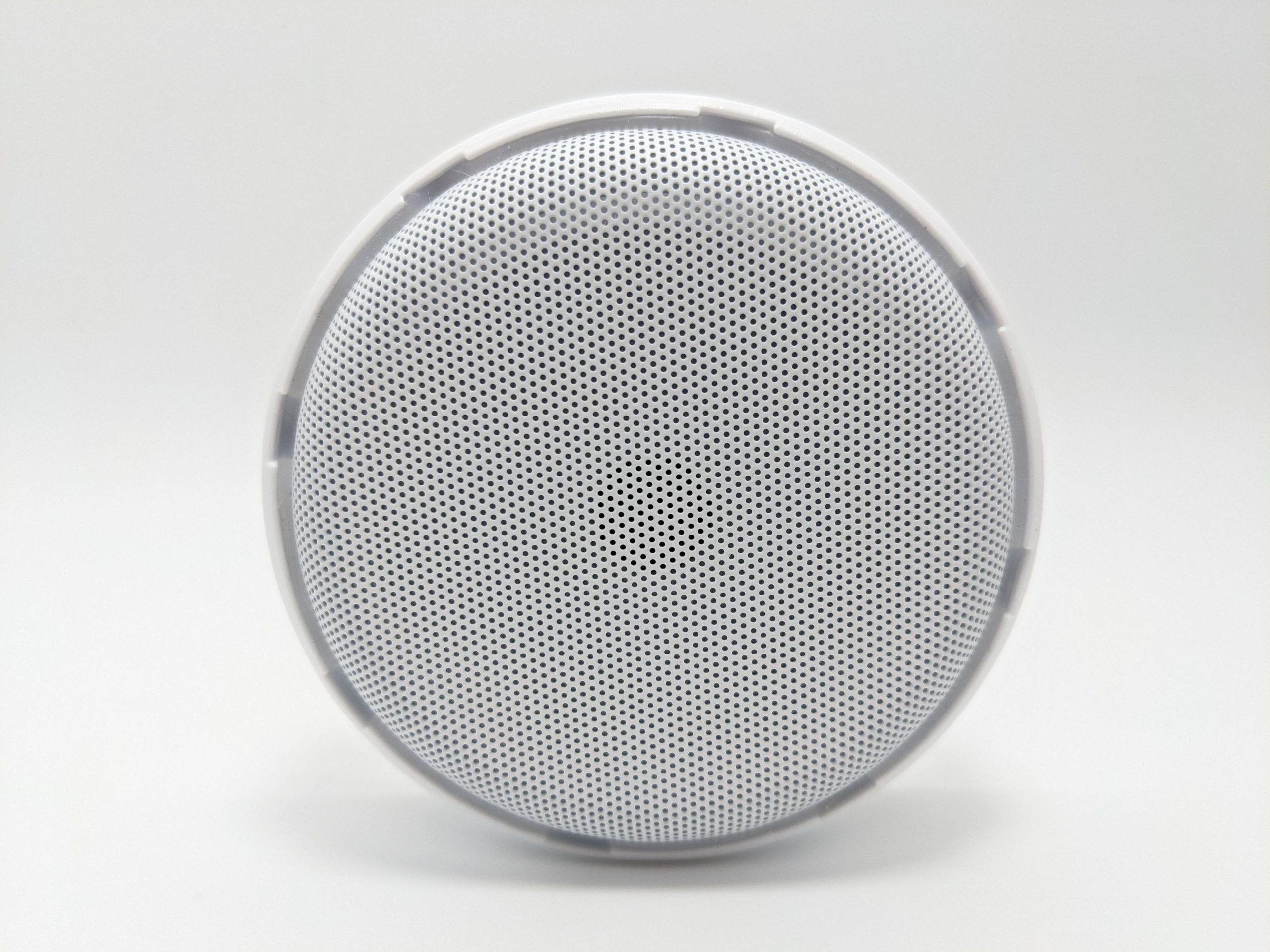

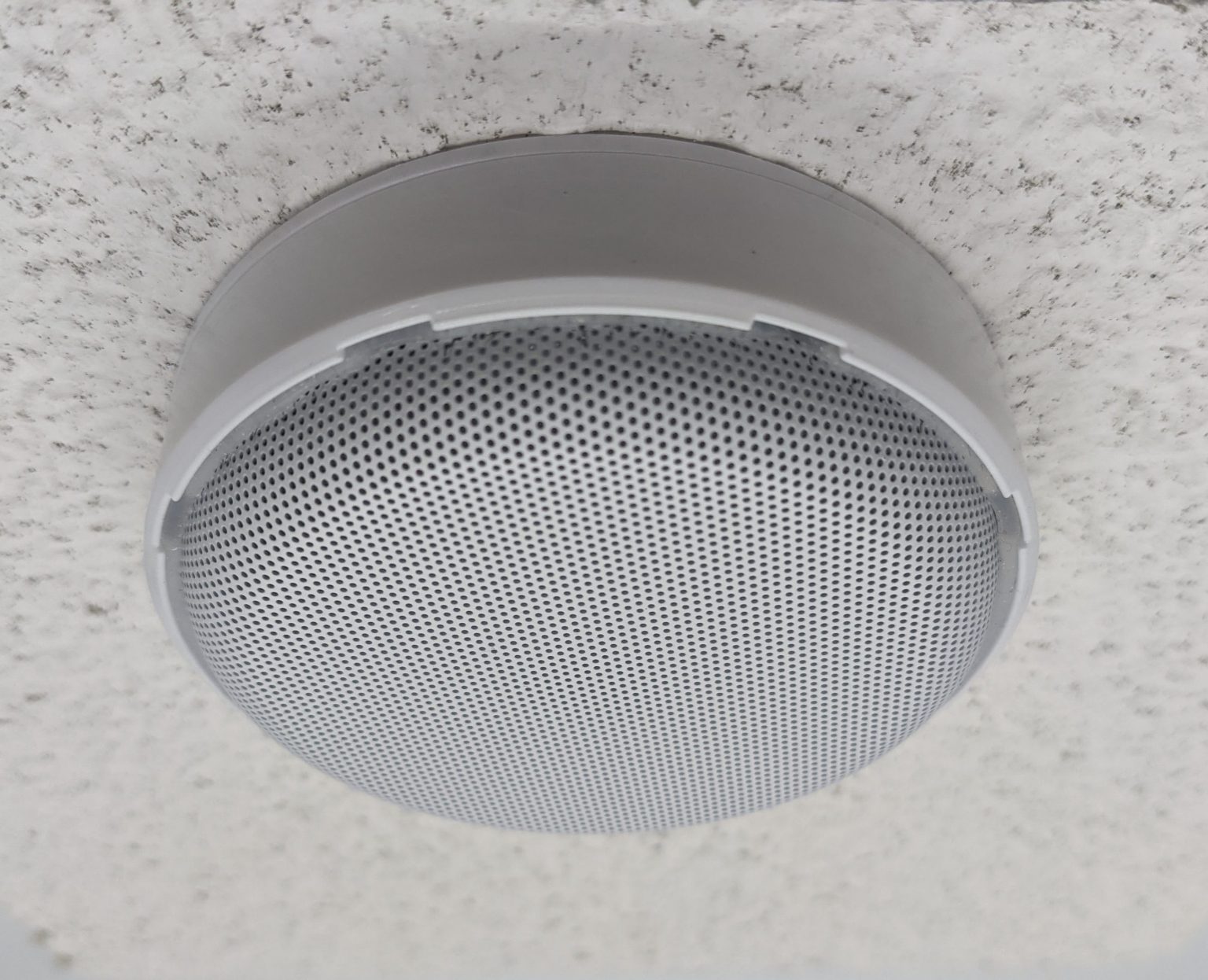

The SS-800 is an omni-directional line level microphone for indoor use in security systems. It is compatible with IP cameras and recorders. The SS-800 picks up sounds from approximately 12 feet away in all directions. Its enclosure surface mounts onto ceilings or walls with no exposed screws or connectors.
| Technical Specifications | |
| Sensitivity | -38db ± 2 |
| Frequency Response | 30Hz - 15kHz |
| Power Requirements | 12Vdc |
| Current | 20mA |
| Output Impedance | 2.2KΩ |
| SNR | 60 dB |
| Operating Temp | -25° - 70° C |
