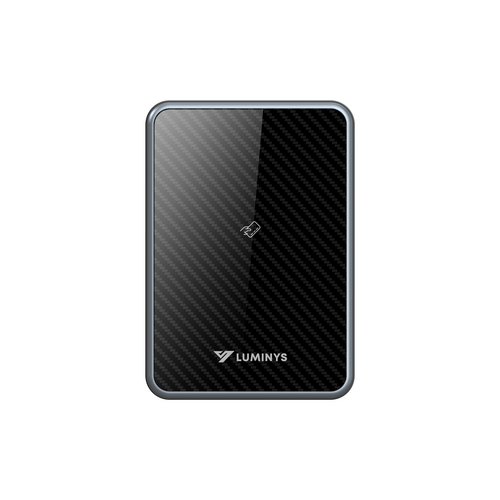

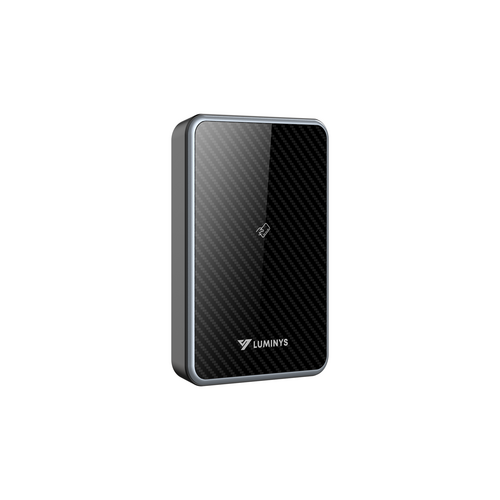

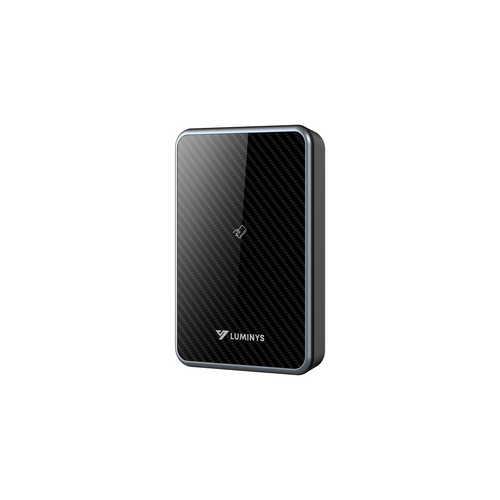

The R-WCA is part of Luminys’s access control product range. Luminys access control solutions are built for flexibility and scalability and provide reliable, secure access for applications of all sizes.
Key Technologies
Anti-passback technology prevents reentry using the same credentials without proper exit, enforcing strict access protocols in high-security areas.
Multi-credential capability allows for different authentication methods, such as card, PIN, or Bluetooth credentials (varies by model) to provide flexible and secure access control options.
Feedback indicators such as integrated LEDs and buzzers provide real-time audio and visual feedback during user interactions
Features:
- Supports MIFARE (IC) Card
- IP66 Protection for Indoor and Outdoor Use
- Supports RS-485 and Wiegand Communication Protocols
- Equipped with Anti-Tampering Alarm
- Surface Mount Design
- Read and Issues MIFARE (IC) Cards
- Buzzer and Indicator Light
- RS-485 and Wiegand Communication Protocols
- IP66 Protection For Indoor and Outdoor Use
| Specifications | |
| Card Reading Functions | |
| Card Type | IC (MIFARE) |
| Frequency Range | 13.56 MHz |
| Maximum Transmission Power | 42 dBm at 10 m |
| Verification Method | Card |
| Response Time | 0.1 s |
| Card Reading Distance | 0 in. to 2.0 in. (0.0 cm to 5.0 cm) |
| Interface | |
| RS-485 | One (1) Channel |
| Wiegand | One (1) Output Channel |
| Alarm | |
| Event | Tamper |
| Electrical | |
| Power Supply | 12 VDC, 0.5 A |
| Power Consumption |
|
| Construction | |
| Net Weight | 0.2 kg (0.4 lb) |
| Gross Weight | 0.4 kg (0.8 lb) |
| Product Dimensions (L × W × H) | 5.3 in. × 1.6 in. × 0.6 in. (135.0 mm × 40.0 mm × 15.0 mm) |
| Package Dimensions (L × W × H) | Inner Carton: 7.3 in. × 6.4 in. × 2.8 in. (185.0 mm × 163.0 mm × 71.0 mm) Outer Carton: 22.8 in. × 15.1 in. × 13.7 in. (578.0 mm × 383.0 mm × 349.0 mm) |
| Operating Temperature | 22 °F to 158 °F (-30 °C to 70 °C) 5% to 95% (RH), Non-Condensing |
| Protection Ratings | IP66 |
| Material | PC and Acrylic |
| Installation Method | 86 Case Mount, Surface Mount |
