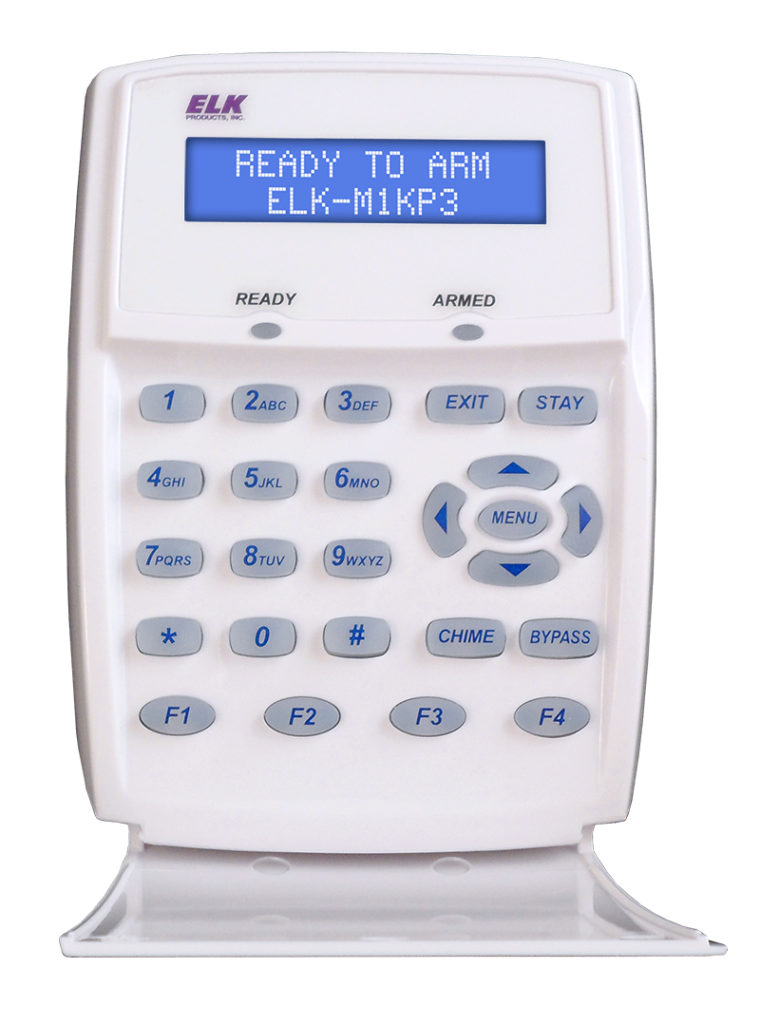

The ELK-M1KP3 is an addressable, surface mount LCD Keypad for the M1 family of Cross Platform Controls®. It features a 32 character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the ELK menu navigation keys. The M1KP3 is compatible with “external” 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc. It features a hinged door over the keys.

Features:

• Blue/white Backlighted Hi-Contrast LCD Display
• Four (4) Programmable Function Keys
• Unique Menu Navigation/Direction Keys
• Built-in Piezo Sounder with adjustable pitch
• Accepts “External” 26 bit Wiegand ProxReader (Opt.)
• Input for 1 Supervised Zone
• One Programmable “Switched Positive” Voltage Output
• Exit, Stay, Chime, and Bypass Keys
• Programmable display of time & date
• Displays system diagnostics and settings
• Surface mount only
