TX1310 Module

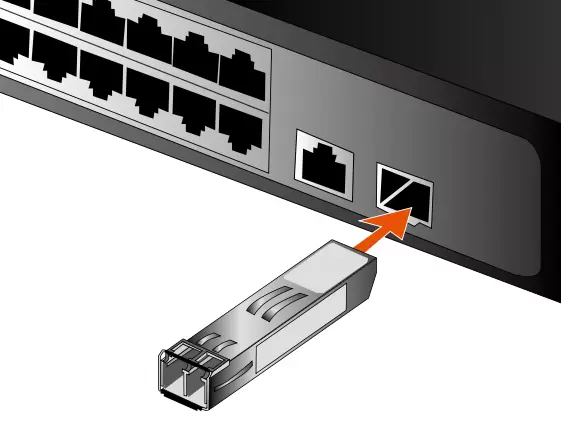

PLANET Technology’s extended temperature 1000Mbps Gigabit SFP Fiber Transceivers (-40 to 75°C) are the ideal Industrial Ethernet fiber solution that can reliably operate in electrically harsh and wide temperature range environments. These Small Form Factor Pluggable (SFP) transceiver modules operate with an integrated duplex data link over single mode optical fiber. PLANET Technology’s Small Form Factor Pluggable (SFP) transceivers work with PLANET’s Gigabit SFP interface to provide a reliable, high-performing Gigabit Ethernet network. The device’s hot pluggable feature enables network administers to easily install SFP MSA compliant ports without interrupting the host equipment in operation.

PLANET Technology SFP Optical Transceivers are designed for use with PLANET Industrial SFP Media Converters, PLANET Industrial Switches and third party equipment that supports Industrial SFP transceivers.

Features:

• PHY Type: 1000BASE-BX
• Fiber Type: Single Mode
• Connector: LC
• Wavelength: TX: 1310nm, RX: 1550nm
• Distance: 20km
• Operating Temperature: -40 ~ 75°C
