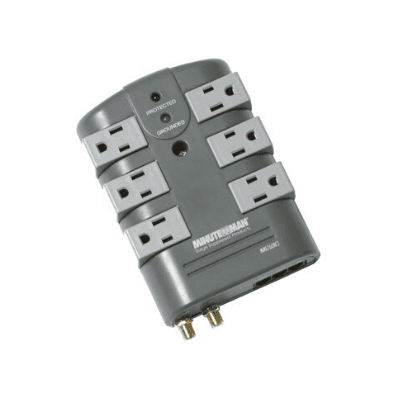

Minuteman - MMS760RCT - MMS Series 6-rotating outlet surge protector with coax and phone line protection
Part number:
MMS760RCT
Price:

Minuteman 'R' models feature 90° or 180° rotating outlets which accomodate multiple transformer blocks, making wasted outlets a thing of the past. Select models also feature cord management provisions, allowing for organized clutterfree installation.



Features:

  • 6 outlet wall tap, 8, 10, or 12 outlet strips
  • Rotating outlets allow multiple transformer blocks to be connected without covering multiple spaces
  • Up to 4320J of surge protection
  • Coax, network/phone line protection on select models
  • Cord management feature on select models
  • Up to $200,000 connected equipment protection
  • Limited Lifetime Warranty
MODELMMS760RCT
Electrical Rating15A, 120V, 1800 Watts
Joule Rating2160J
Outlet Quantity6
Dimensions (L x W x H) inches6.26 x 4.25 x 2.52
Rotating Outlets6
Protection TypeAdvanced X3 MOV
ModeL-N, L-G, N-G
UL clamping voltage330V, 400V, 400V
Maximum peak current144,000A
Max spike voltage6KV
EMI/RFI noise filter150KHz-100MHz
Frequency AttenuationUp to 40dB
Tel/Fax:RJ11/6P2C (1in/2out)
Jack Type160J
Energy1 Line
Line Protection
DSS/Coax: Surge ArrestorGas Tube
Breakdown Volts> 75V
Insertion Loss> 0.1dB
Line Protection1 Line
Surge protected indicatorYes
Ground OK indicatorYes
Surge circuit shutdownYes
Power safety shutdown (L-N)Yes
Safety ApprovalsUL 1449, UL 1363, cUL
WarrantyLimited Lifetime
