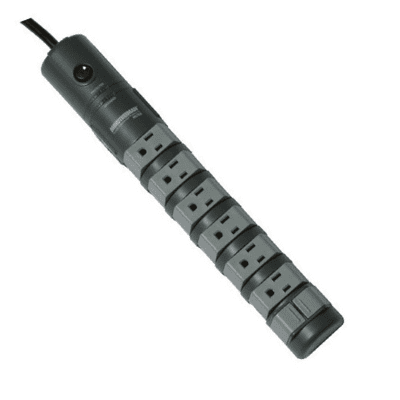

Minuteman - MMS780R - MMS Series 8-outlet Rotating Outlet Surge Protector
Part number:
MMS780R
Price:

Surge Strip 6-Rotating/2-Std Outlets 2160J

MMS 8-outlet/6-rotating outlet surge protector, rotating outlets designed for connecting multiple transformers, lifetime limited warranty, $100,000 connected equipment warranty protection, (6) 180-degree rotating outlets and (2) fixed outlets, UL 1449 certified, 15A, 120V, 1800 Watts, 2160 Joules, 7 ft. power cord. Minuteman 'R' models feature 90° or 180° rotating outlets which accomodate multiple transformer blocks, making wasted outlets a thing of the past. Select models also feature cord management provisions, allowing for organized clutterfree installation.



Features:

  • 6 outlet wall tap, 8, 10, or 12 outlet strips
  • Rotating outlets allow multiple transformer blocks to be connected without covering multiple spaces
  • Up to 4320J of surge protection
  • Coax, network/phone line protection on select models
  • Up to $200,000 connected equipment protection
  • Limited Lifetime Warranty
  • Rotating outlets designed for connecting multiple transformers
  • Six 180° rotating outlets and two fixed outlets
  • Wall mountable
  • Cord management design
  • Seven foot power cord
  • UL 1449 certified
  • Lifetime limited warranty
  • $100,000 connected equipment warranty protection
  • 2160 Joules
  • Model MMS780R
MODELMMS780R
Electrical Rating15A, 120V, 1800 Watts
Joule Rating2160J
Outlet Quantity8
Dimensions (L x W x H) inches14.02 x 3.54 x 2.28
Rotating Outlets6
Switch/Circuit Breaker2 position on/off
15A AC circuit breaker
Protection TypeAdvanced X3 MOV
ModeL-N, L-G, N-G
UL clamping voltage330V, 400V, 400V
Maximum peak current144,000A
Max spike voltage6KV
EMI/RFI noise filter150KHz-100MHz
Frequency AttenuationUp to 40dB
Power cord length7 ft.
Surge protected indicatorYes
Ground OK indicatorYes
Surge circuit shutdownYes
Power safety shutdown (L-N)Yes
Cord ManagementYes
Accessories
Safety ApprovalsUL 1449, UL 1363, cUL
WarrantyLimited Lifetime
