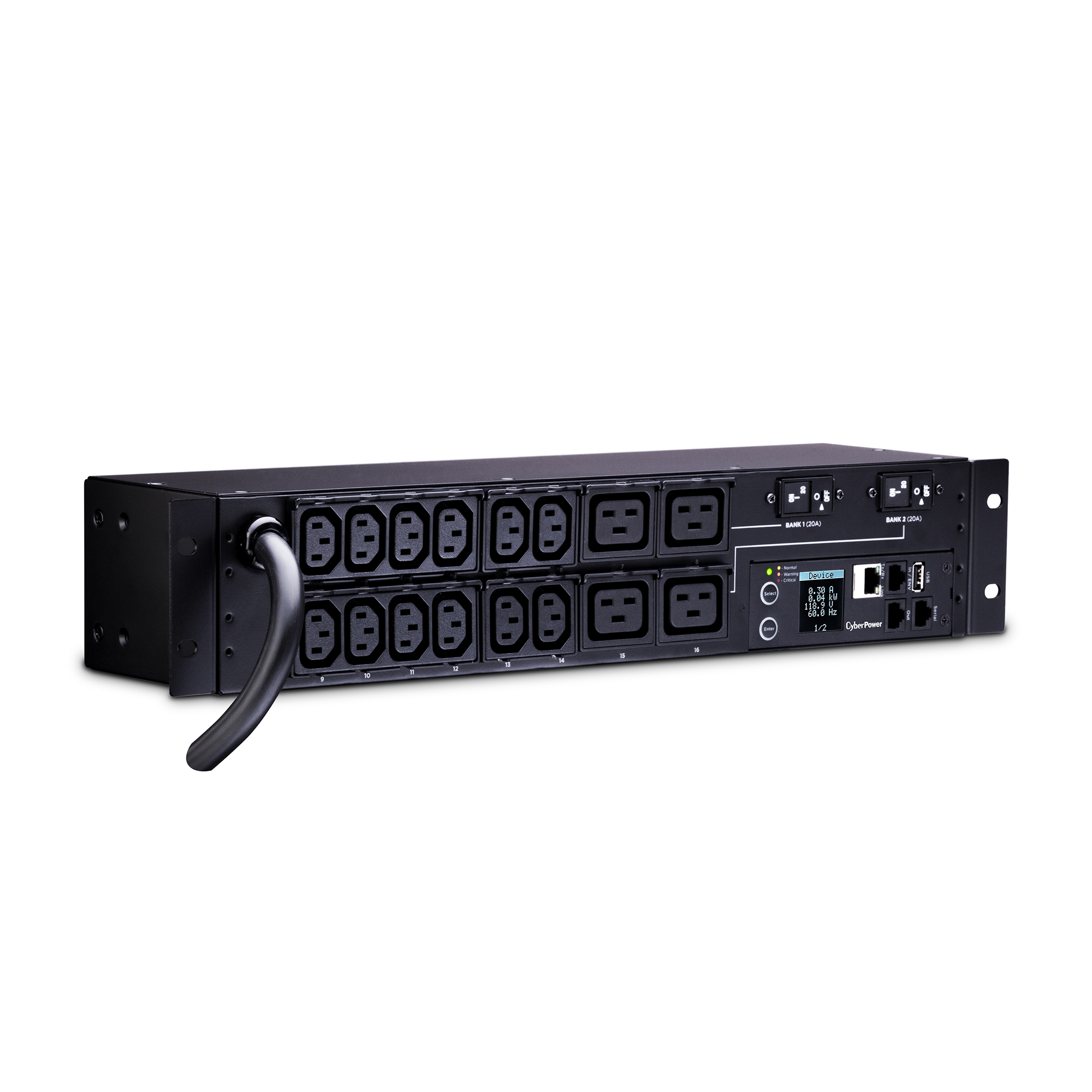

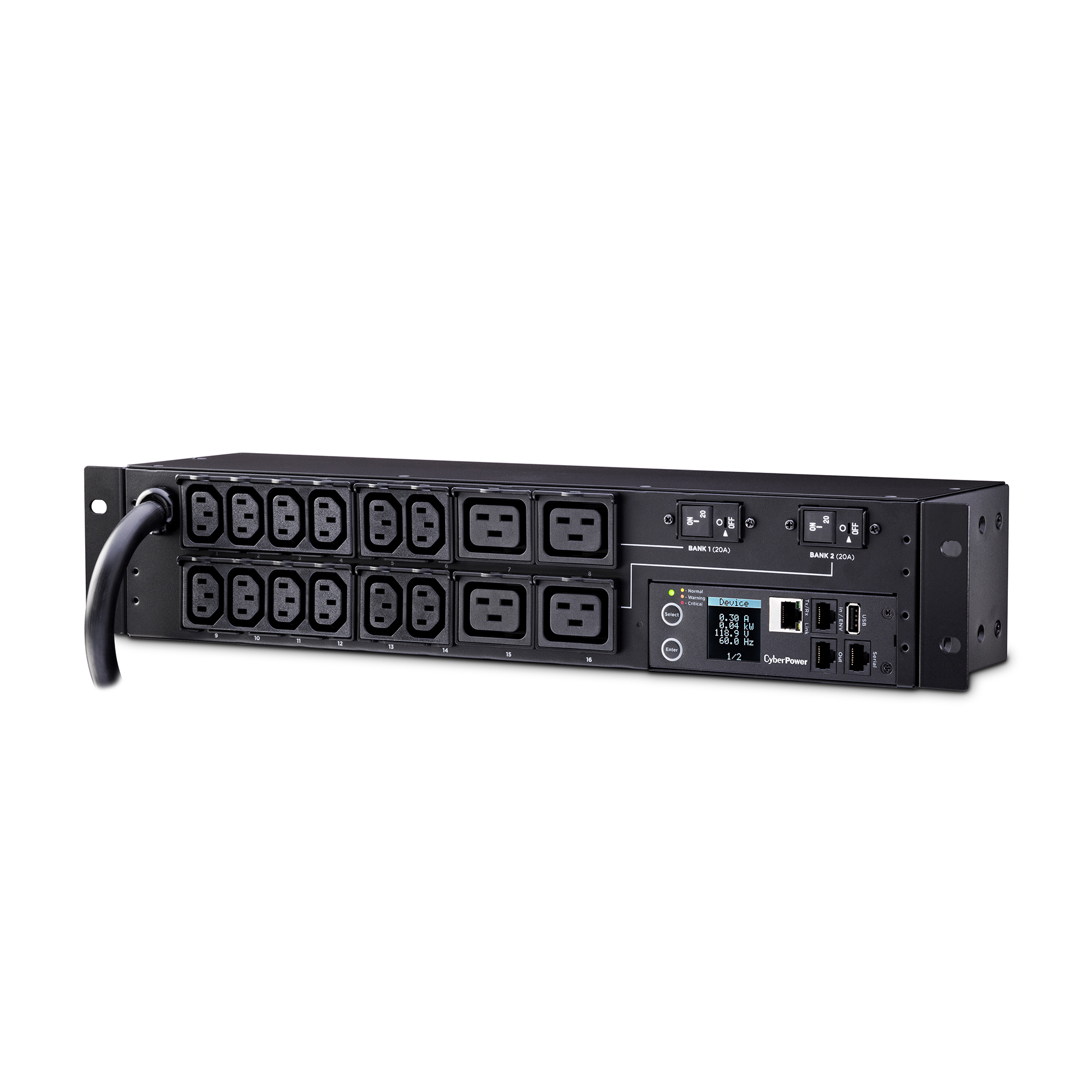

Cyber Power - PDU31008 - Monitored PDU 30A 240V (12) IEC-C13 (4) IEC-C19 Outlets L6-30P 12ft Cord SNMP 2U
Part number:
PDU31008
Price:

Monitored PDU 30A 240V (12) IEC-C13 (4) IEC-C19 Outlets L6-30P 12ft Cord SNMP 2U 3YR WTY



The CyberPower PDU31008, a 2U rackmount, monitored power distribution unit (PDU) provides 200-240Vac, 30A output via twelve (12) IEC C13 and four (4) IEC C19 receptacles from a single NEMA L6-30P input power plug. Configure and monitor this unit over the network using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.



The PDU31008 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.



Product Features:

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.



  • Switch-Free Design
    Safeguards against accidental power shutdown.



  • CyberPower Management Console
    Built into Monitored PDUs, a CyberPower Management Console is a hardware interface. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.



  • Remote and Local Monitoring
    Enables offsite and onsite tracking of PDU vitals.



  • Automatic Event Notifications
    Provide immediate updates about power events via email, SMS text, or SNMP traps.



  • Upgradeable Firmware
    Downloadable improvements (firmware updates) to programs that run the PDU.



  • Power Control Display
    Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.



  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.



  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it’s needed.



  • Twist Lock Plug
    Secures an outlet by twisting and locking into place to prevent accidental disconnection.



  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.



  • Configurable Mounting Brackets
    Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).



  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also, extends the life of the product.



  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Input
Cord Length12 ft (3.7 m)
Derated Input Current24 A
Input Frequency Range50 Hz – 60 Hz
Input Plug TypeNEMA L6-30P
Maximum Input Current30A
PhaseSingle Phase
Plug StyleStraight
Output
Controllable Outlets0
Meter ReadoutPower Control Display
Nominal Output Voltage200 – 240 VAC
Outlet Type12 – IEC-320 C13, 4 – IEC-320 C19
Outlets – # of Banks2
Outlets – Front16
Outlets – Rear0
Outlets – Total16
Overload Protection20A x 2
Overload Protection (Each Bank)20A
USB Charge PortNo
Management & Communications
Hardware Connection PortRJ45, Serial
LED IndicatorsTx/Rx, LINK & Normal/Warning/Critical Status
SNMP / HTTP Remote MonitoringIPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Physical
Adjustable Mounting Brackets1 set
ColorBlack
Cord Retention Tray/Cord OrganizersYes
External Site Ground PinYes
Form Factors SupportedHorizontal or Vertical Wallmount, Horizontal or Vertical Mount in a Variety of Other Surface Types
Material of ConstructionMetal
Rack Height2U
StyleHorizontal Rackmount, Wallmount
Dimensions
Physical Dimensions – (WxHxD) (cm)43.31 x 8.89 x 11.2 (cm)
Physical Dimensions – (WxHxD) (in)17.05 x 3.5 x 4.41 (in)
Physical Dimensions – (WxHxD) (mm)433 x 89 x 112 (mm)
Physical Weight (kg)4.08
Physical Weight (lb)9
Dimensions – Shipping
Shipping – Weight (kg)4.49
Shipping – Weight (lb)9.9
Shipping Dimensions – (WxHxD) (cm)26.04 x 15.14 x 50.17 (cm)
Shipping Dimensions – (WxHxD) (in)10.25 x 5.96 x 19.75 (in)
Shipping Dimensions – (WxHxD) (mm)260.35 x 151.38 x 501.65 (mm)
Environmental
Operating Elevation0 – 11483 ft (0 – 3500 m)
Operating Relative Humidity0 – 95 % (non-condensing)
Operating Temperature32 – 113 °F (0 – 45 °C)
Storage Elevation0 – 49213 ft (0 – 14999 m)
Storage Temperature5 – 131 °F (-15 – 55 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL 60950
Warranty
Extended Warranty OptionWEXT5YR-PDU1A
Product Warranty3 Year Limited Warranty
