Cyber Power - PDU31106 - MONITORED PDU, 30A (DERATED TO 24A), 200-240V, 50/60 HZ
Part number:
PDU31106
Price:

MONITORED PDU, 30A (DERATED TO 24A), 200-240V, 50/60 HZ, 36 x IEC-320 C13 OUTLETS + 6 x IEC-320 C19 OUTLETS, NEMA L6-30P PLUG, 10 FT CORD, 0U RACKMOUNT, SNMP, 3YR WARRANTY

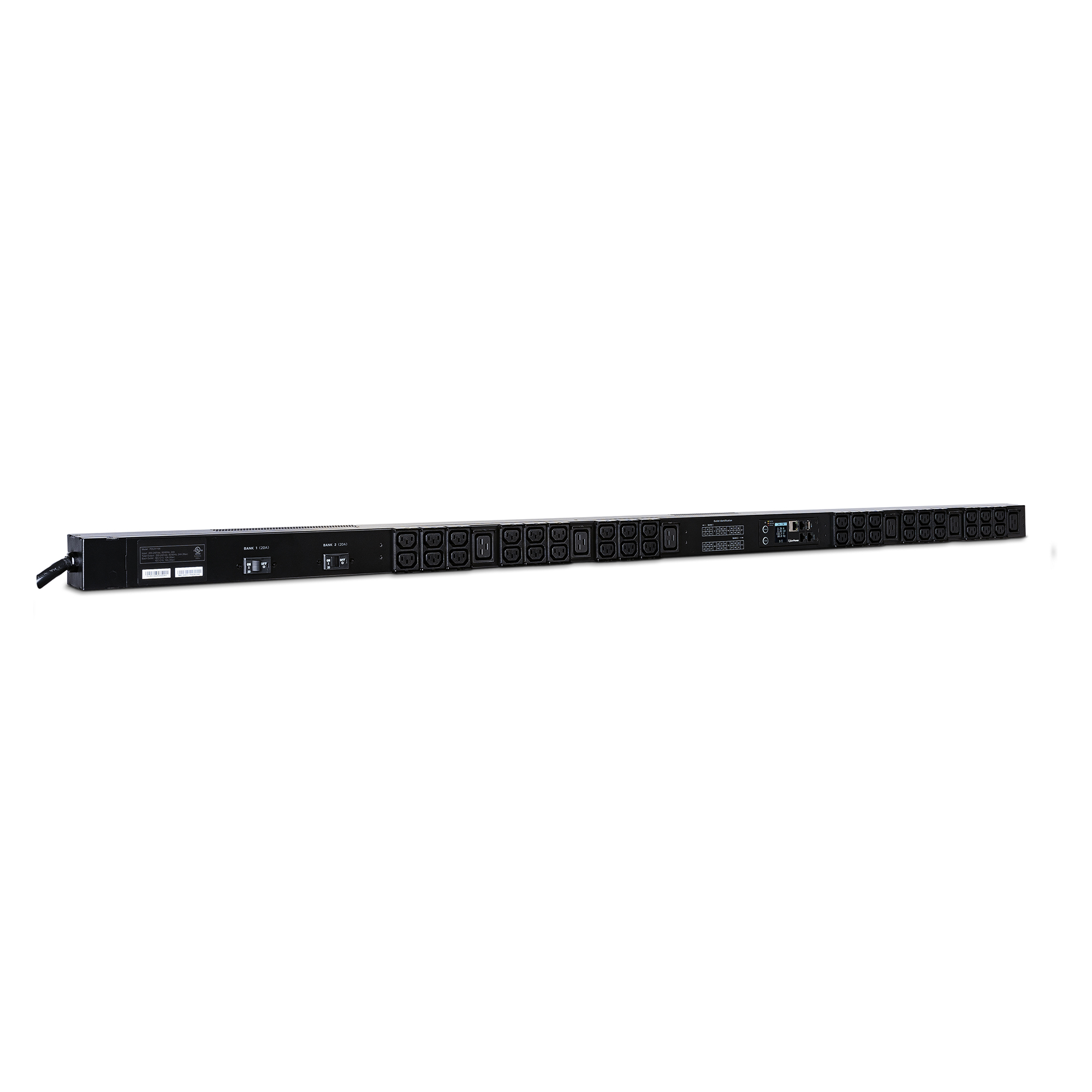

The CyberPower PDU31106, a 42-outlet (front), 0U rackmount monitored power distribution unit (PDU), provides 200-240V 30A output. PDU31106 distributes power to 36 IEC-320 C13 and 6 IEC-320 C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. Monitor power status over the network using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD screen.

The PDU31106 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.



Product Features:

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.



  • Switch-Free Design
    Safeguards against accidental power shut down.



  • CyberPower Management Console
    A hardware interface built into monitored and switched PDUs. It can perform tasks such as load monitoring and event logging.



  • Remote and Local Monitoring
    Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.



  • Automatic Event Notifications
    Provides immediate updates about power events via email, SMS text, or SNMP traps.



  • Upgradeable Firmware
    Downloadable firmware updates to improve programs that run the PDU.



  • Digital Display
    Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.



  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power to servers, equipment, and connected devices in demanding IT or industrial environments.



  • Long Input Power Cord
    The PDU is able to be placed where it’s needed because it reaches distant power sources.



  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.



  • Mounting Brackets
    Design allows PDU to be installed in a rack or horizontally or vertically, under a counter or via wall mount.



  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.



  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Input
Cord Length10 ft (3.0 m)
Derated Input Current24 A
Input Frequency Range50 Hz – 60 Hz
Input Plug TypeNEMA L6-30P
Maximum Input Current30A
Nominal Input Voltage200 – 240 VAC
PhaseSingle Phase
Output
Nominal Output Voltage200 – 240 VAC
Outlet Type36 – IEC-320 C13, 6 – IEC-320 C19
Outlets – # of Banks2
Outlets – Total42
Overload Protection20A x 2
USB Charge PortNo
Management & Communications
Environmental SensorOptional, via RJ45
Hardware Connection PortEthernet (RJ45), Serial (RJ45)
LCDMultifunction LCD
LED IndicatorsTx/Rx, LINK, Normal/Warning/Critical Status
Modular Expandability (Cascading)Yes, via RJ45
Monitoring LevelInput
ProtocolsIPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Software (Free Download)PowerPanel® Business
Upgradeable firmwareYes
Physical
Adjustable Mounting Brackets1 set
ColorBlack
Cord Retention Tray/Cord OrganizersYes
External Site Ground PinYes
Form Factors Supported0U Vertical Rackmount
Material of ConstructionMetal
Rack Height0U
Dimensions
Physical Dimensions – (WxHxD) (cm)5.59 x 166.37 x 4.83 (cm)
Physical Dimensions – (WxHxD) (in)2.2 x 65.5 x 1.9 (in)
Physical Dimensions – (WxHxD) (mm)56 x 1664 x 48 (mm)
Physical Weight (kg)5.6
Physical Weight (lb)12.35
Dimensions – Shipping
Shipping – Weight (kg)5.6
Shipping – Weight (lb)12.35
Shipping Dimensions – (WxHxD) (cm)18.49 x 189.51 x 11.51 (cm)
Shipping Dimensions – (WxHxD) (in)7.28 x 74.61 x 4.53 (in)
Shipping Dimensions – (WxHxD) (mm)184.91 x 1895.09 x 115.06 (mm)
Environmental
Operating Elevation0 – 11483 ft (0 – 3500 m)
Operating Relative Humidity0 – 95 % (non-condensing)
Operating Temperature32 – 140 °F (0 – 60 °C)
Storage Elevation0 – 49213 ft (0 – 14999 m)
Storage Temperature5 – 149 °F (-15 – 65 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL 60950-1, FCC Class A
Warranty
Extended Warranty OptionWEXT5YR-PDU1A
Product Warranty3 Year Limited Warranty
