Multifunction Timer 12~24VDC with, Auto garage door or gate closer, Guard awake timer, Pulse stretcher, Timed relay output, Timed pulse relay, Counter, Timer.

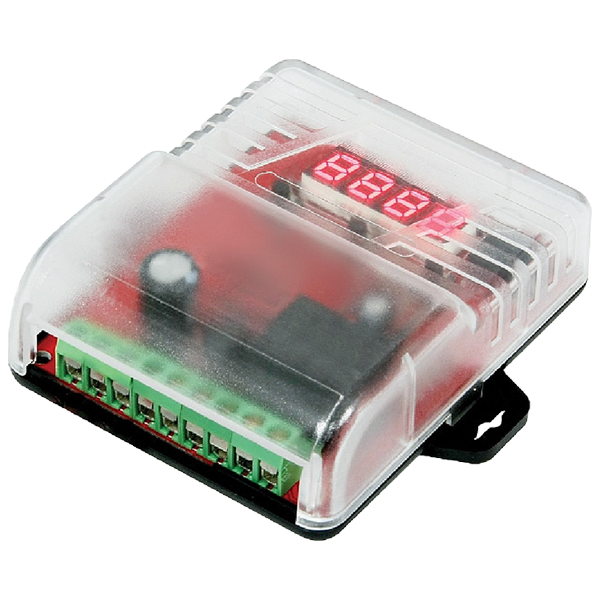

The ENFORCER SA-025MQ Multi-Function Programmable Timer saves time with 7 programmable modes for a variety of common situations. Settings are easily programmed using three pushbuttons and an LED display.

Features:

• 12~24VDC (auto-sensing) operation
• Low current draw
• 7 modes easily programmable with pushbuttons and LED display (auto door or gate closure, guard timer, pulse extender / false trigger avoidance, timed relay output, timed pulse relay output, input counter, input timer)
• Timer can be set to trigger a notification (red LED and/or buzzer) and/or a Form C relay output (10A@24VDC)
• Timer can be set from 1sec~11h 59min
• Can be triggered by N.O. pos. (+) or N.C. neg. (–) input, or by powering up the unit
• Relay can be programmed to trigger at the start or end of the timing cycle, or to toggle
• Relay can be programmed to pulse (0.5sec on / 0.5sec off) or steady on (1sec~11h 59min)
• Includes reset input (N.O.–) to manually reset cycle
