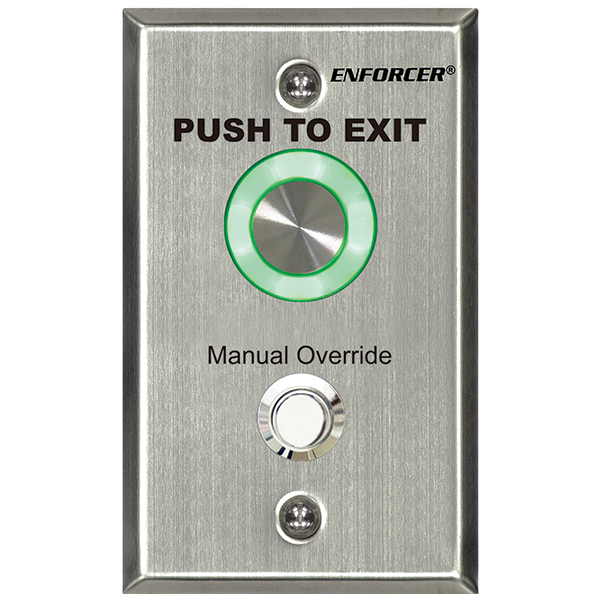

Piezoelectric pushbutton. Vandal-resistant, single-gang plate, mechanical override button. "PUSH TO EXIT" and "Manual Override" printed on plate. Programmable illumination surrounding the button: red or green.

Features:

• ETL UL294
• Piezoelectric request-to-exit plates for indoor or outdoor use, weatherproof (IP65)
• No moving parts for heavy duty use
• LED ring around button changes from green to red or red to green when the button is pressed
• Timed or toggle output
• SD-6176-SSVQ and SD-6276-SSVQ include separate manual override button for use in case of a power failure to the pushbutton
• Relay rated 2.5A@24VDC with two individually programmable outputs (NO/NC)
