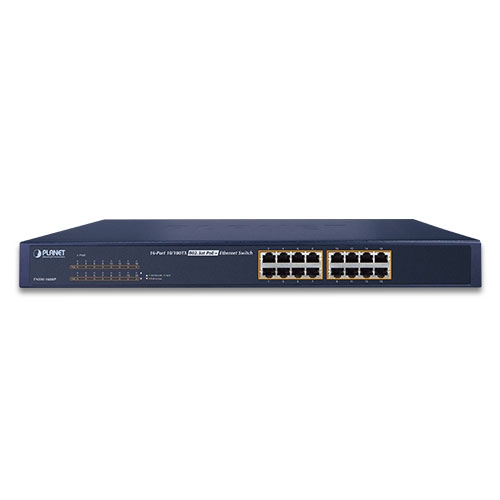

The FNSW-1600P is a 16-Port Fast Ethernet Switch with PoE capabilities.
Centralized Power Distribution for Fast Ethernet PoE Networking
To fulfill the needs of higher power required PoE network applications with 10/100Mbps transmission, PLANET FNSW-1600P’s PoE power output is upgraded from IEEE 802.3af PoE to IEEE 802.3at PoE+. It features 16 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE+ injector function that combines up to 30 watts of power output and data per port over one Cat5E/6 Ethernet cable. It is specifically designed for powered devices (PDs) such as PTZ cameras that consume high power.
Maximum Wire-speed Throughput
The FNSW-1600P features a high-performance switch architecture capable of providing the non-blocking 3.2Gbps switch fabric and wire-speed throughput as high as 2.38Mpps, thus increasing the bandwidth demand for LANs. Besides, the 802.3x full-duplex flow control function of the FNSW-1600P enables PDs and servers to be directly connected to the Switch for wire-speed packet transfer without the risk of packet loss.
Easy and Cost-effective Network Deployment
With the simultaneous transmission of data and power over Ethernet over a cable, the FNSW-1600P does not need extra cables and electrical outlets on the wall, ceiling or any unreachable place for extended network deployments. It thus helps to lower the installation costs, simplify the installation effort and eliminate the need for electricians. With a total power budget of 125 watts, the FNSW-1600P is ideal for small businesses and workgroups wanting to deploy a PoE network equipped with wireless access points, IP surveillance cameras and IP phones in any places easily and efficiently
Features:
- Ports: 16 10/100TX
- Type: Unmanaged
- PoE Ports: 16
- Standards: 802.3af/at
- PoE Power Budget: 125W
- Power Consumption: 133.3W/457.4BTU
- Throughput: 2.38Mpps@64 Bytes
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Hardware Specifications | |
| Copper Ports | 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| PoE Inject Port | 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16 |
| LED Indicators | System: Power(Green) Port 1 to Port 16: 10/100 LNK/ACT (Green) PoE-in-Use (Orange) |
| Switch Architecture | Store-and-Forward |
| Address Table | 8K entries, automatic source address learning and aging |
| Switch Fabric | 3.2Gbps/non-blocking |
| Throughput (packet per second) | 2.38Mpps@64 bytes |

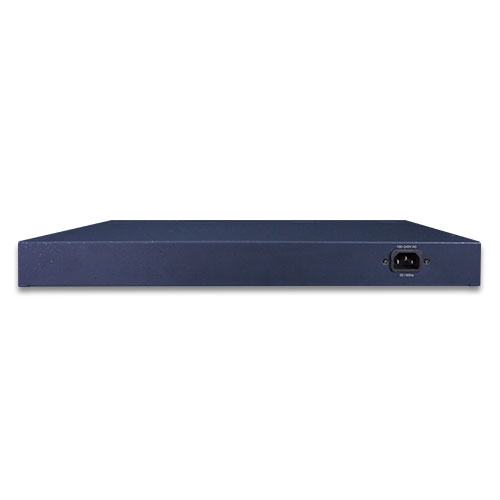

| Power Requirement | AC 100~240V, 50/60Hz, 2A max. |
| Power Consumption | Max. 133.3 watts/457.4 BTU |
| Dimensions (W x D x H) | 445 x 207 x 45 mm |
| Weight | 2330g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | Mid-span |
| PoE Power Output | Per port 52V DC ( max.30.8 watts) |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Power Budget | 125 watts |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
