Planet - GS-2240-48T4X - 48-port 10/100/1000T + 4-port 10G SFP+ Web Smart Switch
Planet - GS-2240-48T4X - 48-port 10/100/1000T + 4-port 10G SFP+ Web Smart Switch
Part number:
GS-2240-48T4X
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

For the growing Gigabit network and IoT (Internet of Things) demand, PLANET has launched a new-generation Web Smart 1/10 Gigabit Switch solution, the GS-2240 switch series, to meet the needs of enterprises, telecoms and campuses for a large-scale network deployment. The GS-2240-48T4X is a Layer 2 Web Smart Switch, which comes with 48 10/100/1000Mbps Gigabit Ethernet ports and 4 10G SFP+ uplink slots. The GS-2240 switch series also provides a quick, safe and cost-effective 1/10G network solution for small and medium-sized businesses.



Features:

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN- IP subnet-based VLAN- MAC-based VLAN- Protocol-based VLAN- Private VLAN
  • Supports Spanning Tree Protocol
  • - STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)
  • Supports Link Aggregation
  • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)
  • Provides port mirror (many-to-1)
  • Supports Ingress/Egress Rate Limit per port bandwidth control



Physical Port

  • 48 10/100/1000BASE-T Gigabit RJ45 copper ports
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 to RS232 DB9 console interface for basic management and setup


Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN- IP subnet-based VLAN- MAC-based VLAN- Protocol-based VLAN- Private VLAN
  • Supports Spanning Tree Protocol
  • - STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)
  • Supports Link Aggregation
  • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)
  • Provides port mirror (many-to-1)
  • Supports Ingress/Egress Rate Limit per port bandwidth control


Multicast

  • Supports IGMP snooping v1, v2 and v3
  • Querier mode support
  • IGMP router port


Security

  • DHCP snooping to filter distrusted DHCP messages
  • MAC security
  • - Static MAC address- MAC binding- MAC auto binding- Per port MAC address entries limitation
  • Storm control
  • - Broadcast, multicast, unknown-unicast


Management

  • IPv4 management
  • Switch management interface
  • - Web switch management- Telnet command line interface- Console command line interface- SNMP v1, v2c
  • System maintenance
  • - Firmware upload/download via HTTP- Configuration upload/download through web interface- Hardware reset button for system reboot or reset to factory default
  • Link Layer Discovery Protocol (LLDP)
  • Ping diagnostics
  • Trace-route
  • SNMP trap for interface linkup and linkdown notification
  • Log management
Hardware Specifications
Copper Ports48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
SFP/mini-GBIC Slots4 10GBASE-SR/LR SFP+ interface (XE1 to XE4)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Switch ArchitectureStore-and-Forward
Switch Fabric176Gbps/non-blocking
Switch Throughput@64Bytes130.95Mpps
Address Table16K entries
Shared Data Buffer1.5Mbytes
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame13K bytes
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
LEDPWR, SYS, 10/100, 1000, 10G

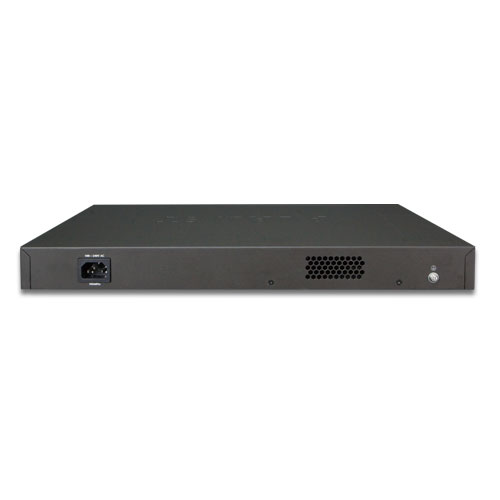

Power Requirements100~240V AC, 50/60Hz, auto-sensing
Dimensions (W x D x H)440 x 270 x 44 mm, 1U height
ESD ProtectionContact Discharge 4KV DC
Air Discharge 8KV DC
EnclosureMetal
Weight3969g
Power Consumption/ Dissipation45 watts (max.)/154 BTU
Layer 2 Functions
Port MirroringTX/RX/both
Many-to-1 monitor
VLAN802.1Q tagged-based VLAN
Up to 4000 VLAN groups, out of 4094 VLAN IDs
IP subnet-based VLAN
MAC-based VLAN
Protocol-based VLAN
Private VLAN
Link AggregationIEEE 802.3ad LACP and static trunk
Supports 32 groups with 8 ports per trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IGMP SnoopingIGMP snooping v1, v2, v3, up to 255 multicast groups
IGMP querier mode support
SecurityDHCP snooping
Static MAC address
MAC binding
MAC auto binding
Per port MAC address entries limitation
Broadcast, multicast, unknown unicast storm control
Management Functions
Basic Management InterfacesWeb browser, Telnet, console
SNMP v1, v2c
Firmware upgrade by HTTP protocol through Ethernet network
System log
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Generic Traps
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE, LVD
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1ab LLDP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Name
Description
Size
Downloads
File
Datasheet
1.4mb
