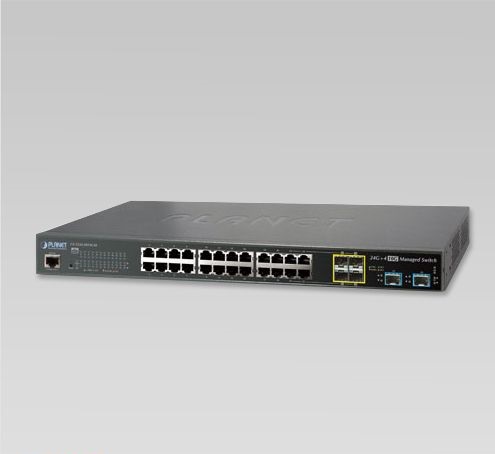

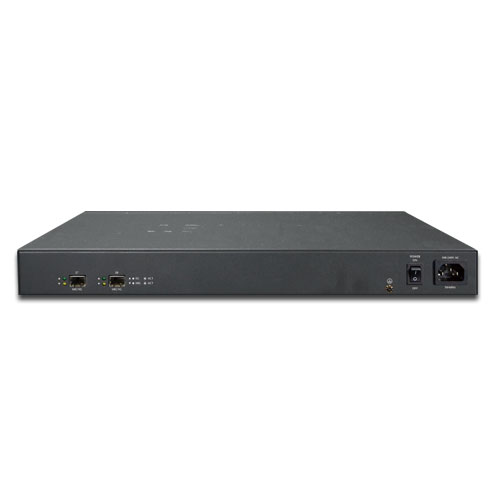

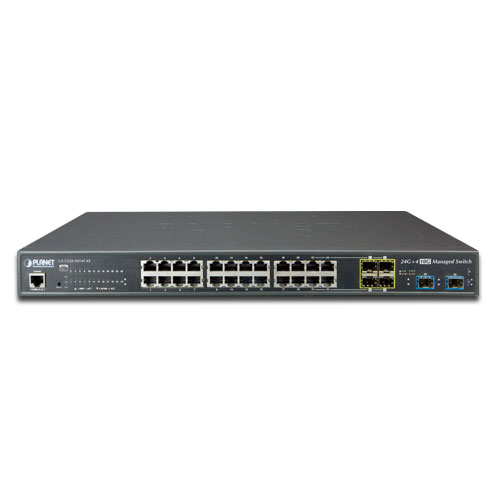

Planet - GS-5220-20T4C4X - L2+ 24-Port 10/100/1000T + 4-Port Shared SFP + 4-Port 10G SFP+ Managed Switch
Planet - GS-5220-20T4C4X - L2+ 24-Port 10/100/1000T + 4-Port Shared SFP + 4-Port 10G SFP+ Managed Switch
Part number:
GS-5220-20T4C4X
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

The GS-5220-20T4C4X Layer 2+ Managed Gigabit Switch provide 24 10/100/1000Mbps Gigabit Ethernet ports, 4 shared Gigabit SFP slots and 4 10G SFP+ uplink slots.



Features:

  • Ports: 24 10/100/1000TX Shared 4 10/100/1000Mbps SFP + 4 10G SFP+
  • Type of Switch: Managed
  • Switch Fabric: 128Gbps/ non-blocking
  • Power Consumption: 43W
  • Throughput: 95.2Mpps @ 64Bytes
  • Operating Temperature: 0 to 50°C
  • TAA Compliant
Hardware Specifications
Copper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
10/100/1000Mbps/SFP Combo Interfaces4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (mini-GBIC) supports 100/1000Mbps dual mode DDM, shared with Port-21 to Port-24
10Gbps Fiber Uplink Ports4 1/10GBASE-SR/LR SFP+ slots
Console1 RJ45 serial port (115200, 8, N, 1)
Switch ArchitectureStore-and-Forward
Switch Fabric128Gbps/non-blocking
Throughput95.2Mpps@64 bytes
Address Table16K entries, automatic source address learning and aging
Shared Data Buffer4 megabits
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame9K bytes
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
LEDSystem:
SYS (Green)
AC (Green)
DC (Green) (GS-5220-20T4C4XR Only)
Fan Alert (Red)
Ethernet Interfaces (Port 1 to Port 24):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
1000 (Green), 100 (Orange)
1/10G SFP+ Interfaces (Port 25 to Port 28):
1000 (Green), 10G (Orange)
Power RequirementsGS-5220-20T4C4X: 100~240V AC, 50/60Hz, 1A
GS-5220-20T4C4XR: 100-240V AC, 50/60Hz, 1A
48V DC @ 2A, Range: 36 ~ 60V
Power Consumption (Full Loading)43 watts
ESD Protection6KV DC
Dimensions (W x D x H)440 x 200 x 44.5 mm, 1U high
Weight2850g
Layer 2 Management Function
Basic Management InterfacesConsole; Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSH, SSL, SNMP v3
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
VLAN802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP/Static Trunk
Supports 10 groups of 16-Port trunk
QoSTraffic classification based, strict priority and WRR
8-level priority for switching
– Port number
– 802.1p priority
– 802.1Q VLAN tag
– DSCP/TOS field in IP packet
IGMP SnoopingIGMP (v1/v2/v3) Snooping, up to 255 multicast Groups
IGMP Querier mode support
MLD SnoopingMLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support
Access Control ListIP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth ControlPer port bandwidth control
Ingress: 500Kb~80Mbps
Egress: 64Kb~80Mbps
SNMP MIBsRFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
PoE Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
Environments
OperatingTemperature: 0 ~ 50 degrees C for AC power input
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
