Smart Media Converter

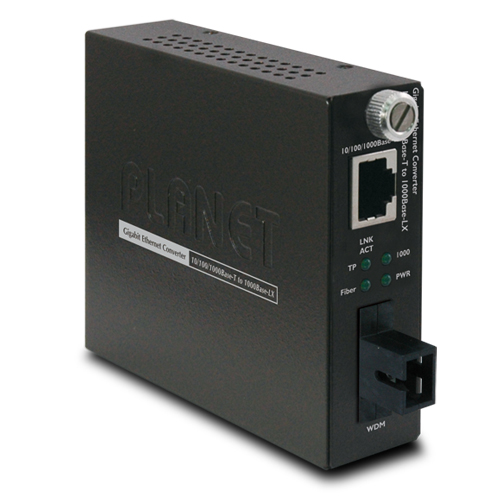

The GST-806B60 is a Bi-Directional Smart Gigabit Media Converter that showcases plug and play technology and smart media conversion. The GST-806B60 lengthens the distance of communication with Gigabit performance through the fiber optic cable. The unit features media conversion between 10/100/1000Base-T and 1000Base-LX interfaces and operate for a variety of fiber optic applications.
The GST-806B60 offers Auto MDI/MDI-X on the DIP switch and TP to efficiently configure smart functions. The unit also features functions such as the Link Loss Carry Forward function which operates with the Link Loss Return feature. These functions manage the network and tell administrators issues with the media link to provide for efficient network solutions.
Managing the converter requires Planet’s MC-1610MR/MC-1610MR48, a 19-inch Web Smart 16-Slots Media converter chassis from PlanetTechUSA.com to remotely monitor its status through the management-interface of the chassis. The chassis allows for local and remote management through the RS-232 console and web interface. The GST-806B60 features media conversion between 10/100/1000Base-T and 1000Base-LX interfaces.
Features:
- Speed: 10/100/1000TX to 1000FX
- Mode: Single Mode WDM
- Wavelength: TX: 1550nm RX: 1310nm
- Distance: 60km
- Fiber Connection: SC
- TAA Compliant
| Hardware Specifications | |
| Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX IEEE 802.3ah OAM |
| Ports | 1 x 10/100/1000Base-T port 1 x 1000Base-SX/LX port |
| Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
| Optic Interface | GST-802 / GST-802S: SC GST-805A: SFP GST-806A15 / GST-806B15 / GST-806A60 / GST-806B60: WDM |
| Optic Wavelength | GST-802: 850nm GST-802S: 1310nm GST-805A: N/A GST-806A15: TX:1310nm / RX:1550nm GST-806B15: TX:1550nm / RX:1310nm GST-806A60: TX:1310nm / RX:1550nm GST-806B60: TX:1550nm / RX:1310nm |
| Launch Power(dBm) Max. | GST-802: -4 dBm GST-802S: -3 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: +5 dBm GST-806A60: -3 dBm GST-806B60: +4 dBm |
| Launch Power(dBm) Min. | GST-802: -9.5 dBm GST-802S: -9.5dBm GST-805A: N/A GST-806A15: -9 dBm GST-806B15: 0 dBm GST-806A60: -9 dBm GST-806B60: -1 dBm |
| Receive Sensitivity | GST-802: -13.5 dBm GST-802S: -14.4 dBm GST-805A: N/A GST-806A15: -21 dBm GST-806B15: -25 dBm GST-806A60: -21 dBm GST-806B60: -25 dBm |
| Maximum Input power | GST-802: -18 dBm GST-802S: -20 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: -3 dBm GST-806A60: -2 dBm GST-806B60: -2 dBm |
| Speed Twisted-pair | 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-Duplex |
| Speed Fiber-optic | 2000Mbps for Full-Duplex |
| Cable Twisted-pair | 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m 100Base-TX: 2-pair UTP Cat. 5, up to 100m 1000Base-T: 4-pair STP Cat 5 up to 100m |
| Cable Fiber-optic Cable | – 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. – 9/125μm single-mode cable, provides long distance for 10/20/30/40/50/70/120km (vary on fiber transceiver or SFP module) |
| LED Indicator | – PWR (Green) – TP: 1000, LINK/ACT – Fiber: LINK/ACT |
| DIP Switch | Fiber (Auto-negotiation / Manual), LFP (Disable / Enable) |
| Power Consumption | 3.1 Watts / 10BTU (maximum) |
| OAM | TS-1000, IEEE 802.3ah terminal |
| Jumbo Frame size | 9K |
| Power Input | DC 5V / 2A |
| Dimensions (W x D x H) | 81 x 94 x 26 mm |
| Operating Environment | Temperature: 0~50 degrees C; Humidity: 5~90% non-condensing |
| Storage Environment | Temperature: -40~70 degrees C; Humidity: 5~90% non-condensing |
| Emissions | FCC Class A, CE Class A |
