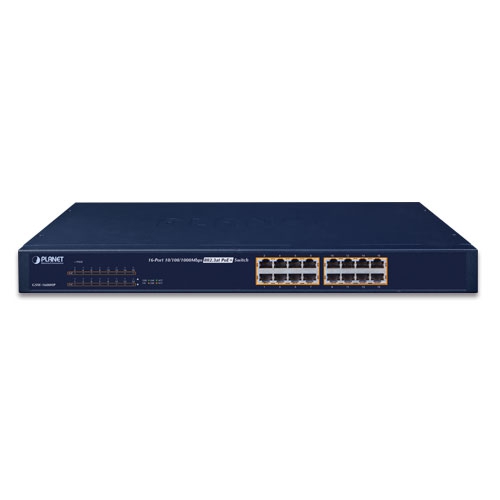

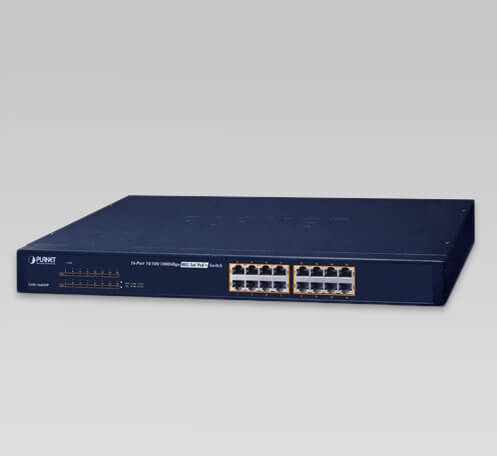

The GSW-1600HP is a 16-port Ethernet Switch with PoE capabilities.
Centralized Power Management for Gigabit Ethernet PoE Networking
To facilitate high power PoE network applications with Gigabit speed transmission, the GSW-1600HP 16-Port Gigabit High Power over Ethernet Switch features high performance Gigabit IEEE 802.3af PoE (Up to 15.4W) and IEEE 802.3at HighPower PoE (Up to 30.8W) capabilities on all ports. By offering reliable switching technology and advanced networking features, the GSW-1600HP optimizes the installation and power management of network devices such as wireless access points (AP), VoIP phones, and security video cameras. It also eliminates time and cost of deployment by integrating power and data switching into one unit, and freeing network devices from restrictions of power outlet locations and the additional AC wiring
Features:
- Ports: 16 10/100/1000TX
- Type: Unmanaged
- PoE Ports: 16
- Standards: 802.3af/at
- Total PoE Budget: 220W
- Power Consumption: 260W/885BTU
- Throughput: 23.8Mpps@64Bytes
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Hardware Specifications | |
|---|---|
| Hardware Version | 2 |
| 10/100/1000BASE-T Copper Ports | 16 auto-MDI/MDI-X ports |
| 802.3af / 802.3at PoE Injector Port | 16 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 32Gbps/non-blocking |
| Switch Throughput@64 bytes | 23.8Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
| LED | System: Power (Green) 10/100/1000T RJ45 Interfaces: 1000 LNK / ACT (Green) 10/100 LNK/ACT (Orange) PoE (Orange) |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
| Enclosure | Metal |
| Weight | 2.65kg |

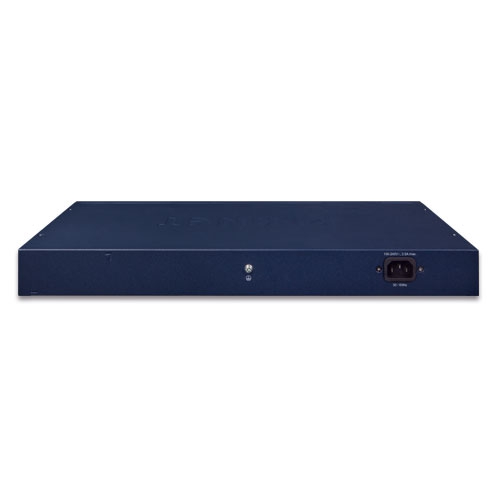

| Power Requirements | AC 100~240V, 50/60Hz, 3.5A max. |
| Power Consumption/Dissipation | Max. 260 watts/885 BTU |
| Thermal Fan | 2 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span: 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| PoE Power Budget | 220 watts |
| Number of PDs, 7 watts | 16 |
| Number of PDs, 15.4 watts | 14 |
| Number of PDs, 30 watts | 7 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy-Efficient Ethernet |
| Environment | |
| Operating | Temperature:0 ~ 50 degrees C Relative Humidity:5 ~ 95% (non-condensing) |
| Storage | Temperature:-10 ~ 70 degrees C Relative Humidity:5 ~ 95% (non-condensing) |
