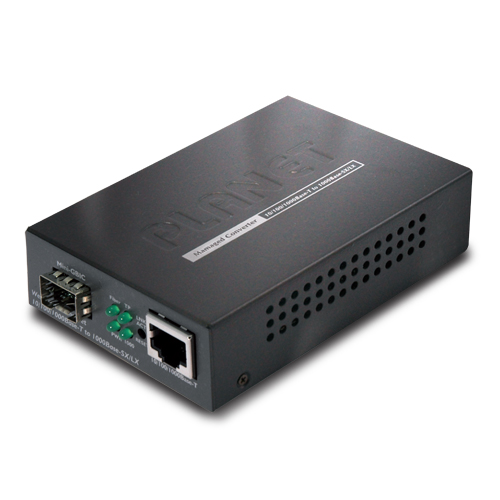

SFP Gigabit Converter
The GT-905A allows for operation with various 10/100/1000Mbps Ethernet equipment through the RJ-45 port. This unit offers dependable Gigabit fiber performance and allows conversion between 10/100/1000Base-T and 100/1000Base-FX network. The Ethernet signal permits segments to connect affordably with ease.
Dependable Web Management Interface
For efficient management, the GT-905A Managed Gigabit Ethernet Media Converter is equipped with remote Web / SNMP interface. With its built-in Web-based management, PLANET’s GT-90x series acts as an easy-to-use, platform-independent management and configuration facility. The GT-905A also supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. Moreover, the TS-1000/802.3ah OAM protocol (operations, administration, and maintenance) supported helps remote device be managed and monitored by the GT-905A.
Enhanced Management Features
The GT-905A can be simply programmed for advanced management functions. These functions include IP address configuration, DHCP Client function, port configuration, converter configuration, 802.1Q Tag VLAN, Q-in-Q VLAN, Ingress/Egress bandwidth control, QoS and Layer protocol filter, broadcast storm and bandwidth control, to make enhanced bandwidth features even more simple.
Simple Installation
The GT-905A is compliant with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 100/1000Base-FX. In addition, installation is simple and can operate efficiently independently or as a module to a Media Converter Chassis (models MC-700, MC-1000 and MC-1500, from Planet Technology). A chassis has the ability to provide DC power to media converter units.
The GT-905A offers dependable Gigabit fiber performance and allows conversion between 10/100/1000Base-T and 100/1000Base-FX network.
- Speed: 10/100/1000T to 100/1000FX SFP
- Fiber Connection: LC
- TAA Compliant
| Hardware Specifications | |
| Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX |
| Ports | 1 x 10/100/1000Base-T port, 1 x 100/1000Base-FX port |
| Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
| Optic Interface | GT-902 / GT-902S: SC GT-905A: SFP GT-906A15 / GT-906B15 / GT-906A60 / GT-906A60: WDM |
| Optic Wavelength | GT-902: 850nm GT-902S: 1310nm GT-905A: N/A GT-906A15: TX:1310nm / RX:1550nm GT-906B15: TX:1550nm / RX:1310nm GT-906A60: TX:1310nm / RX:1550nm GT-906B60: TX:1550nm / RX:1310nm |
| Launch Power(dBm) Max. | GT-902: -4 dBm GT-902S: -3 dBm GT-905A: N/A GT-906A15: -3 dBm GT-906B15: +5 dBm GT-906A60: -3 dBm GT-906B60: +4 dBm |
| Launch Power(dBm) Min. | GT-902: -9.5 dBm GT-902S: -9.5dBm GT-905A: N/A GT-906A15: -9 dBm GT-906B15: 0 dBm GT-906A60: -9 dBm GT-906B60: -1 dBm |
| Receive Sensitivity | GT-902: -13.5 dBm GT-902S: -14.4 dBm GT-905A: N/A GT-906A15: -21 dBm GT-906B15: -25 dBm GT-906A60: -21 dBm GT-906B60: -25 dBm |
| Maximum Input power | GT-902: -18 dBm GT-902S: -20 dBm GT-905A: N/A GT-906A15: -3 dBm GT-906B15: -3 dBm GT-906A60: -2 dBm GT-906B60: -2 dBm |
| Speed Twisted-pair | 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-Duplex |
| Speed Fiber-optic | 2000Mbps for Full-Duplex |
| Cable Twisted-pair | 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m 100Base-TX: 2-pair UTP Cat. 5, up to 100 m 1000Base-T: 4-pair STP Cat 5 up to 100m |
| Cable Fiber-optic Cable | – 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. – 9/125μm single-mode cable, provides long distance for 10/15/20/30/40/50/60/70/120km (very on fiber transceiver or SFP module) |
| LED Indicator | – PWR – TP LINK/ACT, 1000 – Fiber LINK/ACT |
| Power Consumption | 4 watts/ 13 BTU (maximum) |
| Power Input | DC 5V / 2A |
| Dimensions (W x D x H) | 93 x 70 x 26 mm |
| Operating Environment | Temperature: 0~50 degrees C; Humidity: 5~90% non-condensing |
| Storage Environment | Temperature: -40~70 degrees C; Humidity: 5~90% non-condensing |
| Emissions | FCC Class A, CE Class A |
