Industrial IP67 Switch

Rugged Enough to Withstand Interferences for Smooth Operation

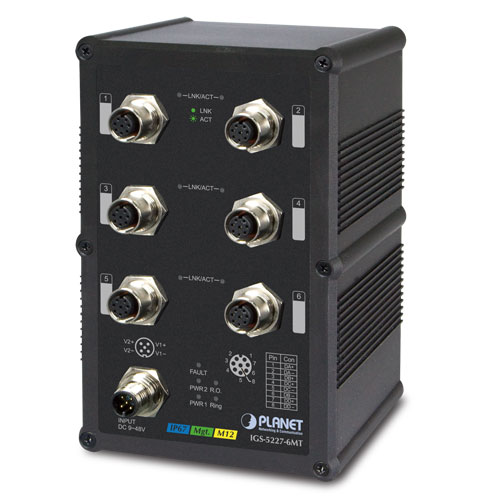

PLANET’s IGS-5227-6MT Industrial IP67-rated Managed Ethernet Switch comes with 6 10/100/1000T ports and static Layer 3 routing. The IP67-rated industrial case provides a high level of immunity against electromagnetic interference and heavy electrical surges which can be found on plant floors or in curb-side traffic control cabinets. The IGS-5227-6MT can be easily mounted on a DIN rail or wall taking up less space. It provides a quick, safe, cost-effective and high-performance Ethernet network solution for smaller businesses using IP security surveillance systems.

Waterproof and Dustproof M12 Ethernet Connector

The IGS-5227-6MT is equipped with a 6-port 10/100/1000BASE-T auto-negotiation waterproof and dustproof M12 connectors. The M12 connectors provide a tight and strong connection that guarantees stable Ethernet operation performance under high vibration and shock environment. The switch has an industrial protection rating of IP67 capable to withstand humidity, dirt, dust, shock, vibrations, heat and cold. The IGS-5227-6MT is able to protect itself from dust and water as well as operate under the temperature range from -40° to 75°C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

Dual Power Input for High Availability Network System

The IGS-5227-6MT features a strong dual power input system (Dual 9V~48V DC, 24V AC) which is incorporated into a customer’s automated network to enhance system reliability and uptime. For example, if DC Power 1 fails to work, the hardware failover function will be automatically activated to keep powering the IGS-5227-6MT via DC Power 2 without any loss of operation.

SMTP/SNMP Trap Event Alert

Though most NVR and camera management softwares offer SMTP email alert function, the IGS-5227-6MT further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection or loss of power.

Featuring Fast Recovery for Critical Network Applications

The switch supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network the recovery time of a data link can be as fast as 20ms.

IPv6/IPv4 Dual Stack

Supporting both IPv6 and IPv4 protocols, the IGS-5227-6MT helps data centers, campuses, telecoms, and more to experience the IPv6 era. This creates a low investment as its network facilities do not t0 be replaced or overhauled if the IPv6 FTTx edge network is set up.

Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

The IGS-5227-6MT not only provides ultra high transmission performance, and excellent Layer 2 and Layer 4 technologies, but also Layer 3 IPv4/IPv6 VLAN routing. This feature allows crossing over of different VLANs and different IP addresses for the purpose of having a highly-secure, flexibly-managed and simple networking application.

Robust Layer 2 Features

The IGS-5227-6MT can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. Via the link aggregation of supporting ports, the IGS-5227-6MT allows the operation of a high-speed trunk to combine with multiple fiber ports and support fail-over as well.

Powerful Security

The IGS-5227-6MT offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user, and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The IGS-5227-6MT also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Excellent Traffic Control

The IGS-5227-6MT is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS feature includes wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.

Efficient and Secure Management

With built-in Web-based management interface, the IGS-5227-6MT L2+ Managed Switch offers an easy-to-use, platform-independent management and configuration facility which includes Web and SNMP management interfaces. The SNMP can be managed via any management software based on the standard of SNMP Protocol. For reducing product learning time, it offers Cisco-like command via Telnet and customer does not need to learn new console command. Moreover, it also offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.
