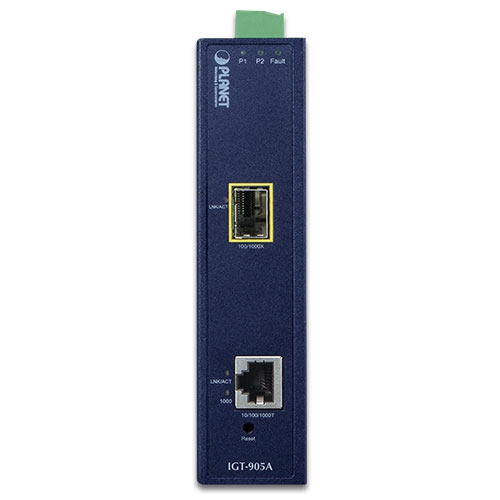

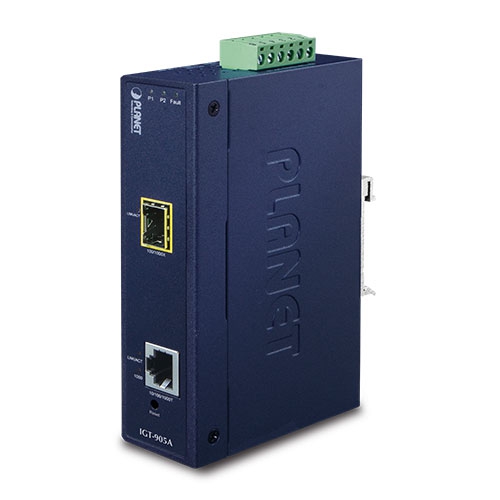

SFP Gigabit Media Converter
The IGT-905A from Planet Technology offers efficient converters that converts data between 10/100/1000Base-T and 100/1000Base-FX network, and allows the ability for remote monitoring and management.
This series features flexibility on the RJ-45 port with various types of 10/100/1000Mbps Ethernet Media. The series features stable Gigabit fiber performance. It has the ability to issue status reports that allow users to manage and monitor networks. In addition, the IGT-905A permits management and features a remote web SNMP, or Simple Network Management Protocol.
The IGT-905A is a user friendly management and configuration unit that can be managed simply with standard based software that supports SNMP.
The unit showcases an efficient ability to monitor remote devices with the innovative TS-1000/802.3ah OAM protocol. Units can be efficiently configured to permit enhanced management features such as IP addresses, configuration of port or converters, Layer 2 protocol filter, Ingress/Egress bandwidth control to expand bandwidth use, DHCP Client function, 802.1Q Tag VLAN, Q-in-Q VLAN, QoS, OAM control, and broadcast storm control.
The configuration features are essential for industrial Ethernet networks and real-time control systems.
The IGT-905A converts data between 10/100/1000Base-T and 100/1000Base-FX network, and allows the ability for remote monitoring and management.
- Speed: 10/100/1000T to 100/1000FX SFP
- Fiber Connection: LC
- Operating Temperature: -30° to 75°C
- TAA Compliant
SFP Gigabit Media Converter
The IGT-905A from Planet Technology offers efficient converters that converts data between 10/100/1000Base-T and 100/1000Base-FX network, and allows the ability for remote monitoring and management.
This series features flexibility on the RJ-45 port with various types of 10/100/1000Mbps Ethernet Media. The series features stable Gigabit fiber performance. It has the ability to issue status reports that allow users to manage and monitor networks. In addition, the IGT-905A permits management and features a remote web SNMP, or Simple Network Management Protocol.
The IGT-905A is a user friendly management and configuration unit that can be managed simply with standard based software that supports SNMP.
The unit showcases an efficient ability to monitor remote devices with the innovative TS-1000/802.3ah OAM protocol. Units can be efficiently configured to permit enhanced management features such as IP addresses, configuration of port or converters, Layer 2 protocol filter, Ingress/Egress bandwidth control to expand bandwidth use, DHCP Client function, 802.1Q Tag VLAN, Q-in-Q VLAN, QoS, OAM control, and broadcast storm control.
The configuration features are essential for industrial Ethernet networks and real-time control systems.
| Hardware Specifications | |
| Copper Interface | 1 x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port |
| Optic Interface | IGT-902T: SC IGT-902TS: SC IGT-905A: SFP |
| Optical Mode | IGT-902T: Multi-mode IGT-902TS: Single mode IGT-905A: Vary on module |
| Optic Wavelength | IGT-902T: 850nm IGT-902TS: 1310nm IGT-905A : Vary on module |
| Launch Power(dBm) | MAX. IGT-902T: -4 dBm IGT-902TS: -3 dBmMin. IGT-902T: -9.5 dBm IGT-902TS: -9.5 dBm |
| Receive Sensitivity | IGT-902T: -13.5 dBm IGT-902TS: -14.4 dBm |
| Maximum Input power | IGT-902T: -18 dBm IGT-902TS: -20 dBm |
| Speed | Twisted-pair 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-DuplexFiber-optic 2000Mbps for Full-Duplex |
| Cable | Twisted-pair 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m 100Base-TX: 2-pair UTP Cat. 5, up to 100 m 1000Base-T: 4-pair STP Cat 5,6 up to 100mFiber-optic Cable 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. 9/125μm single-mode cable, provides long distance for 10/15/20/30/40/50/60/70/120km (vary on fiber transceiver or SFP module) |
| LED indicator | Power: P1, P2, Fault TP: LNK/ACT, 1000 Fiber: LNK/ACT |

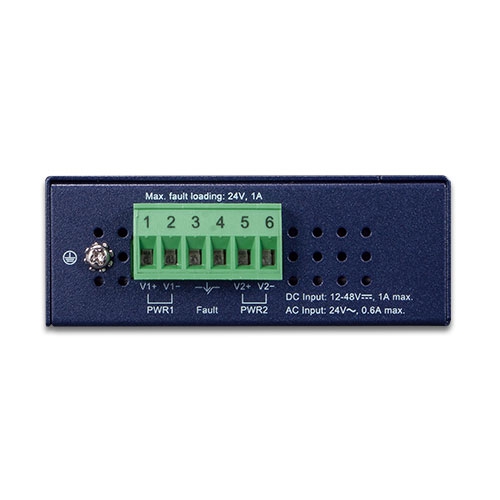

| Power Input | DC 12V to 48V Redundant power input with polarity reverse protection |
| Power Consumption | 7.9 Watts/ 27 BTU (maximum) |
| Dimensions (W x D x H) | 135 x 85 x 32 mm |
| Weight | 423g |
| Installation | DIN rail kit and wall mount ear |
| Management and Layer 2 Features | |
| Management Interface | WEB / SNMP v1, v2c |
| Port Configuration | Port disable/enable Auto negotiation 10/100/1000Mbps full and half duplex mode selection. Flow Control disable / enable. Bandwidth control on each port. |
| VLAN | IEEE 802.1q Tagged based VLAN , 4K VLAN ID, up to 16 VLAN groups Q-in-Q VLAN |
| QoS | Traffic classification based on: 802.1p priority IP DSCP field in IP Packet IP Address |
| Bandwidth Control | Ingress / Egress bandwidth control Rate range: 512kbps to 500Mbps Storm control Broadcast / Multicast / Unknown Unicast packet |
| Standard Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX / FX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-SX / LX Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
| Environmental Specifications | |
| Temperature | Operating: -30~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
