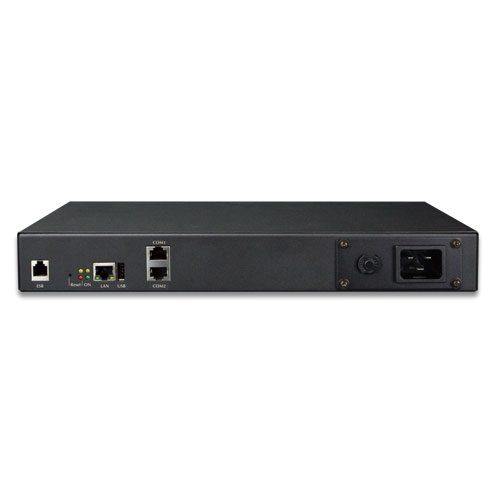

IP-based 4-port Switched Power Manager (AC 100-240V, 16A max.) - EU Type

Hardware

• Desktop size design
• IEC outlet models
• 4 power outlets that support real-time current image monitoring
• 4 LEDs show power status for each power outlet
• LCD panel displays current, max. alarm and network information
• Buzzer will ring when total power consumption value exceeds set value
• Circuit breaker can avoid damage that is caused by overload
• Versatile sensors supported through environmental sensor box (ESB) inputs

Power Distribution

• Maximum Amps/Inlet: IEC 16A for 1 inlet
• Maximum Amps for 4 Outlets: IEC 16A for 4 outlets
• Full Frequency Range: 50~60Hz
• Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power

Remote Access

• Remote power control via TCP/IP and a built-in 10/100Mbps Ethernet port
• Multi browsers support (IE, Google, Firefox, Safari, Opera, Netscape)

Management

• Provides Install Wizard to ease users' setting of parameters
• Events notification by sending pop-up message, trap, SMS or e-mail
• Supports Management Information Base (MIB) files for SNMP
• Naming support for outlets
• Power-on sequencing intelligently turns on/off devices based on event occurrence or planned schedule
• Voltage, current, wattage and total kWh report
• Sets over-current watchdog for power outlet
• External UPS can be installed for a possible power outage

Security

• Web page supports 1024-bit SSL security encryption transmission
• Supports Secure Socket Layer V3 and Secure Shell V1 protocols
• Administrator and multiple users with password protection for double-layer security
• IP Filtering -- Address-specific IP security masks to prevent unauthorized access
